Rippa-Europe

RS 03

RS 03

Regular price 4.990,00 EUR
Regular price Sale price 4.990,00 EUR
Sale Sold out
excl. MwSt

In stock

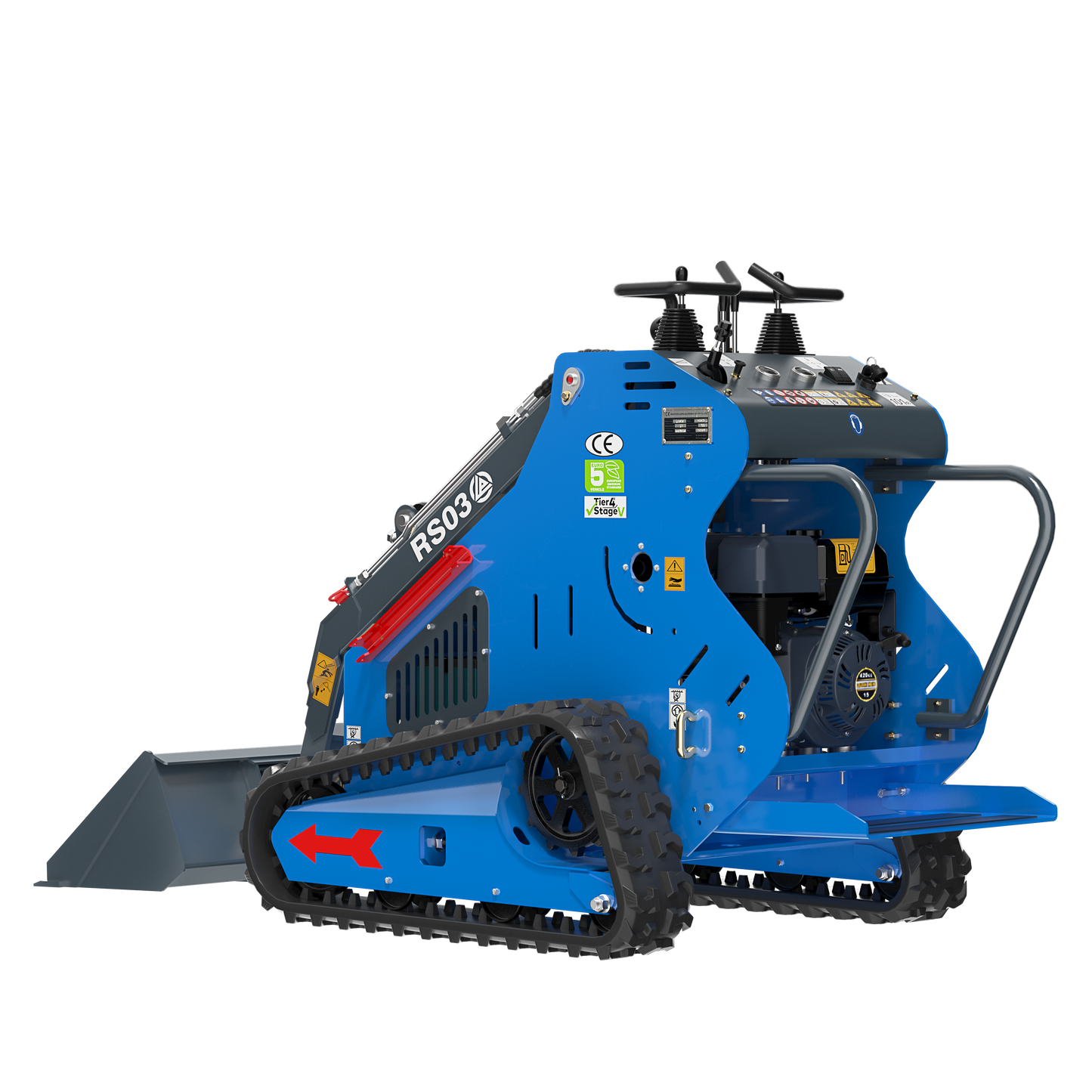

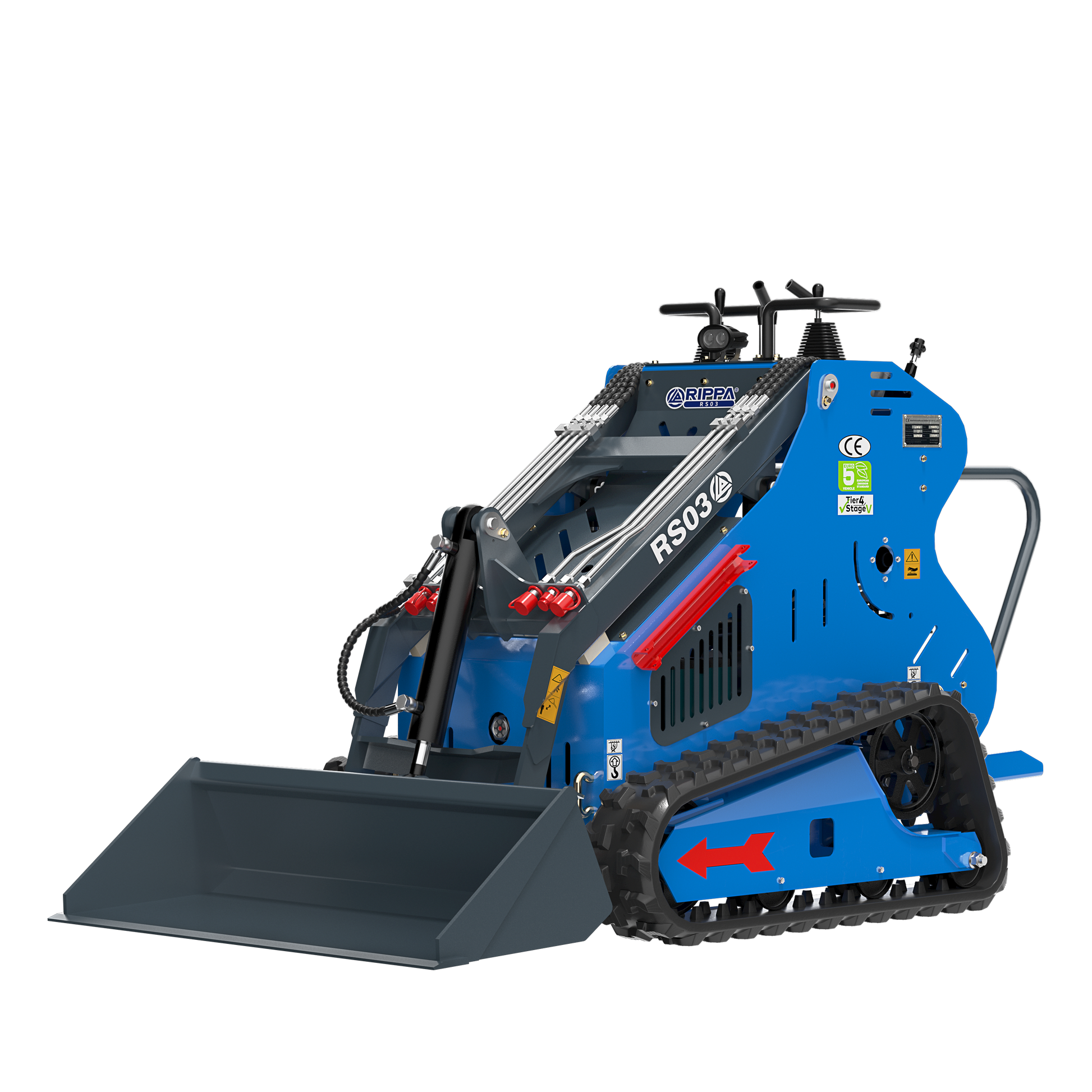

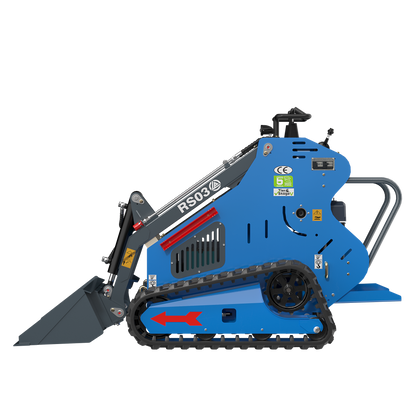

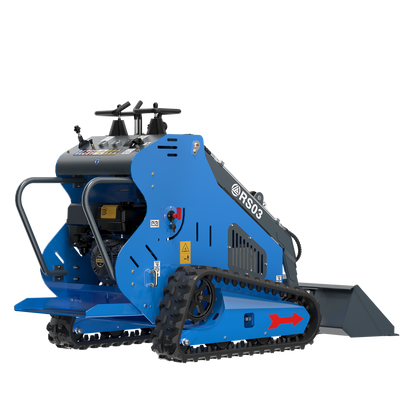

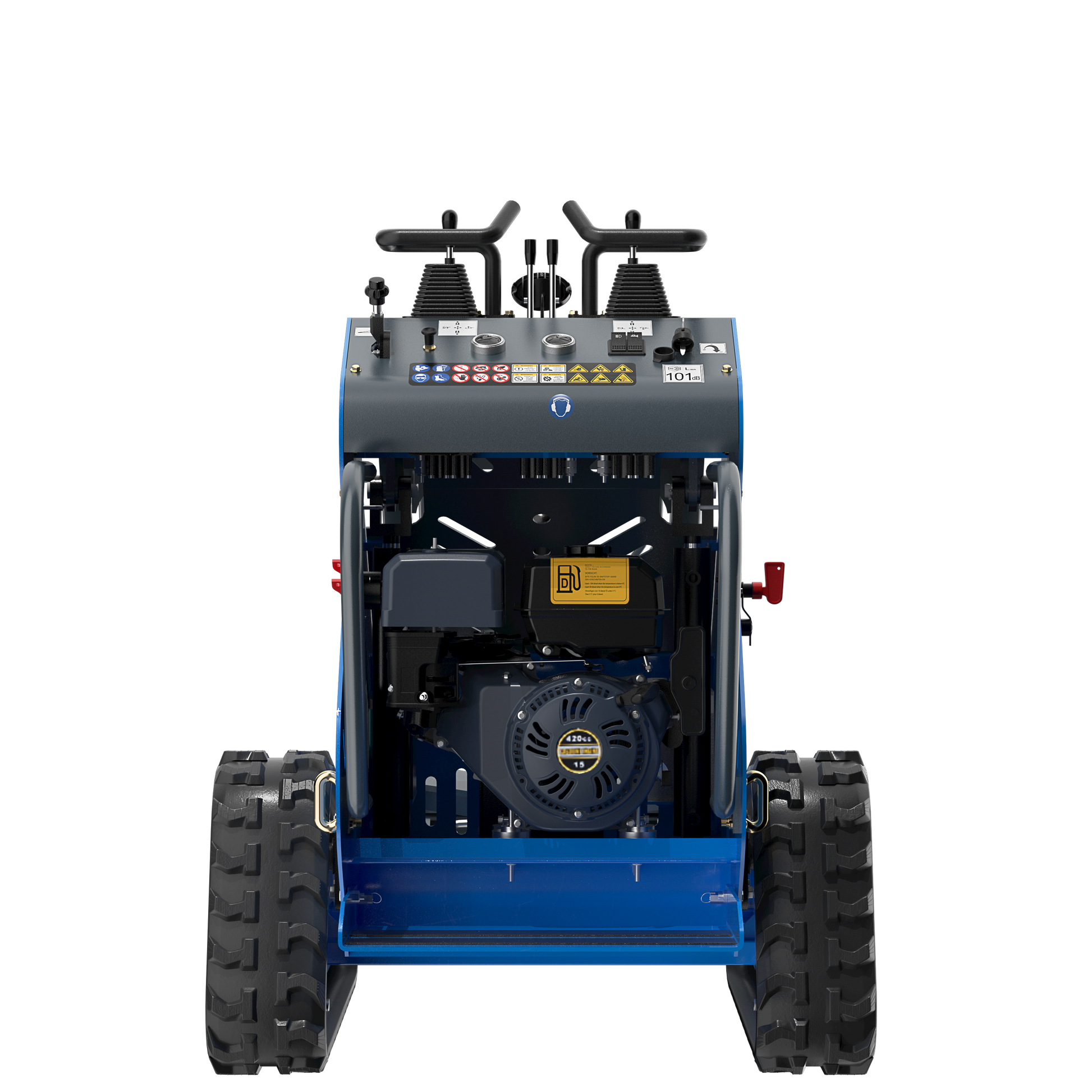

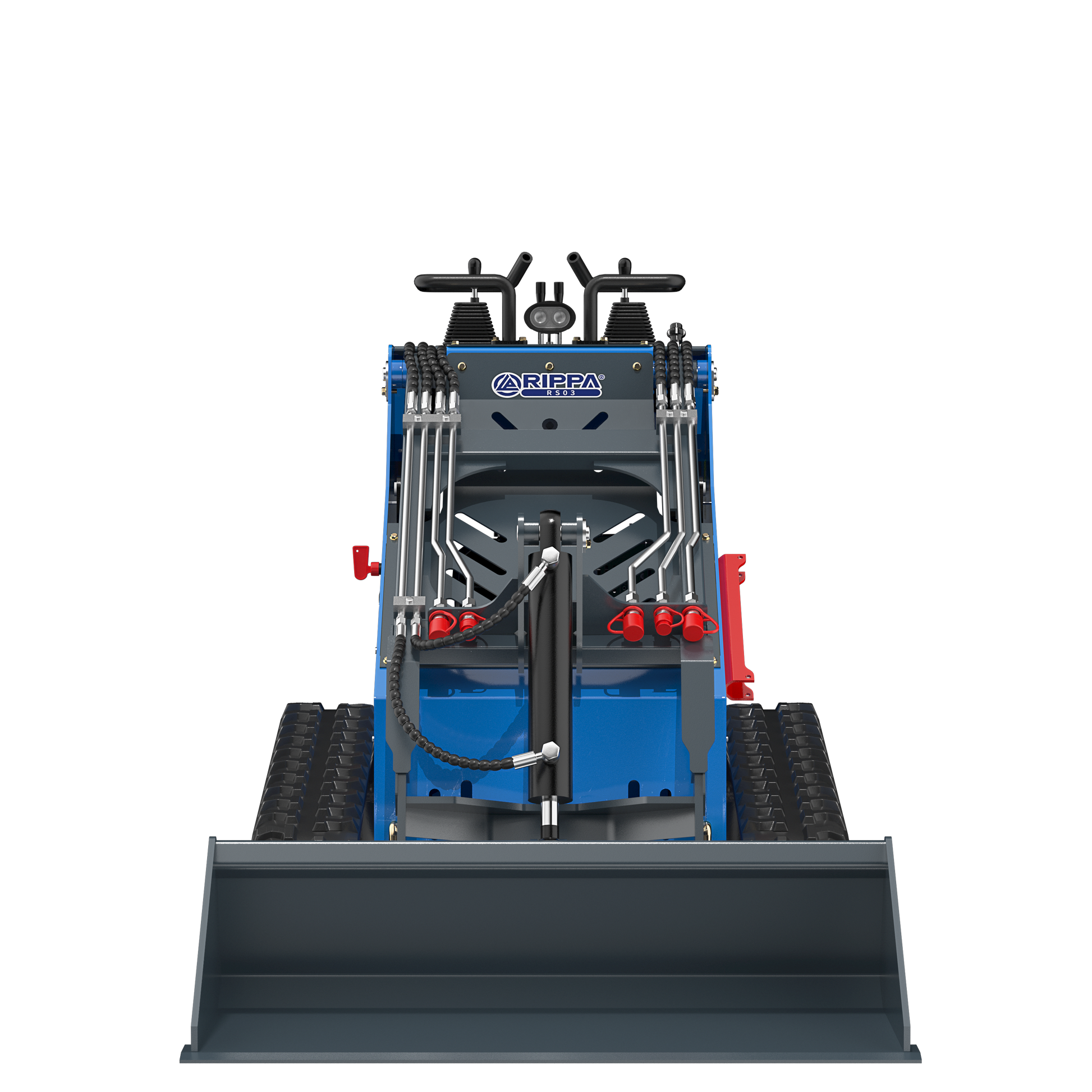

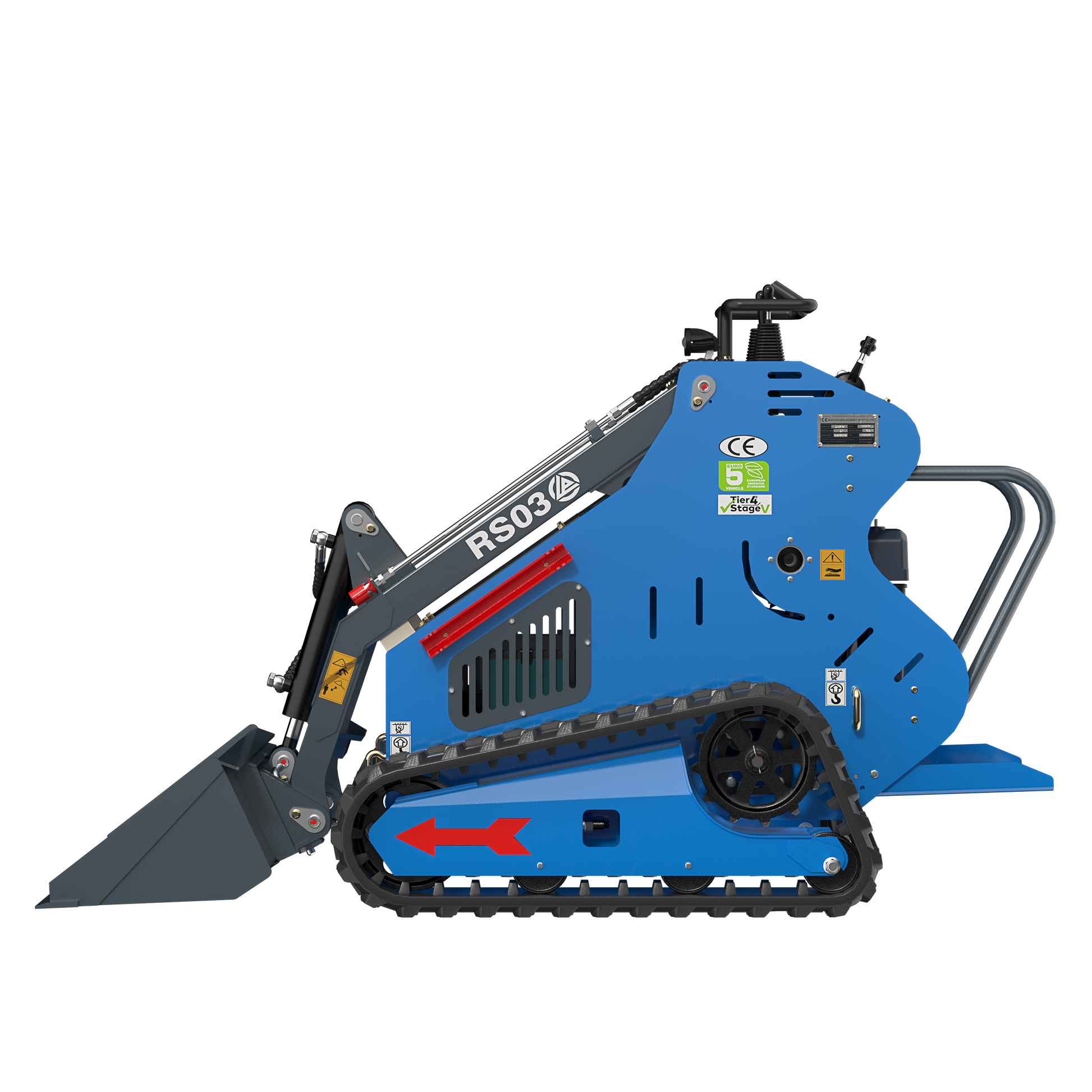

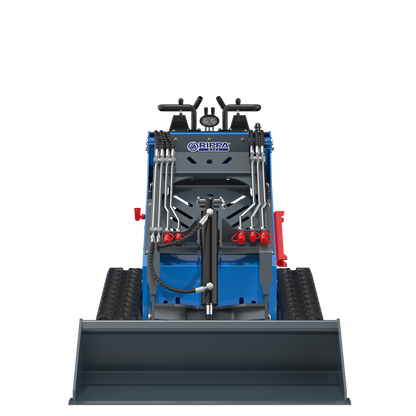

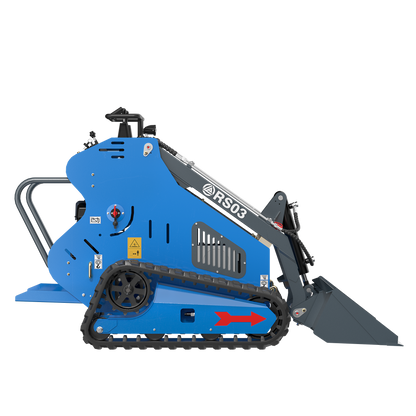

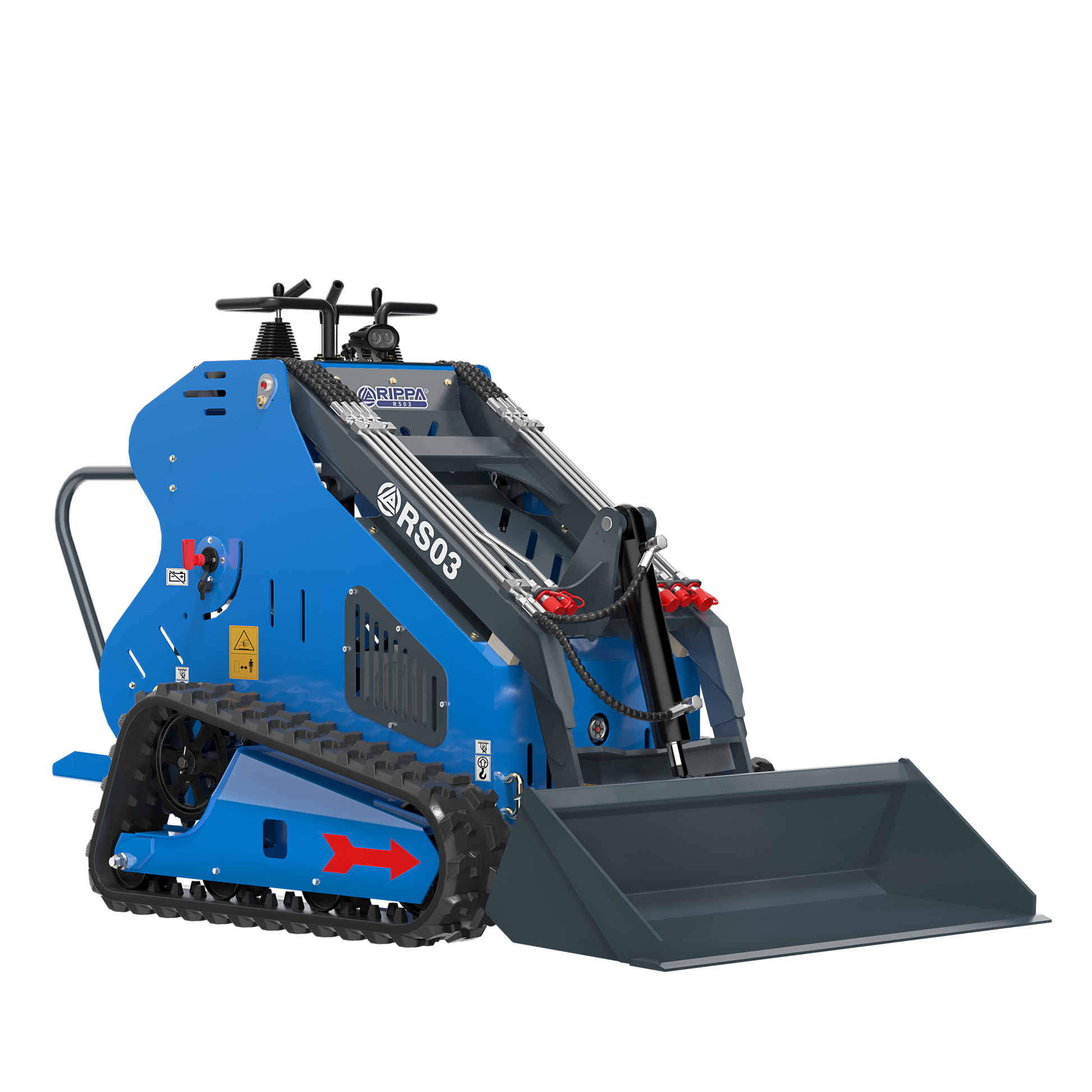

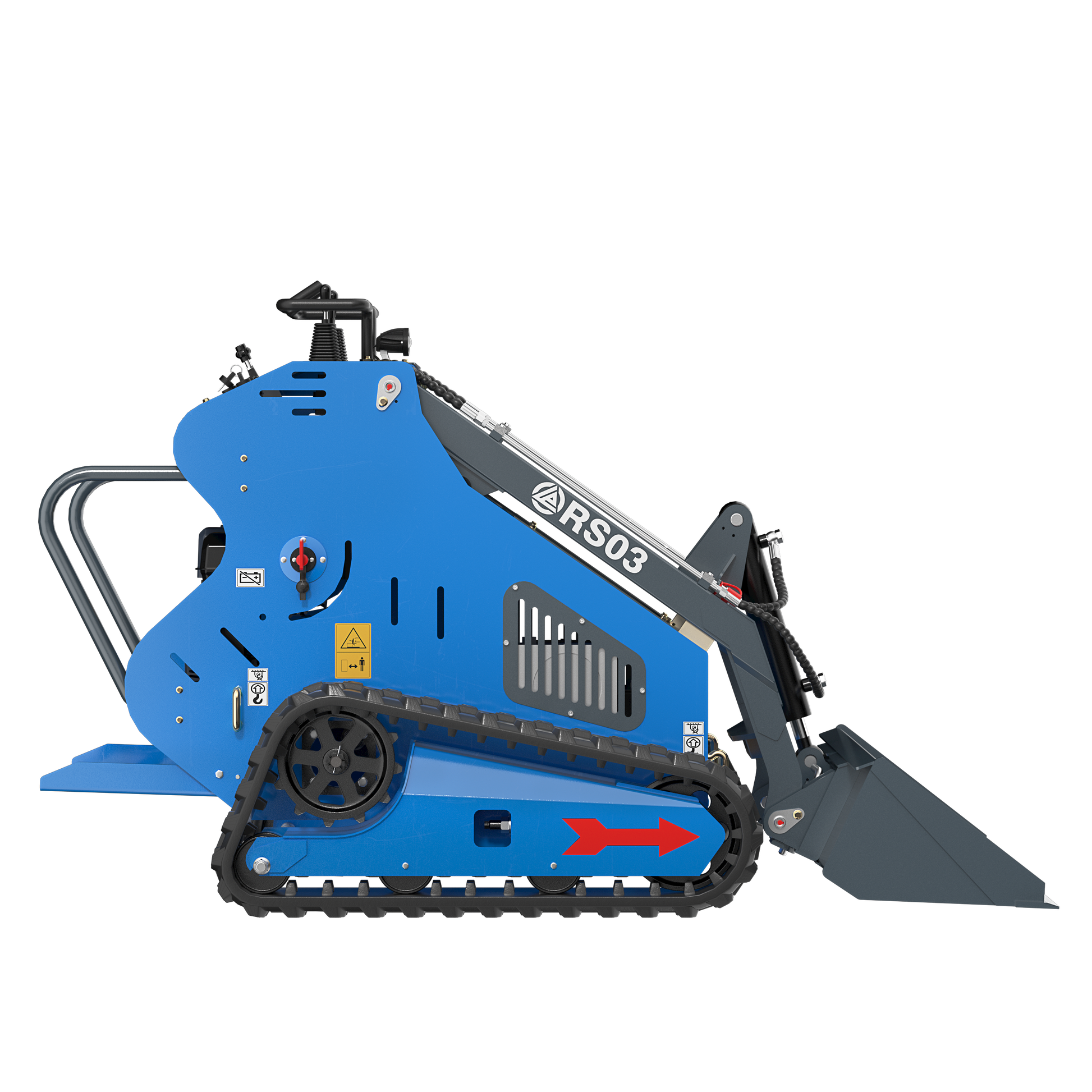

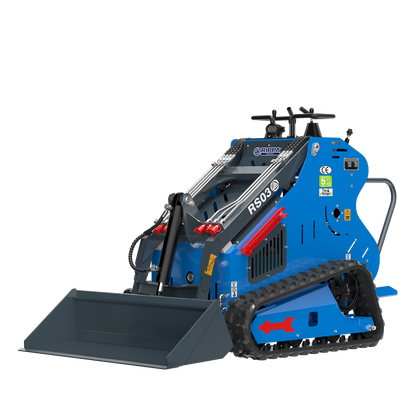

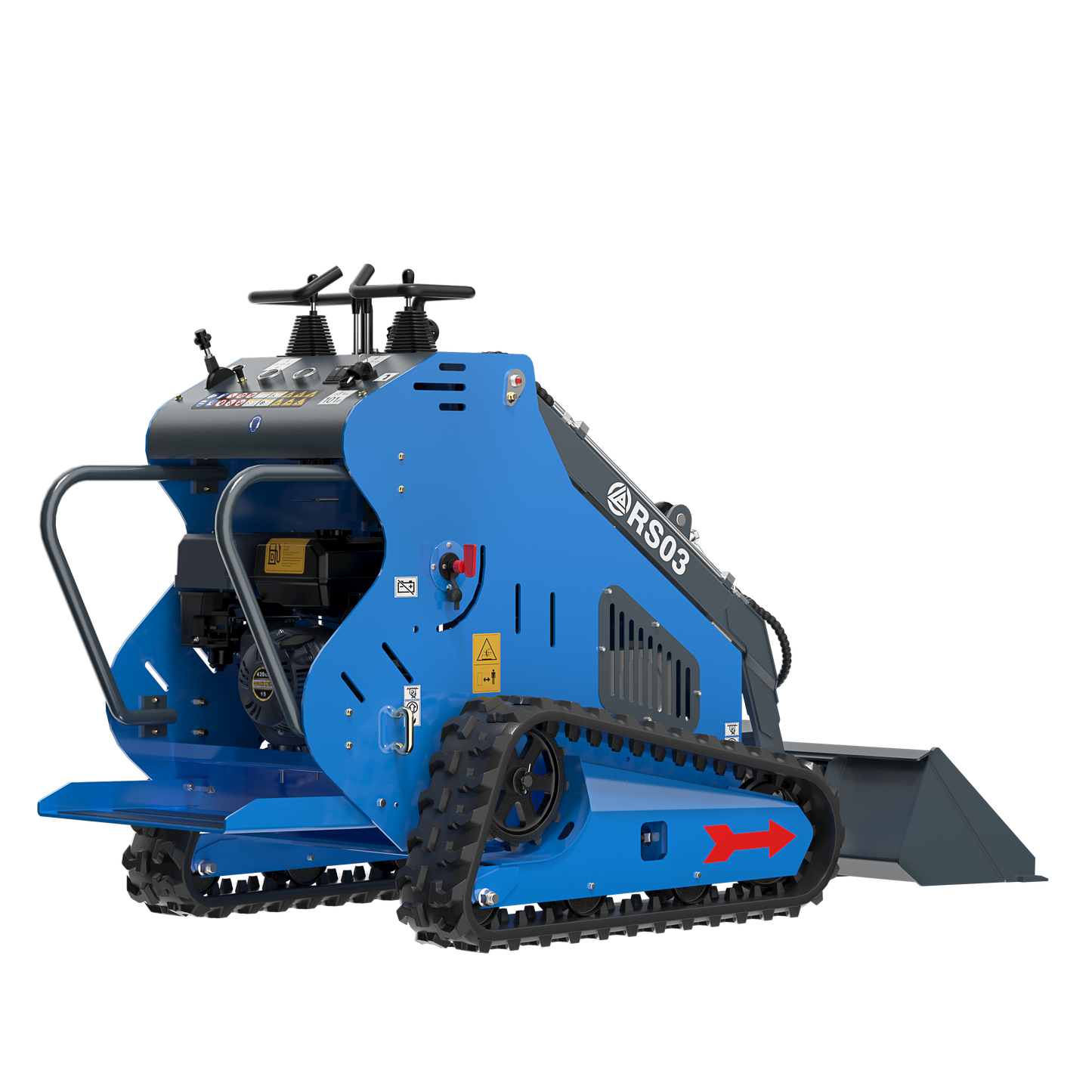

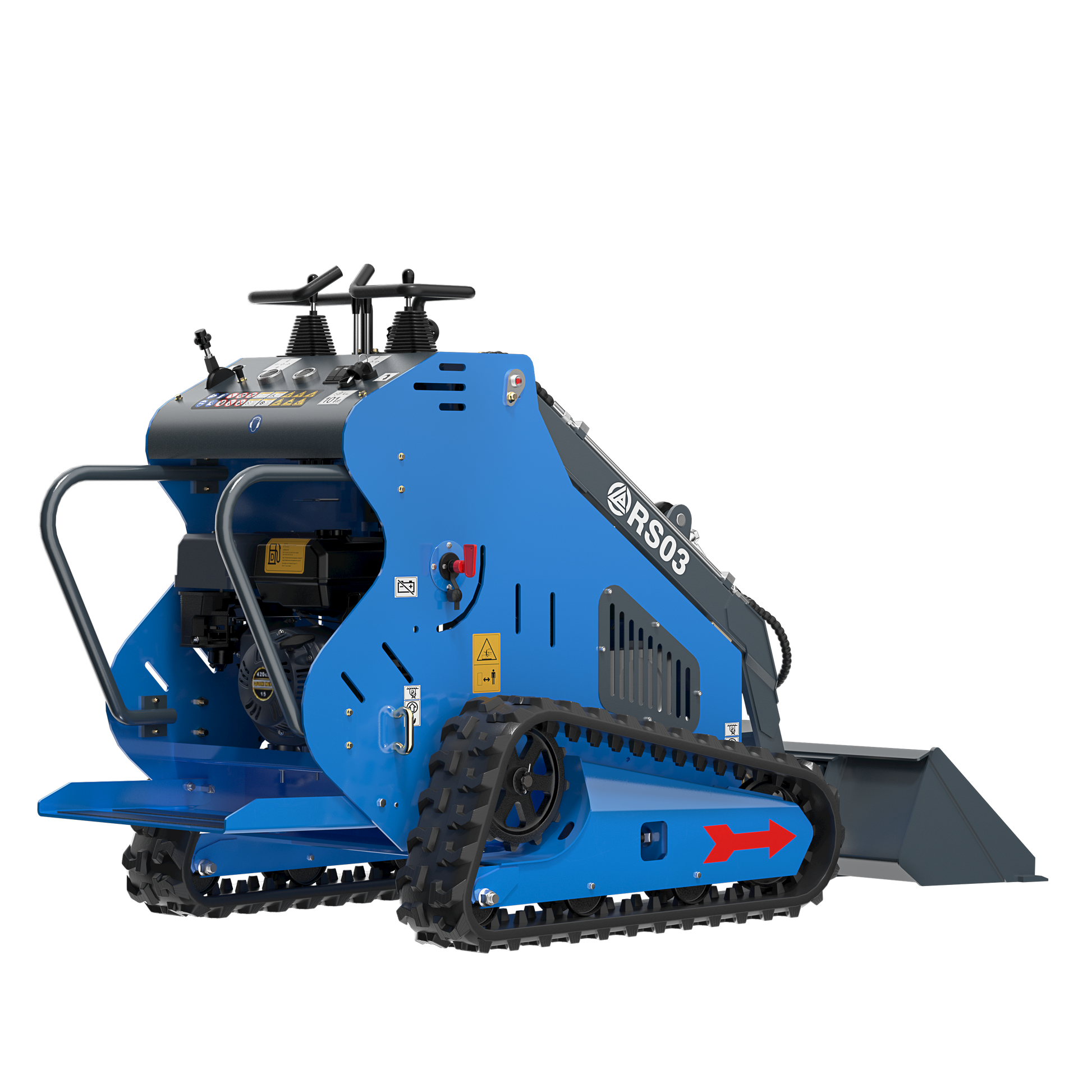

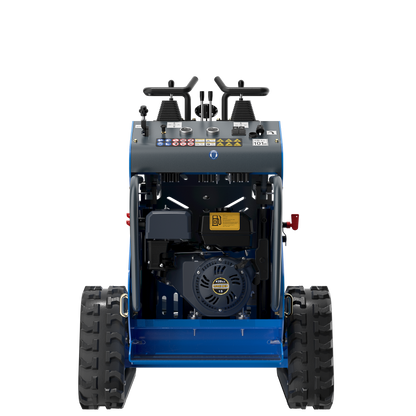

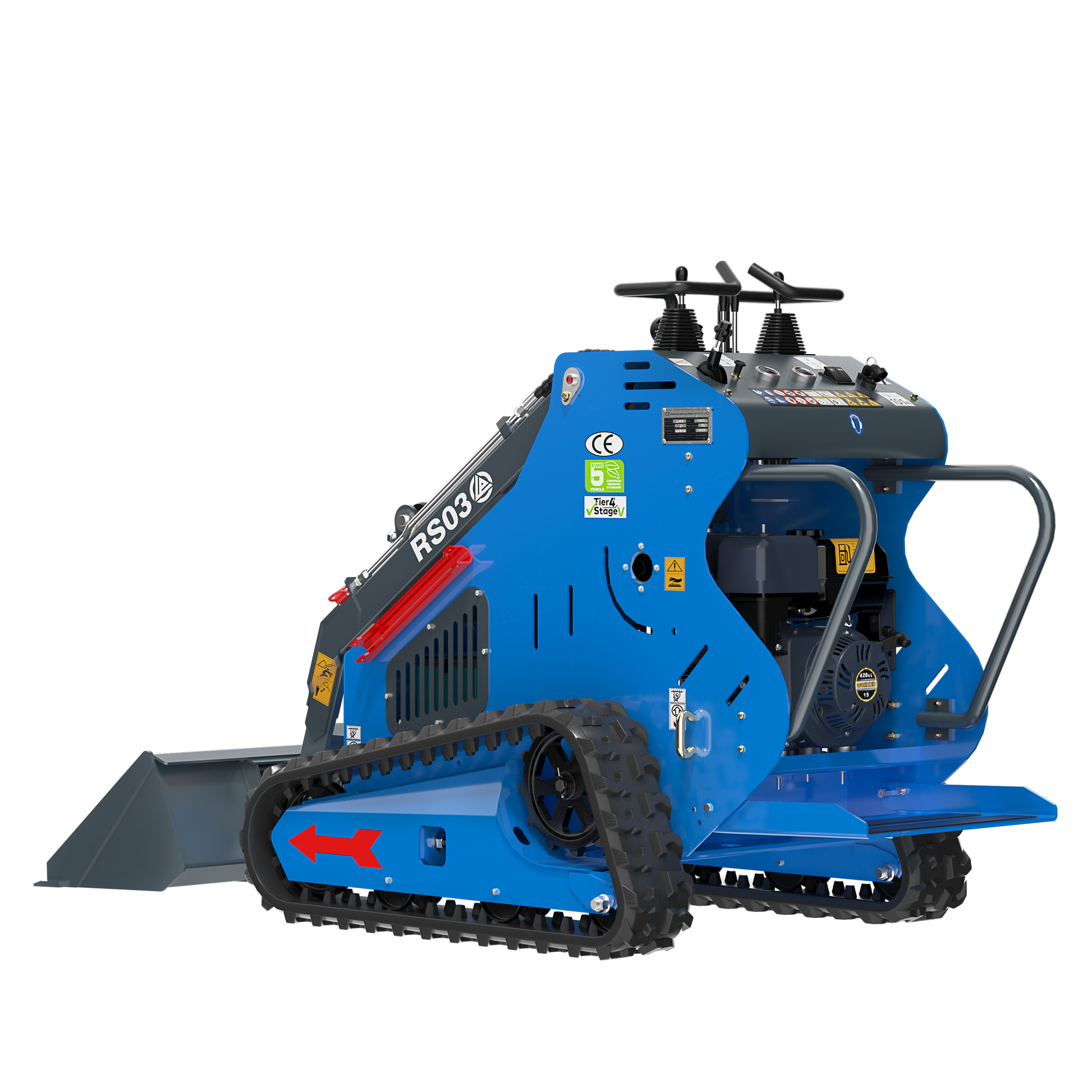

The Rippa RS 03 is a compact and agile compact loader, ideal for construction, landscaping, municipal, and agricultural applications. Thanks to its compact dimensions, robust construction, and easy operation, the RS 03 is particularly suited for efficient work in confined spaces.

Whether for material transport, earthmoving tasks, or the use of various attachments – the RS 03 stands out with its versatility, precise control, and high everyday practicality.

RS03 – Technical Specifications

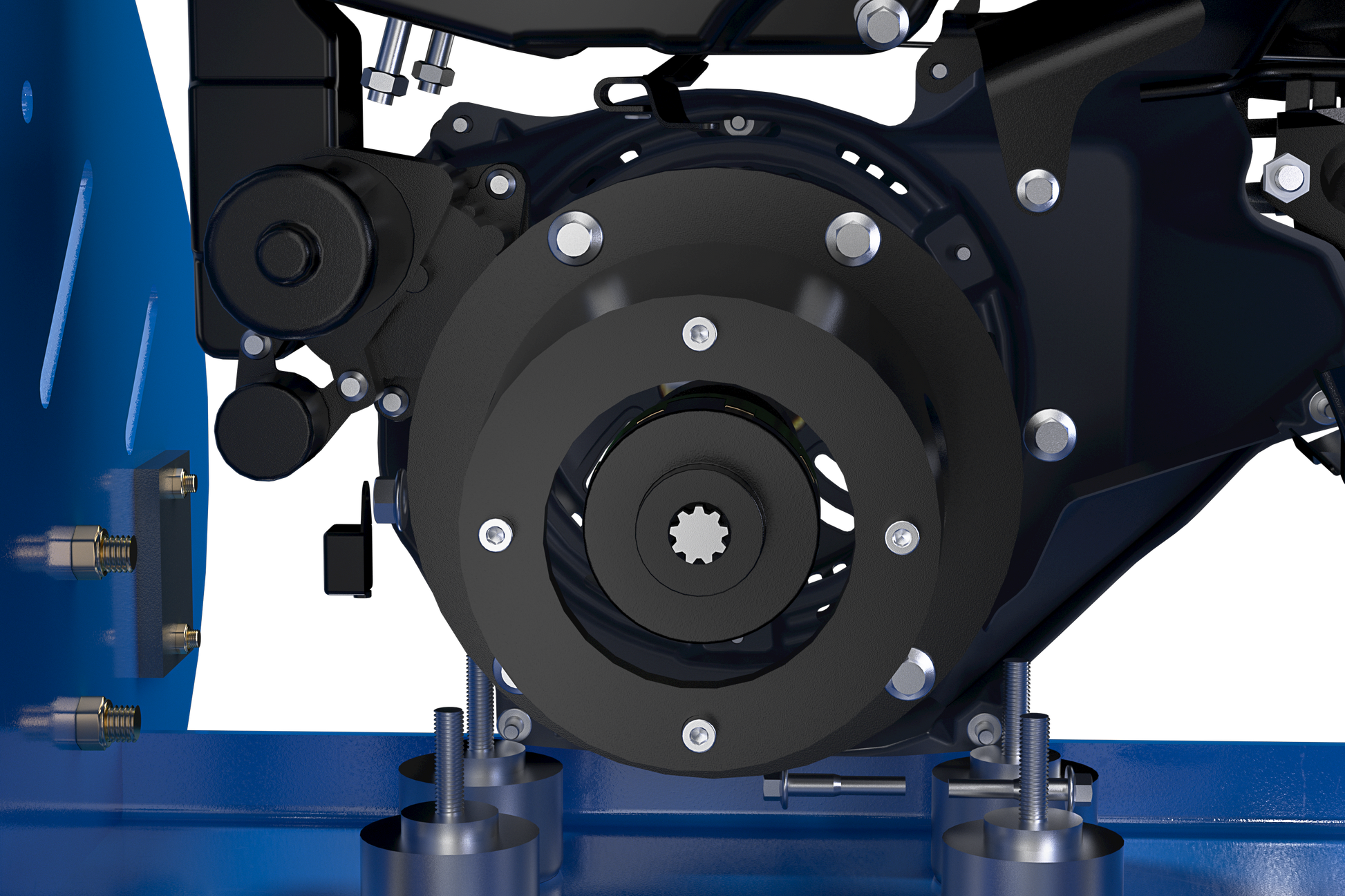

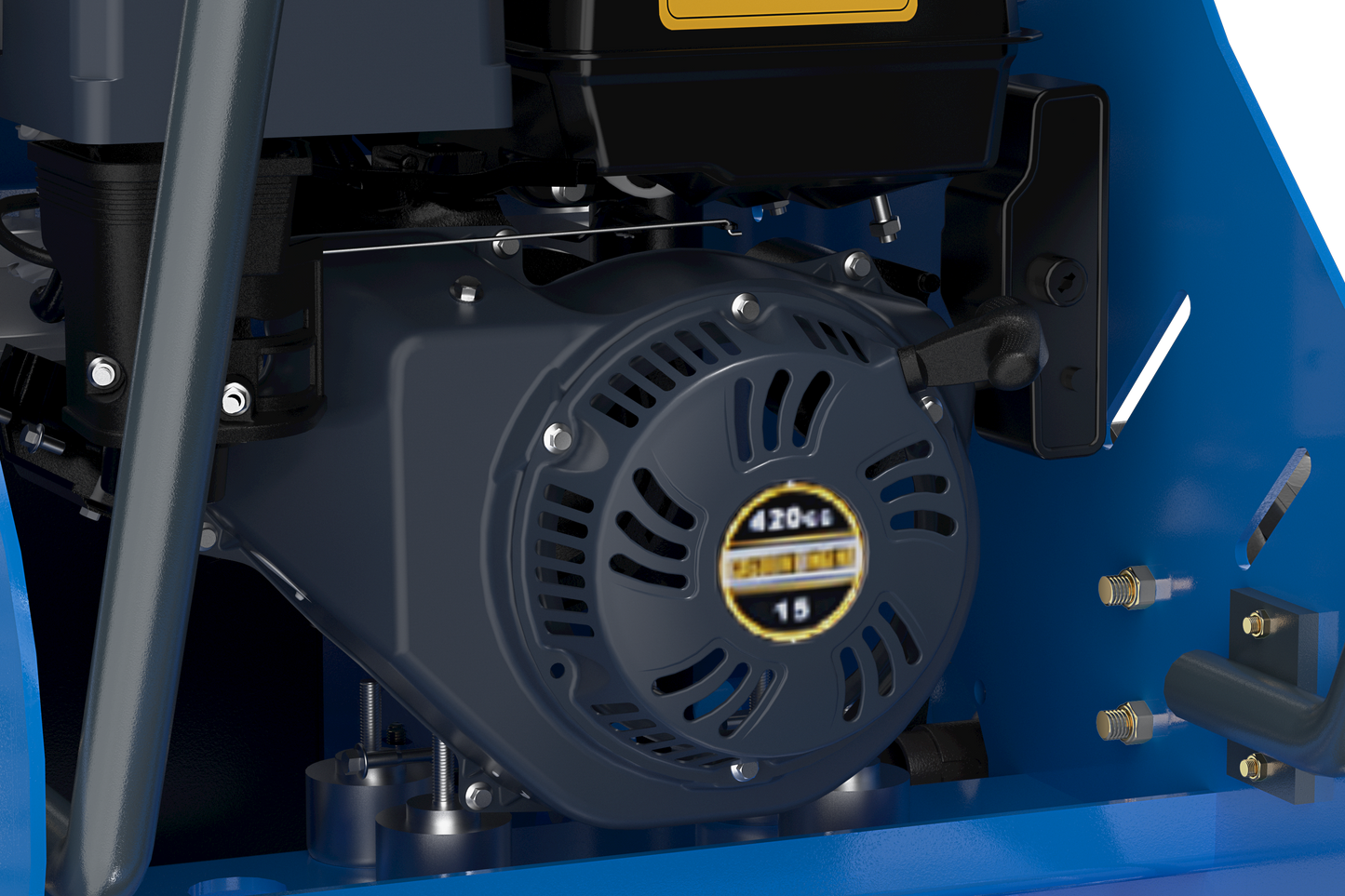

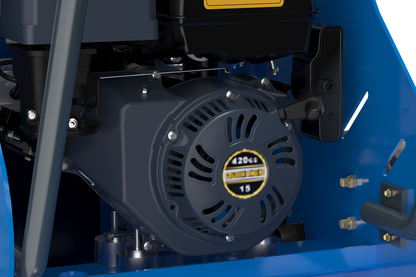

Engine EU / US
Brand Briggs & Stratton
Model XR2100
Cylinders 1
Displacement 0.42 L / 0.11 gal
Cooling Air-cooled
Fuel Gasoline
Fuel consumption 0.8–1.2 L/h / 0.21–0.32 gal/h
Oil change capacity 1.2 L / 0.32 gal
Max. speed 3600 rpm / 3600 rpm
Max. power 8.4 kW / 13.6 PS / 11.3 hp
Dimensions & Weight EU / US
Transport length with bucket 2100 mm / 82.7 in
Transport length without bucket 1638 mm / 64.5 in
Transport width 1150 mm / 45.3 in
Transport height 1361 mm / 53.6 in
Bucket width 1150 mm / 45.3 in
Operating weight 639 kg / 1408.7 lb
Ground clearance 129 mm / 5.1 in
Performance & Load EU / US
Rated load 102 kg / 224.9 lb
Max. load 204 kg / 449.7 lb
Max. dumping height 1553 mm / 61.2 in
Max. loading height 2259 mm / 89.0 in
Max. dumping reach 620 mm / 24.4 in
Max. gradeability 25 % / 25 %
Ground pressure 22.5 kPa / 3.26 psi

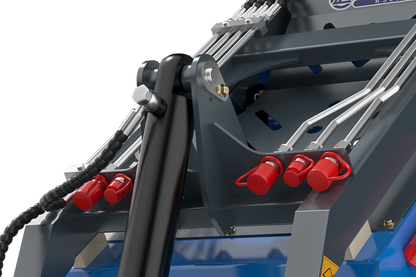

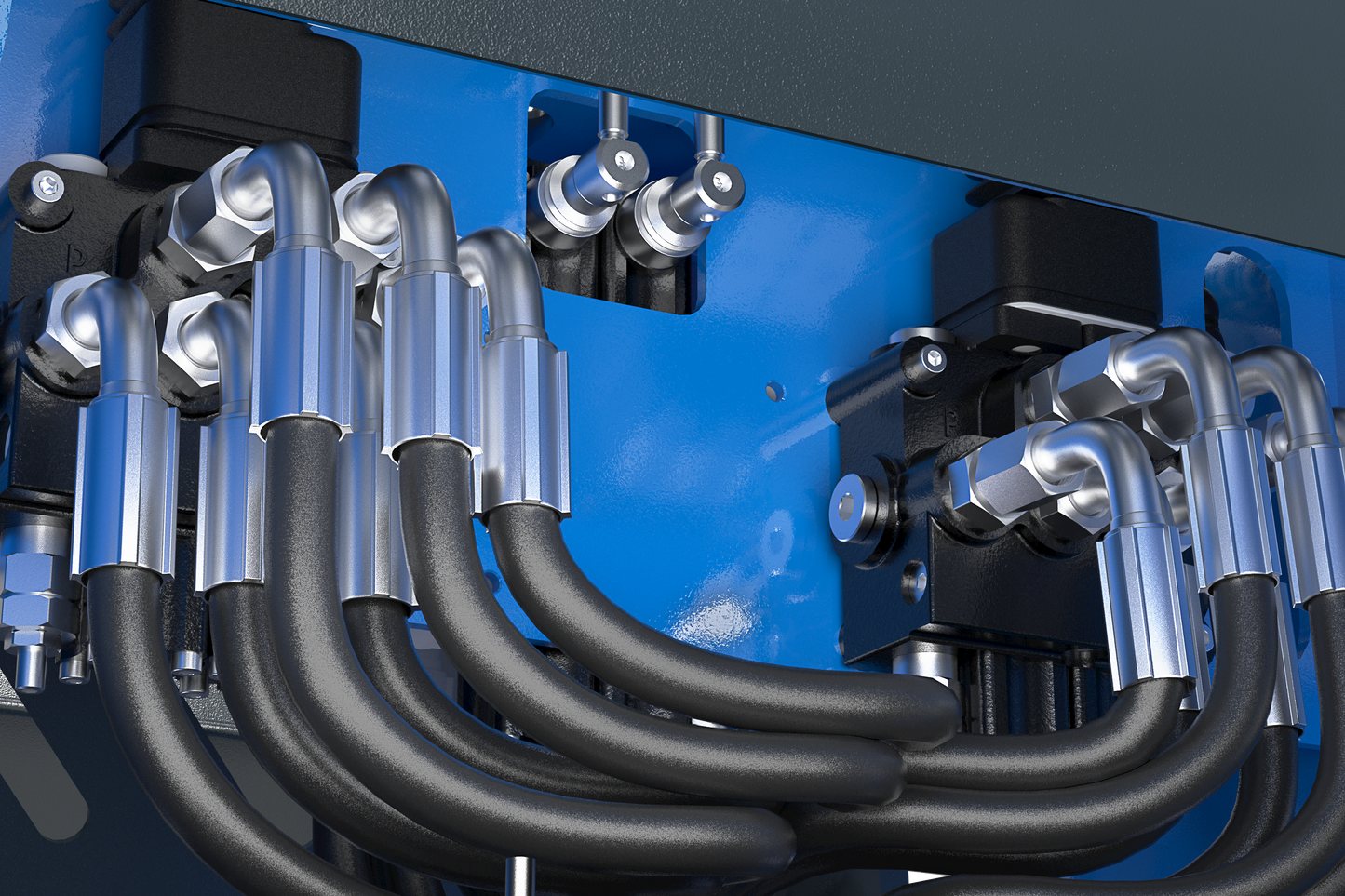

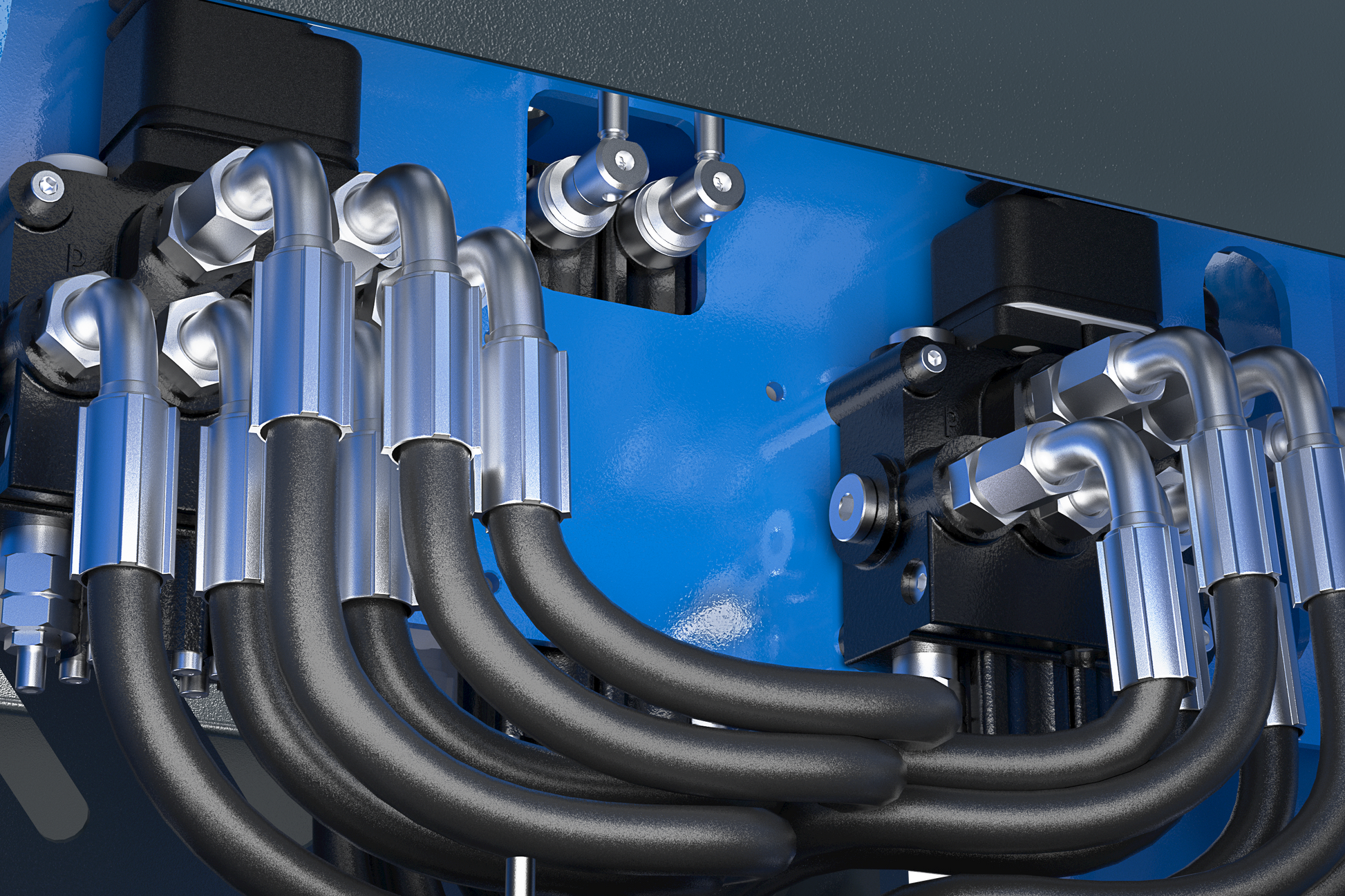

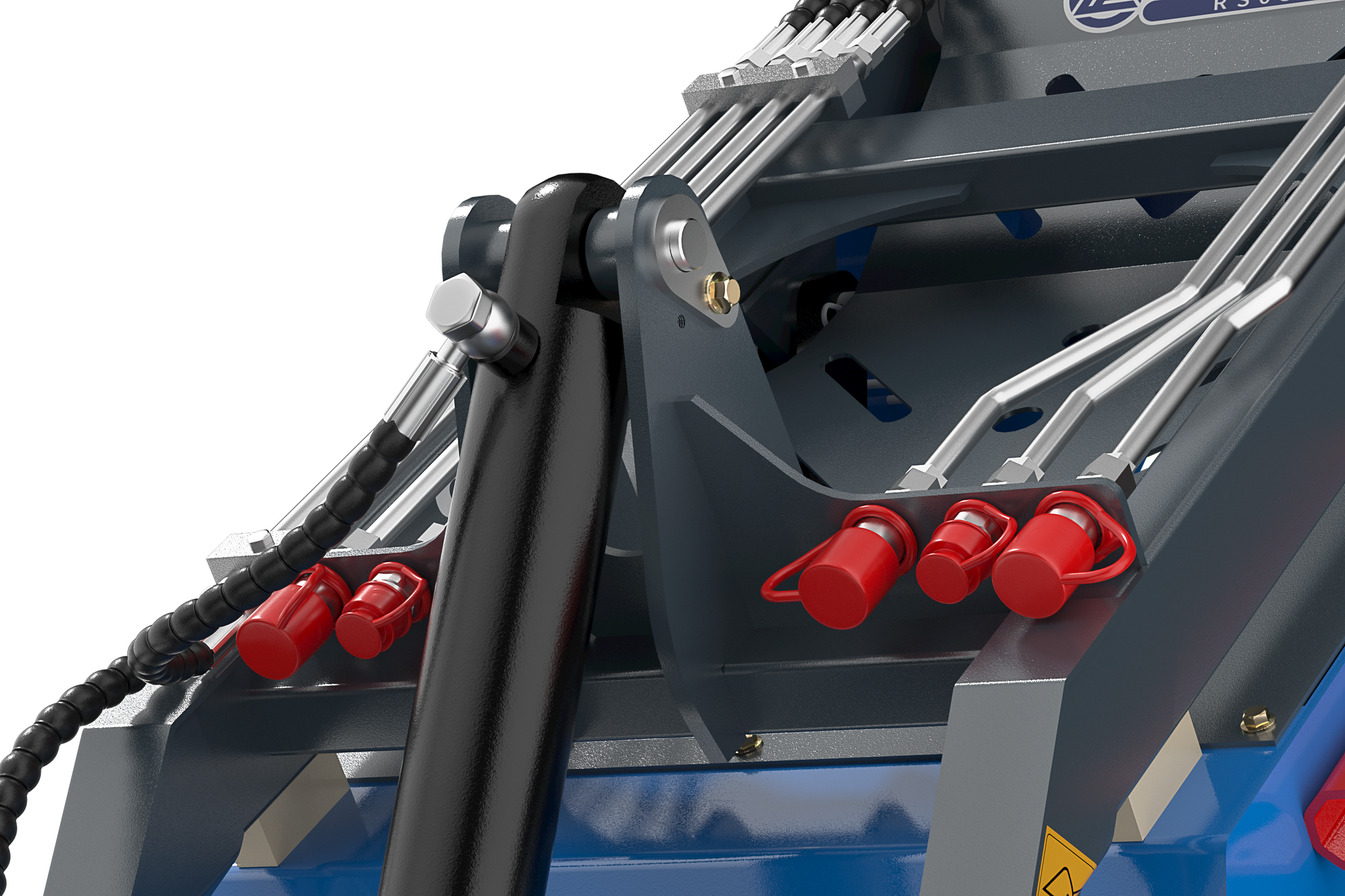

Hydraulic System EU / US
Main pump Tianjin Walking
Multi-way valve Tengfei
Drive motor Luke
