Rippa

R15 ECO

R15 ECO

Regular price 9.999,00 EUR
Regular price Sale price 9.999,00 EUR
Sale Sold out
excl. MwSt
Kabine

In stock

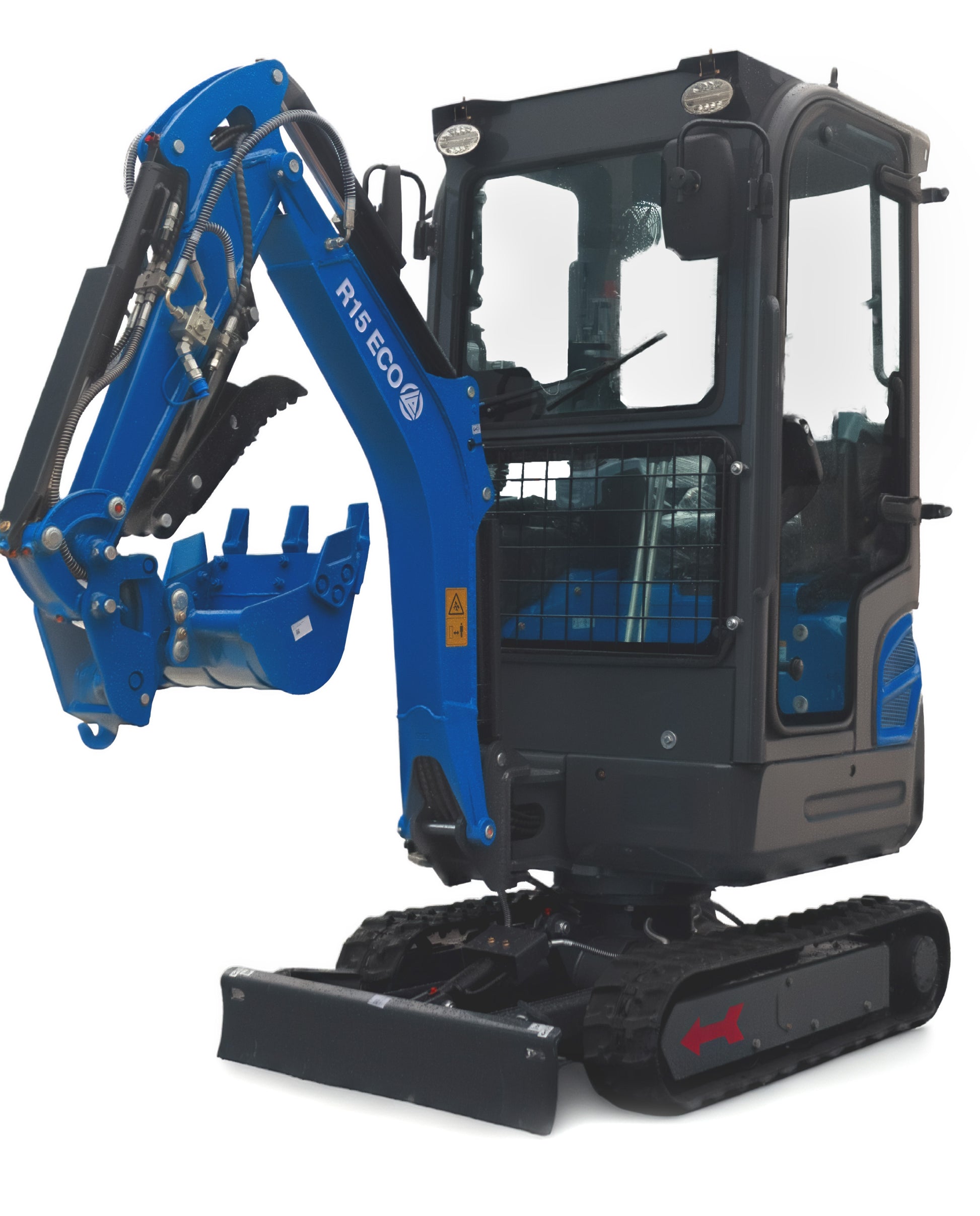

The Rippa R15 ECO is a powerful and versatile mini excavator, ideal for construction projects, landscaping, and precise work in confined spaces. With its robust design and efficient Kubota diesel engine, it offers the perfect combination of power, reliability, and efficiency.

With an operating weight of 1,500 kg and a digging depth of 1.87 meters, the R15 ECO is perfectly equipped for demanding tasks and stands out for its high stability and operator comfort.

Standard features include:

✔ 40 cm toothed bucket for precise digging
✔ Fuel-efficient Kubota diesel engine (Euro 5 certified)
✔ Durable construction for maximum longevity
✔ Compact design for versatile applications

Additional accessories, such as various buckets, grapples, or quick couplers, can be found in the Accessories section on our website.

R15 ECO – Specifications

Basic Parameters EU / US
Operating weight 1500 kg / 3307 lb
Bucket capacity 0.018 m³ / 0.64 ft³
Travel speed 0–2.5 km/h / 0–1.55 mph
Gradeability 30 % / 30 %
Ground pressure 30 kPa / 4.35 psi
Max. digging force 15.0 kN / 15.0 kN
Max. digging radius 3900 mm / 153.5 in
Max. digging depth 2300 mm / 90.6 in
Max. digging height 3400 mm / 133.9 in
Max. unloading height 2400 mm / 94.5 in
Max. slewing angle 120° / 120°
Track (Width×Pitch×Links) 230 mm×96 mm×40 / 9.06 in×3.78 in×40
Engine EU / US
Brand Kubota / Kubota
Model D722 / D722
Max. horsepower 13.7 PS / 13.7 hp
Max. power 10.2 kW / 10.2 kW
Max. speed 2500 rpm / 2500 rpm
Displacement 0.898 L / 0.24 gal
No. of cylinders 3 / 3
Cooling Water-cooled / Water-cooled
Engine oil 3.1 L / 0.82 gal
Fuel Diesel / Diesel
Fuel grade No. 0 / -10 / No. 0 / -10
Theoretical consumption 1.4–1.6 L/h / 0.37–0.42 gal/h
Dimensions EU / US
Transport length 2700 mm / 106.3 in
Transport width 1200 mm / 47.2 in
Transport height 2350 mm / 92.5 in
Ground clearance (counterweight) 400 mm / 15.7 in
Bucket width 450 mm / 17.7 in
Boom length 1700 mm / 66.9 in
Arm length 950 mm / 37.4 in
Blade width 1200 mm / 47.2 in
Hydraulic System EU / US
Main pump type/model CBGJ2080 / CBGJ2080
Main pump brand Tianjin Walking / Tianjin Walking
Max. flow 26 L/min / 26 L/min
Control valve 2–3 joints / 2–3 joints
Control valve brand Tengfei / Tengfei
Rated pressure 18 MPa / 18 MPa
Max. pressure 20 MPa / 20 MPa
Travel motor BM5-250 / BM5-250
Travel motor brand Paiyi / Paiyi
Travel motor displacement 250 / 250
Slewing motor BM2-250 / BM2-250
Slewing motor displacement 250 / 250
