Rippa

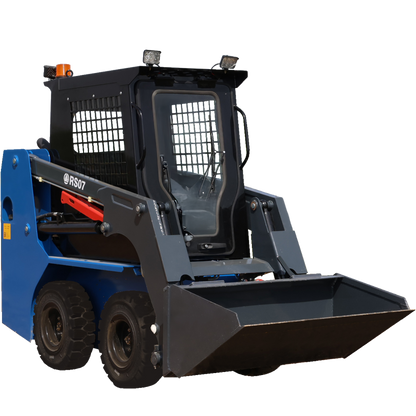

RS 07

RS 07

Regular price 11.500,00 EUR
Regular price 12.490,00 EUR Sale price 11.500,00 EUR
Sale Sold out
excl. MwSt
Fahrwerk

In stock

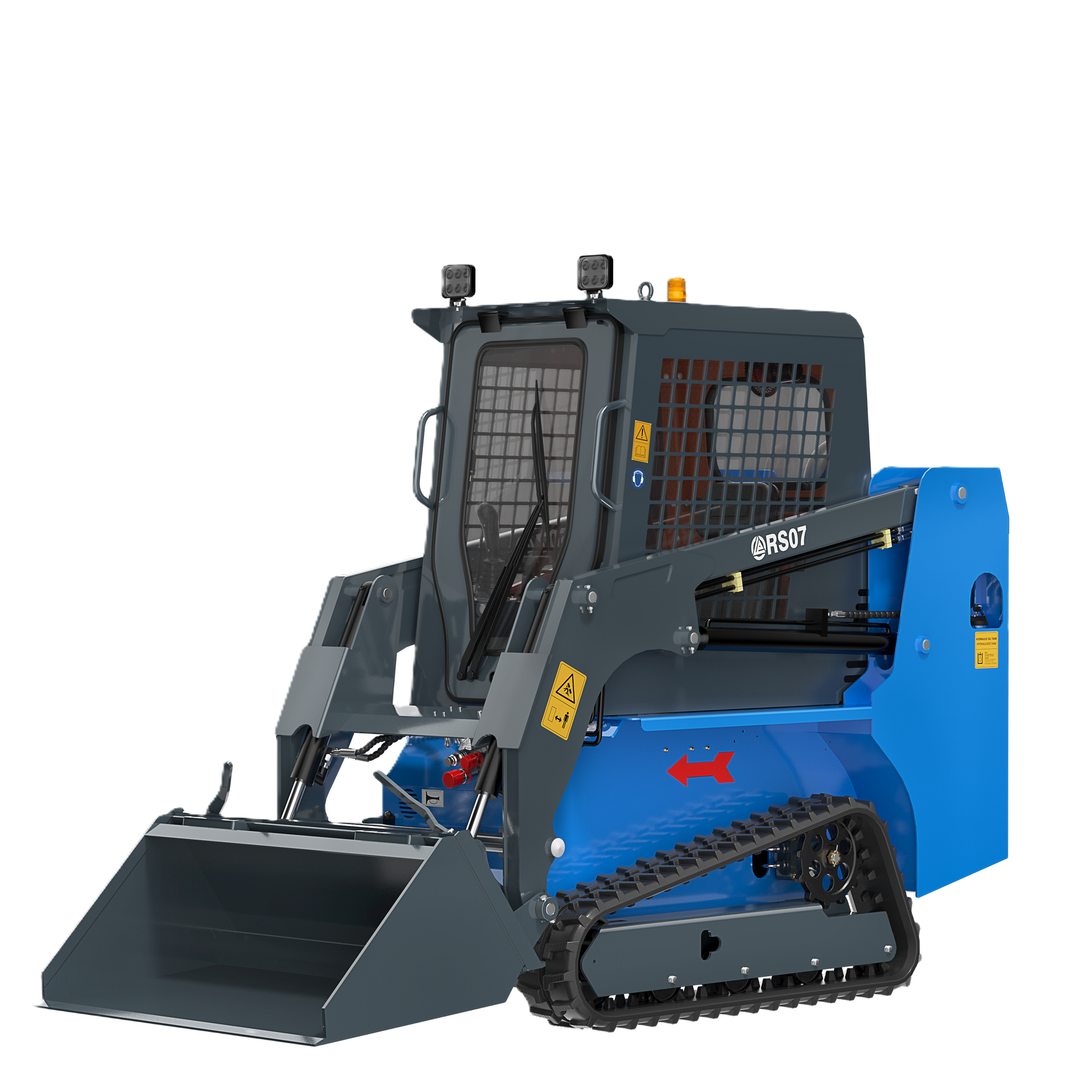

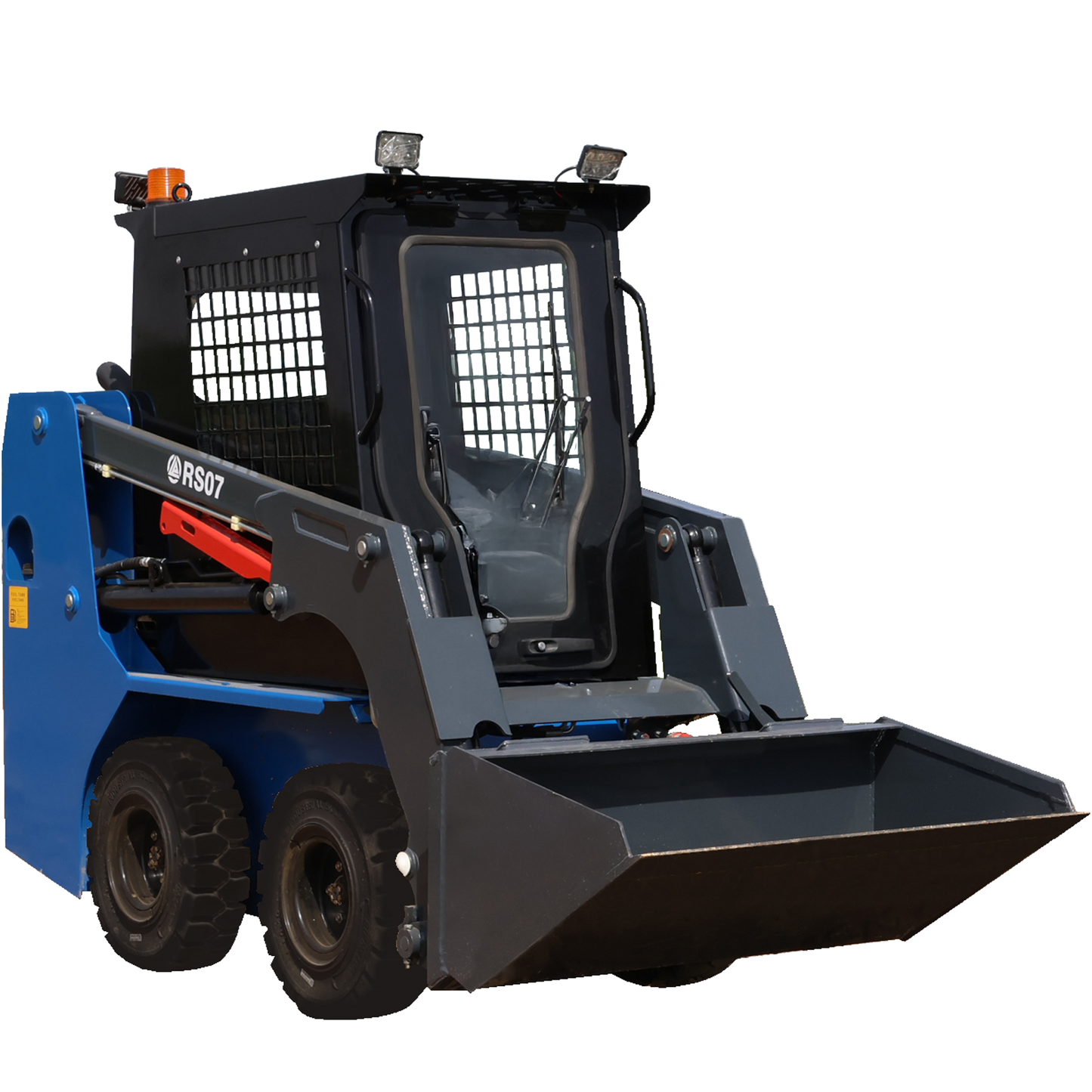

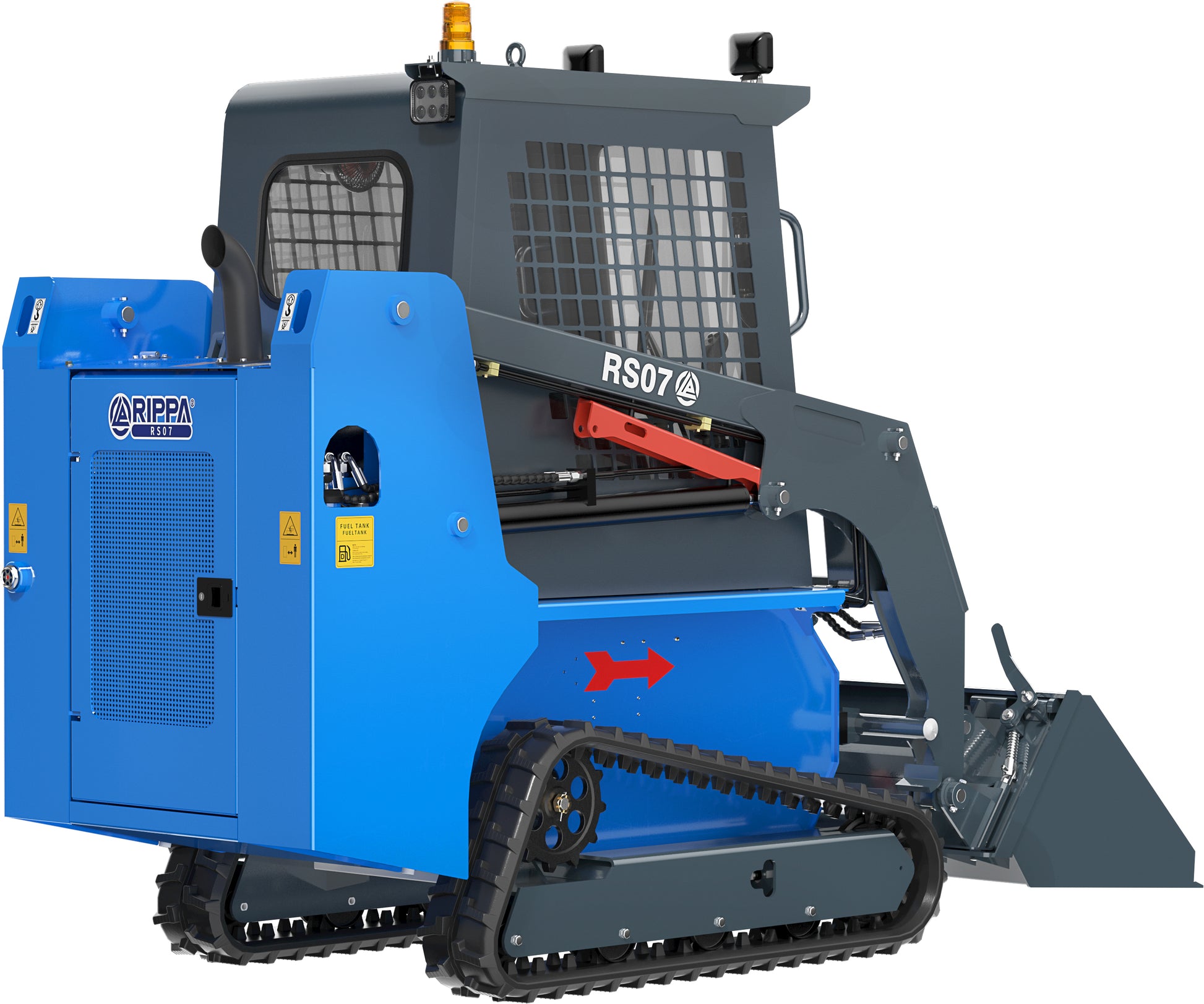

Compact, powerful, versatile!

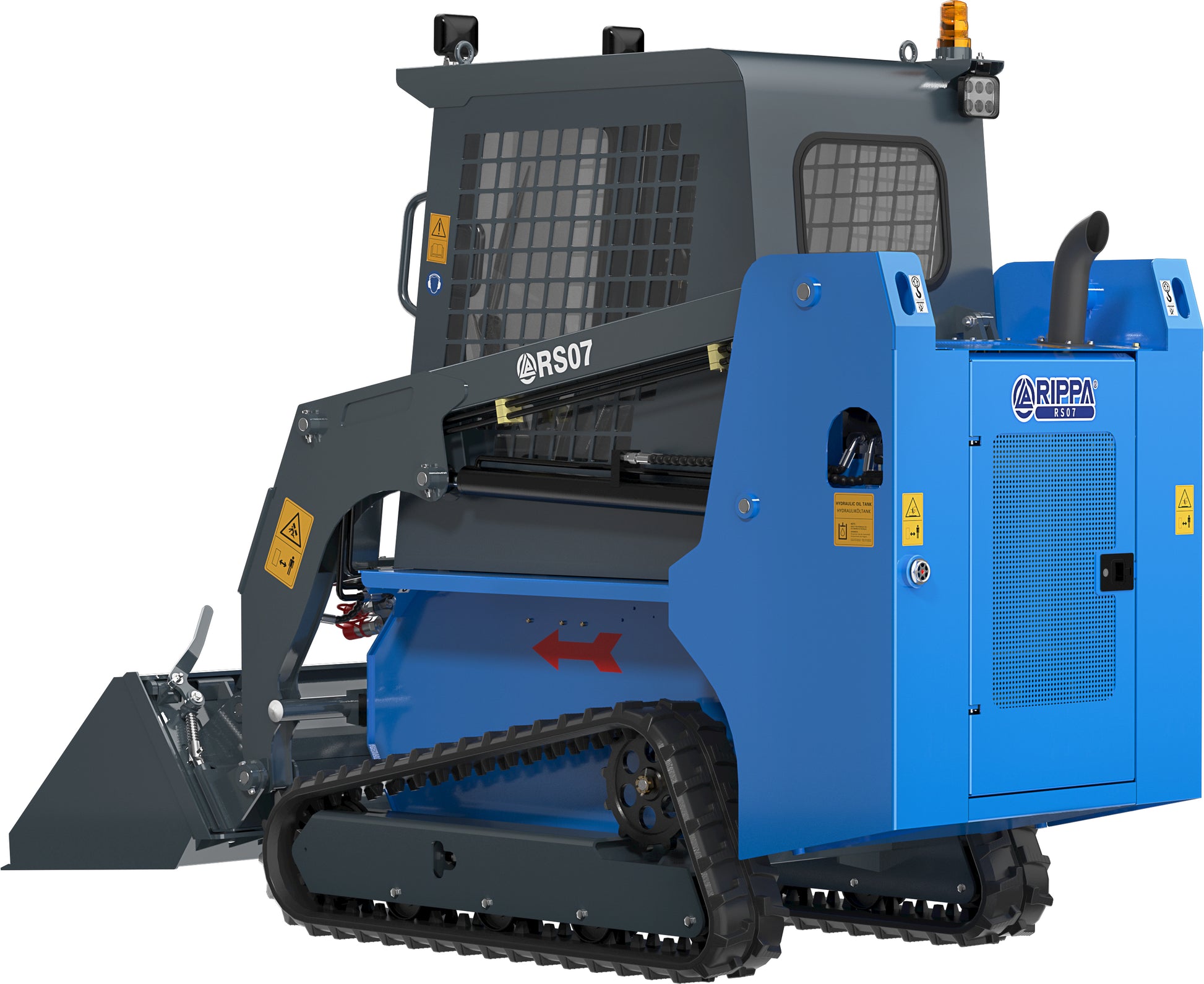

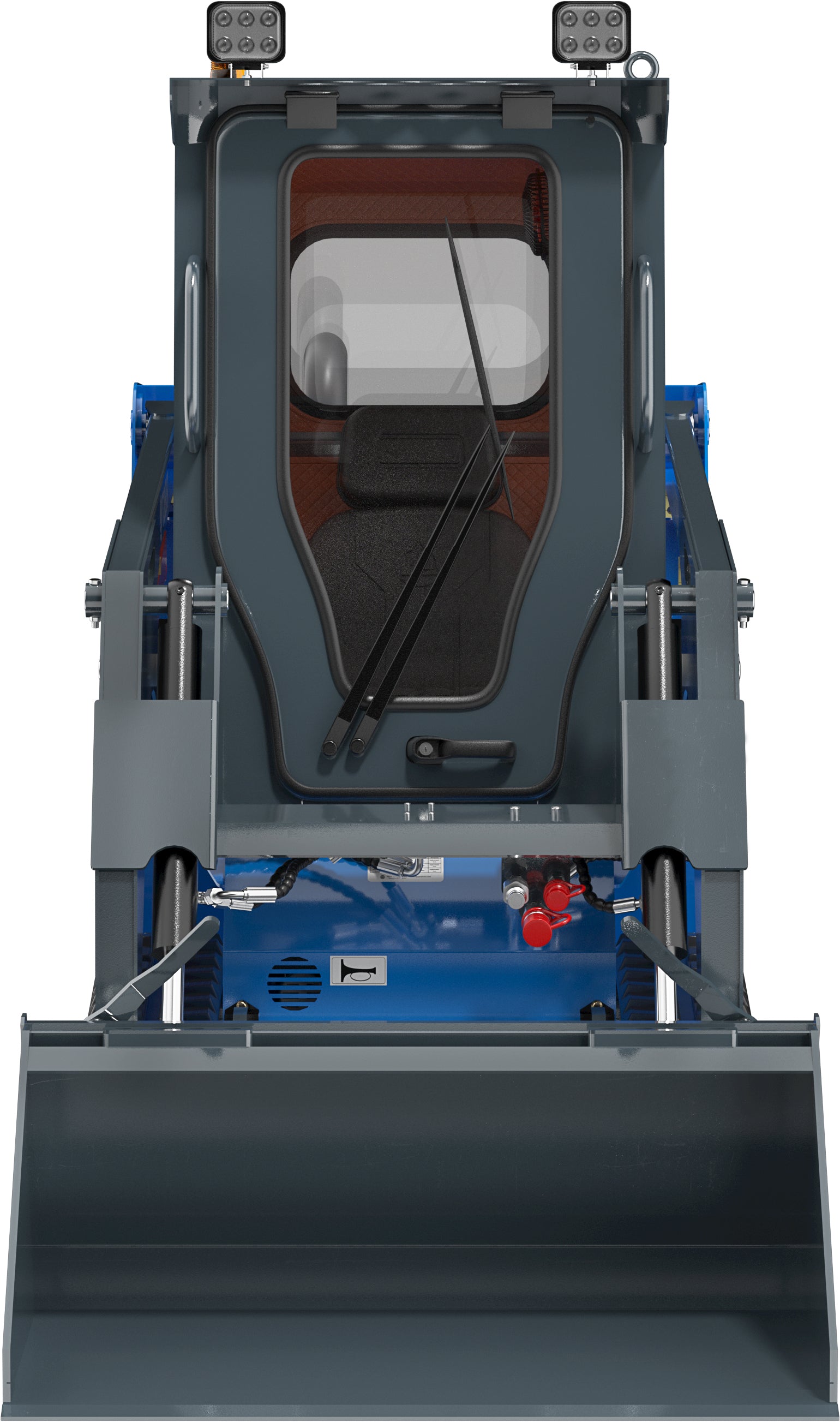

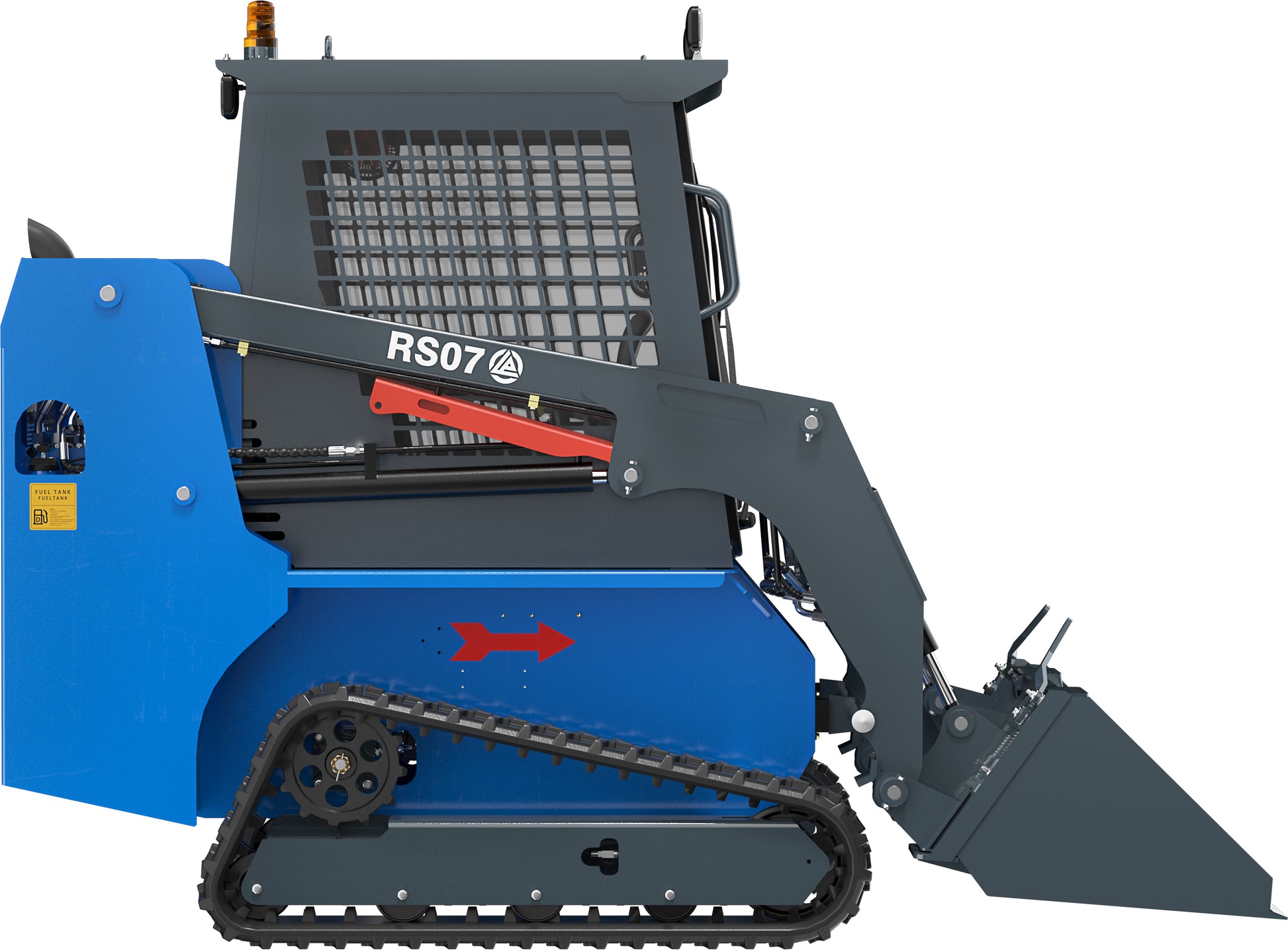

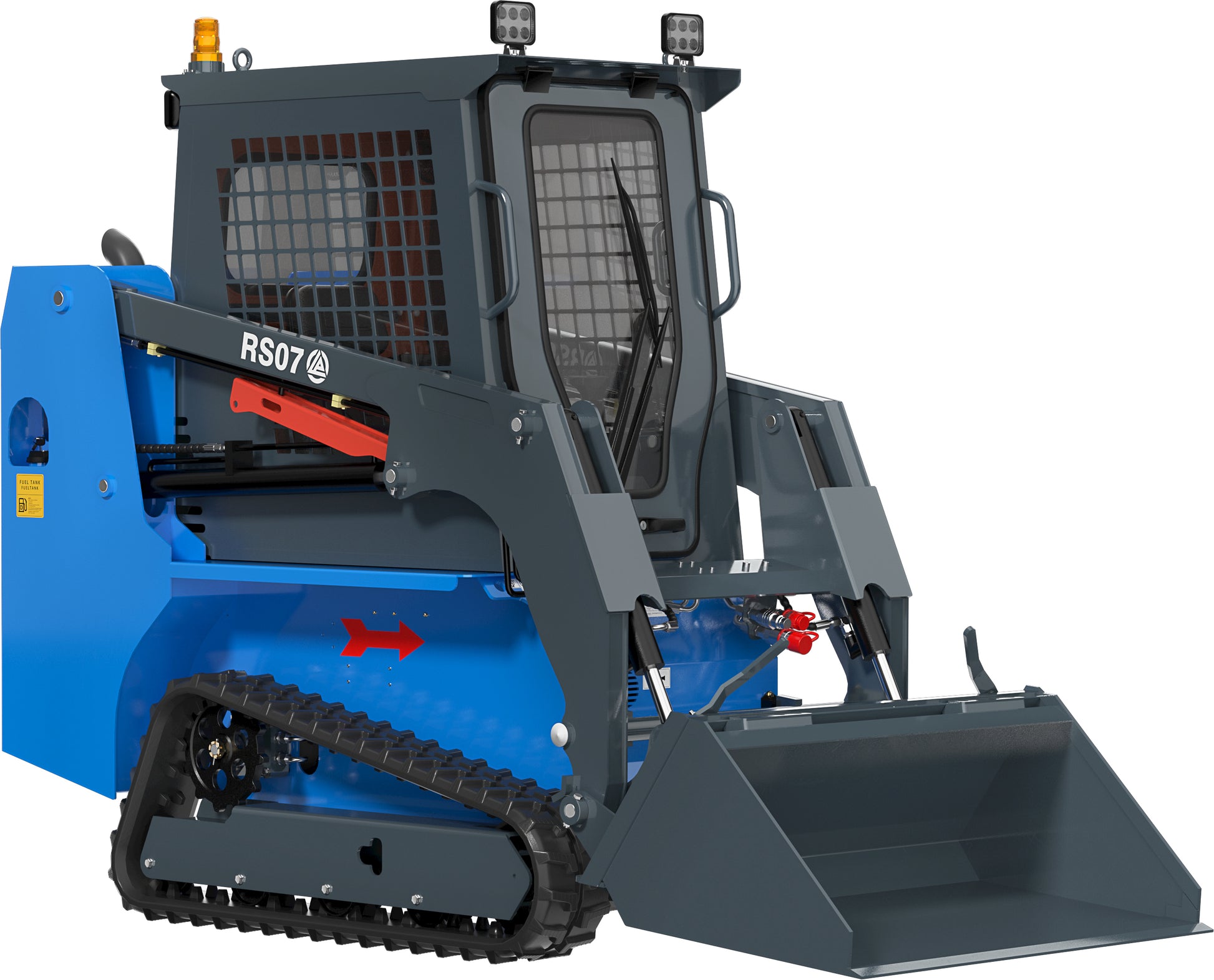

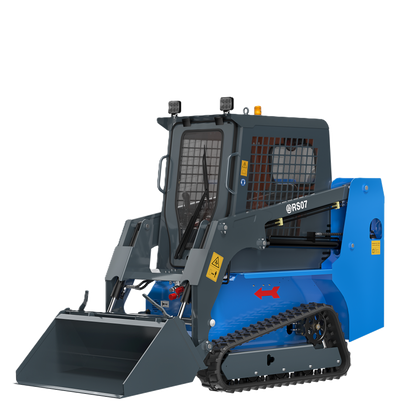

The RS 07 compact loader is the ideal solution for construction projects, agriculture, and landscaping. With its powerful Kubota diesel engine, high load capacity, and compact dimensions, it delivers maximum efficiency in confined spaces.

Whether for material transport, earthmoving, or cleaning – thanks to a wide range of attachments, the RS 07 adapts flexibly to your requirements.

RS07 – Specifications

Basic Performance Data EU / US
Operating weight 1230 kg / 2712 lb

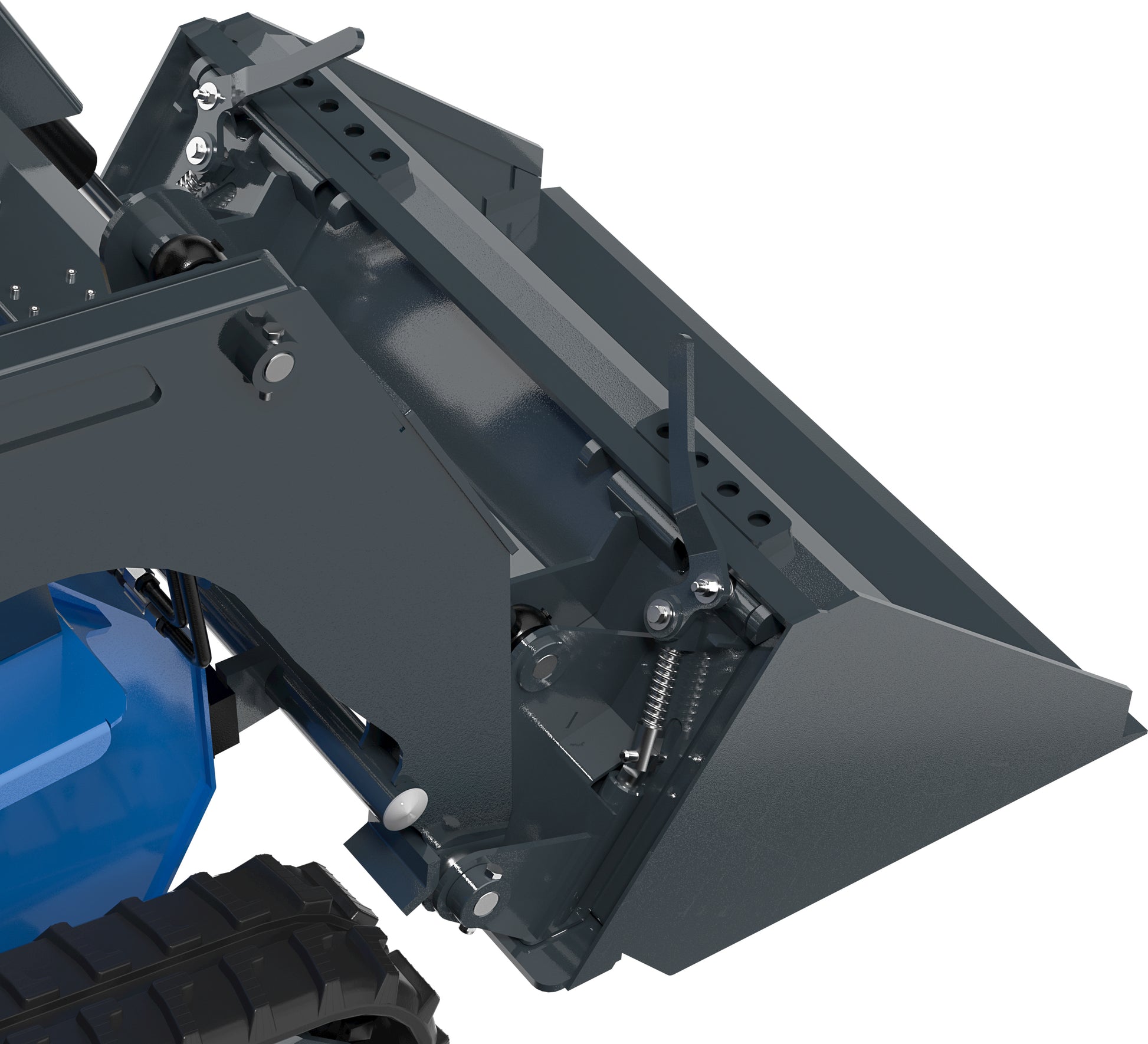

Bucket capacity 0.16 m³ / 5.65 ft³
Rated load 300 kg / 661 lb
Max. load 670 kg / 1477 lb
Travel speed 0–8 km/h / 0–5.0 mph
Gradeability 30 % / 30 %
Ground pressure 95.87 kPa / 13.91 psi
Max. dumping height 1725 mm / 67.9 in
Max. loading height 2260 mm / 89.0 in
Max. dumping reach 508 mm / 20.0 in
Min. ground clearance 176 mm / 6.93 in

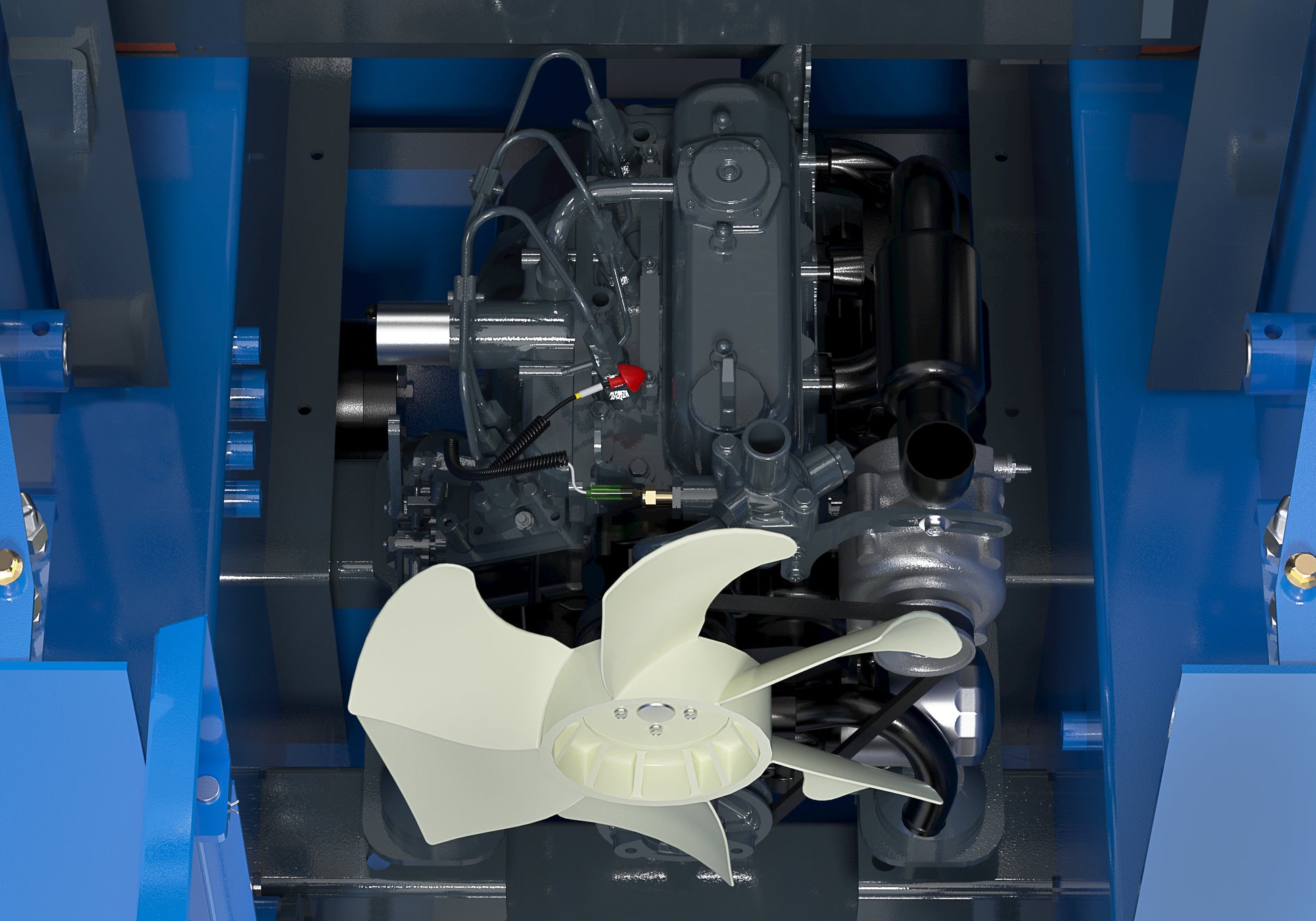

Engine EU / US
Brand Kubota / Kubota
Model D1105 / D1105
Max. horsepower 24.8 PS / 24.5 hp
Max. power 18.2 kW / 24.5 hp
Max. speed 3000 rpm / 3000 rpm
Displacement 1.123 L / 68.5 in³
Cylinders 3 / 3

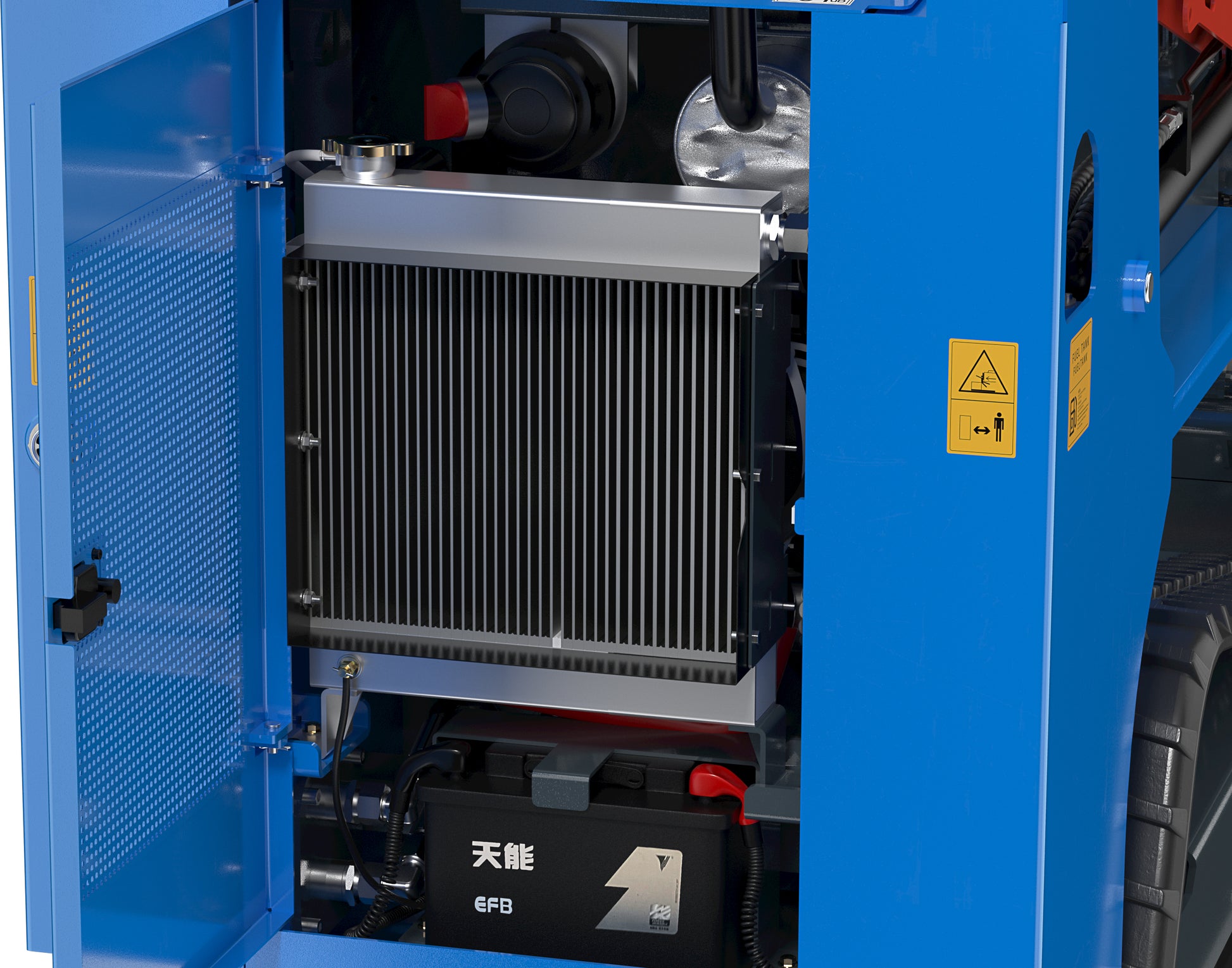

Cooling Water-cooled / Water-cooled
Engine oil capacity 4 L / 4.23 qt
Fuel type Diesel / Diesel
Fuel grade No. 0 / -10 / No. 0 / -10
Theoretical consumption 1.3–1.5 L/h / 0.34–0.40 US gal/h
Dimensions EU / US
Transport length with bucket 2655 mm / 104.5 in
Transport length without bucket 1985 mm / 78.1 in
Transport width 1000 mm / 39.4 in
Transport height 1810 mm / 71.3 in
Bucket width 1000 mm / 39.4 in
Tank Capacities EU / US
Fuel tank 32 L / 8.45 US gal

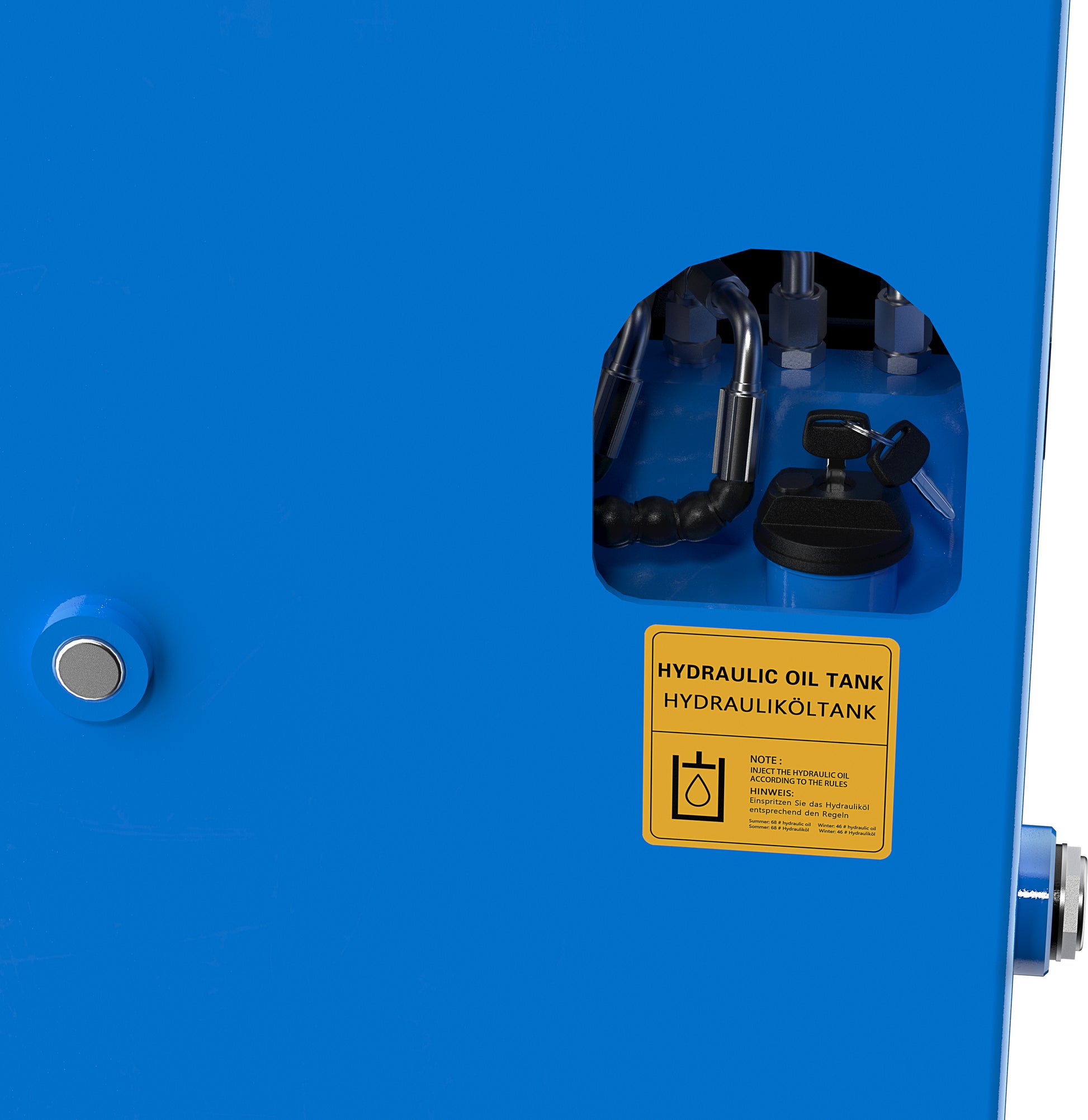

Hydraulic oil tank 32 L / 8.45 US gal
Tires EU / US

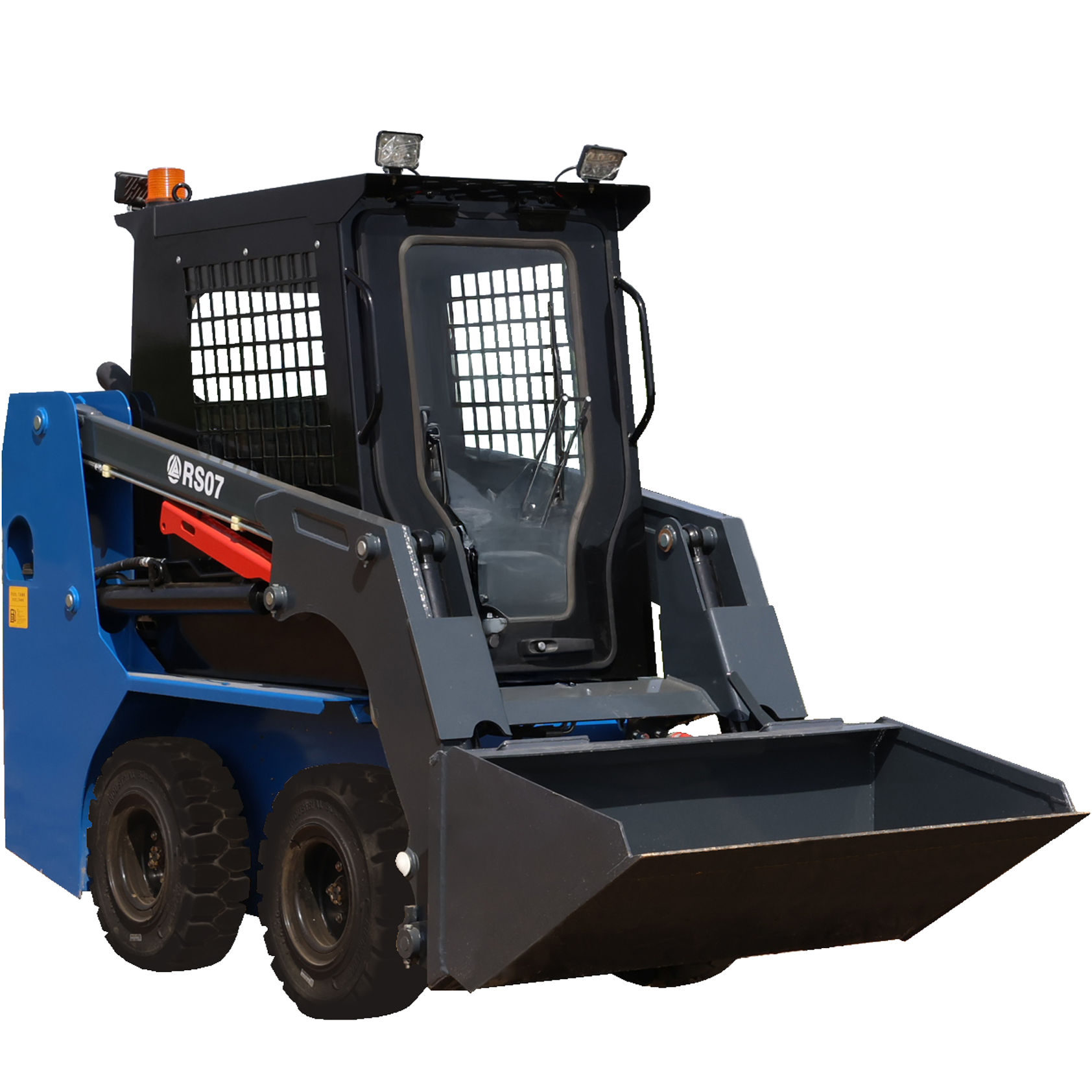

Wheels

570 mm × 160 mm / 22.44 in × 6.30 in

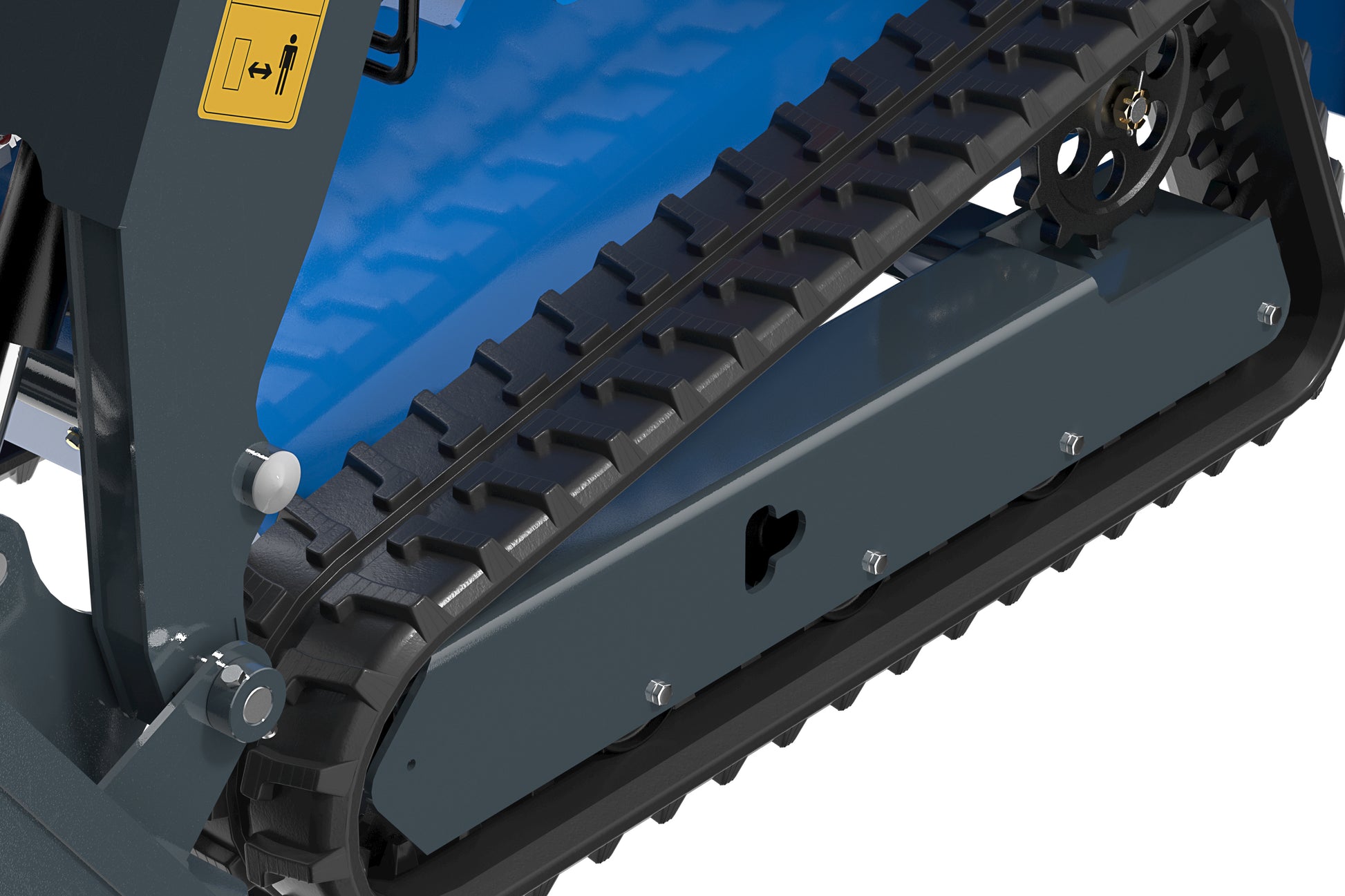

Track

230 mm × 72 mm × 45 links / 9,06 in × 2,83 in × 45 links

Hydraulic System EU / US
Main pump type / model Axial piston pump / Axial piston pump
Main pump brand Hengli / Hengli
Main pump flow 48 L/min / 12.7 US gal/min
Gear pump model 316 / 316
Gear pump brand Tianjin Walking / Tianjin Walking
Gear pump flow 48 L/min / 12.7 US gal/min
Control valve Pilot-operated multi-way valve / Pilot-operated multi-way valve
Set pressure 16 MPa / 2320 psi
Travel motor type Hengli BMER-600 / Hengli BMER-600
Travel motor brand Hengli / Hengli
Motor displacement 600 ml/r / 36.6 in³/r
