Rippa

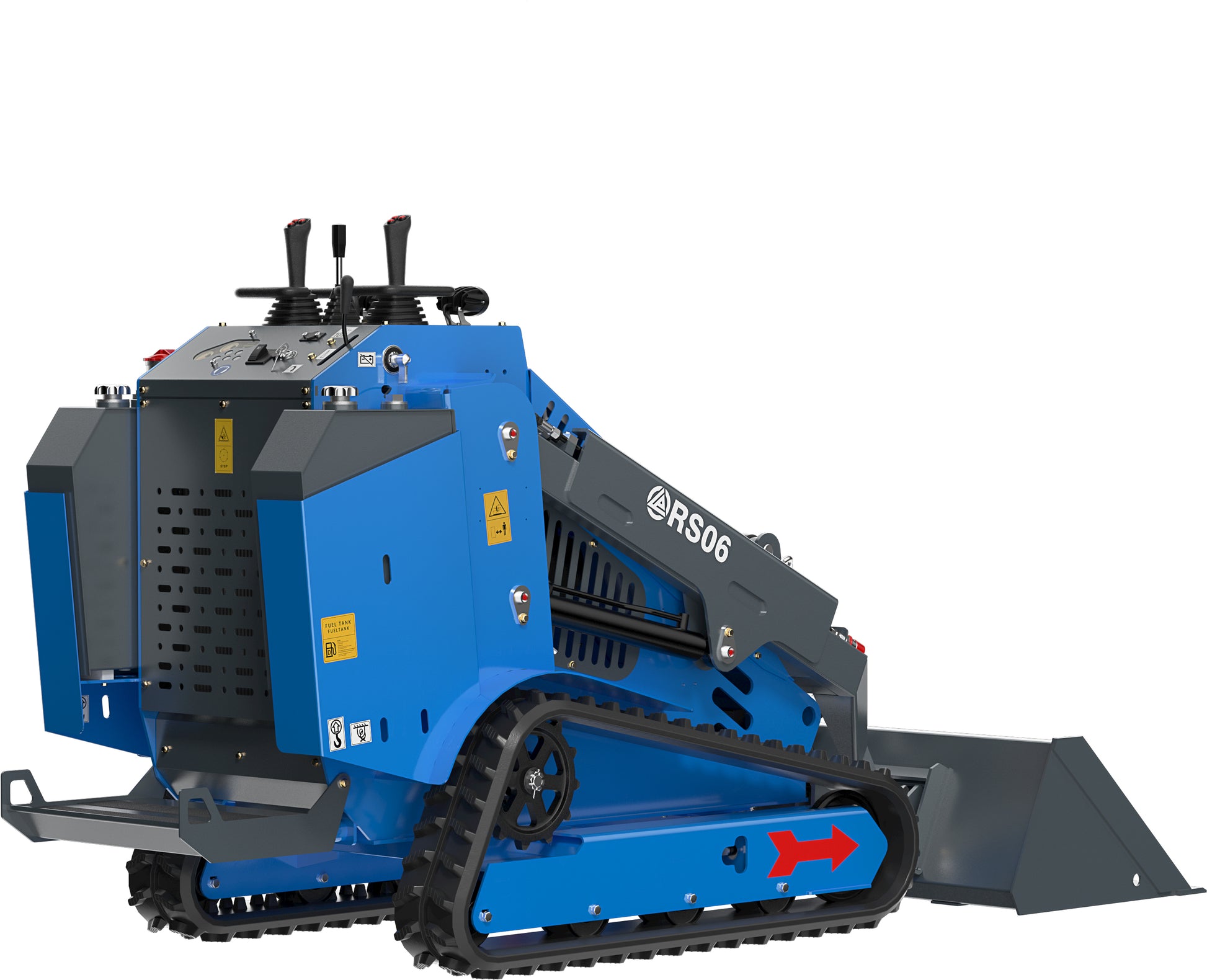

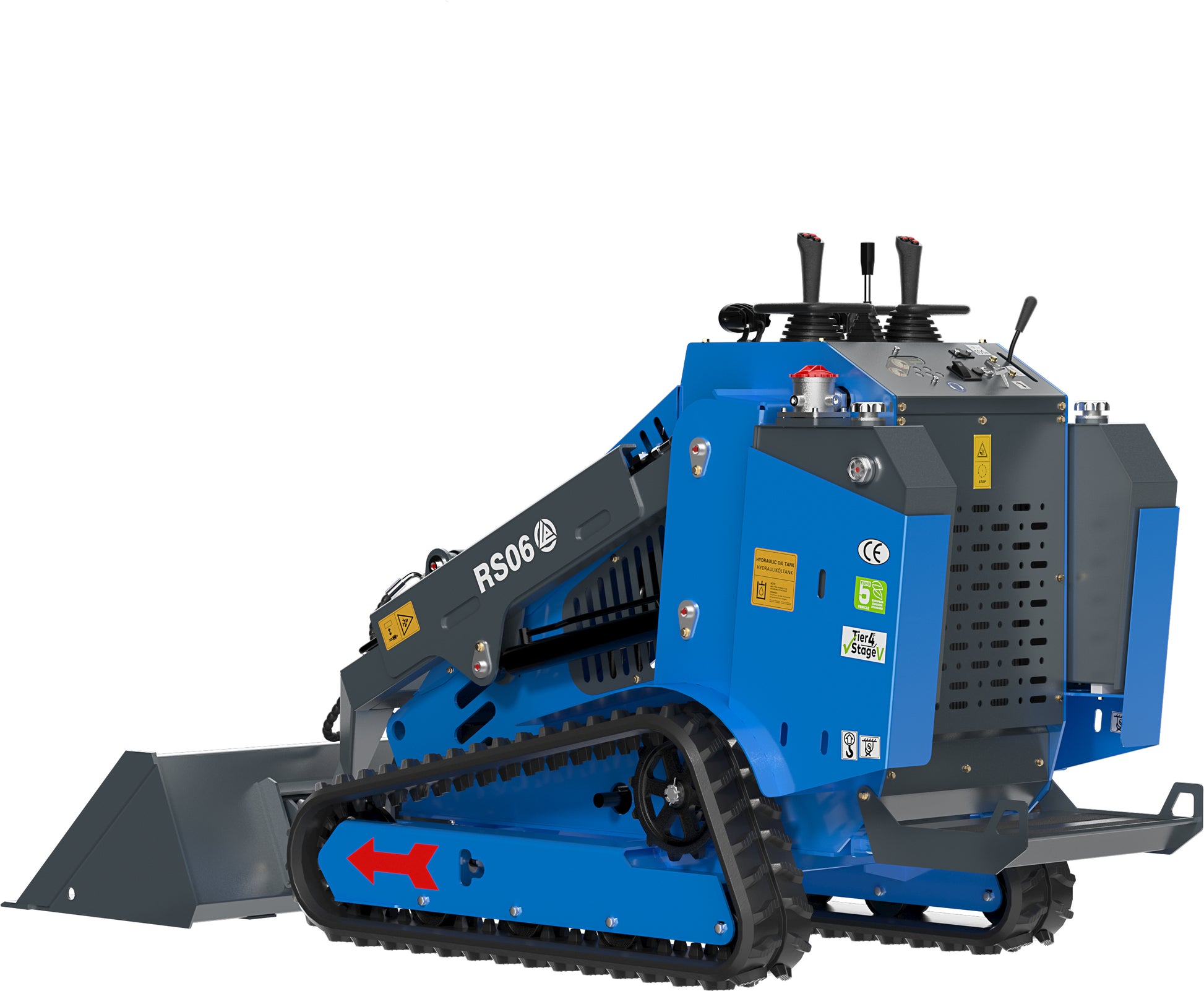

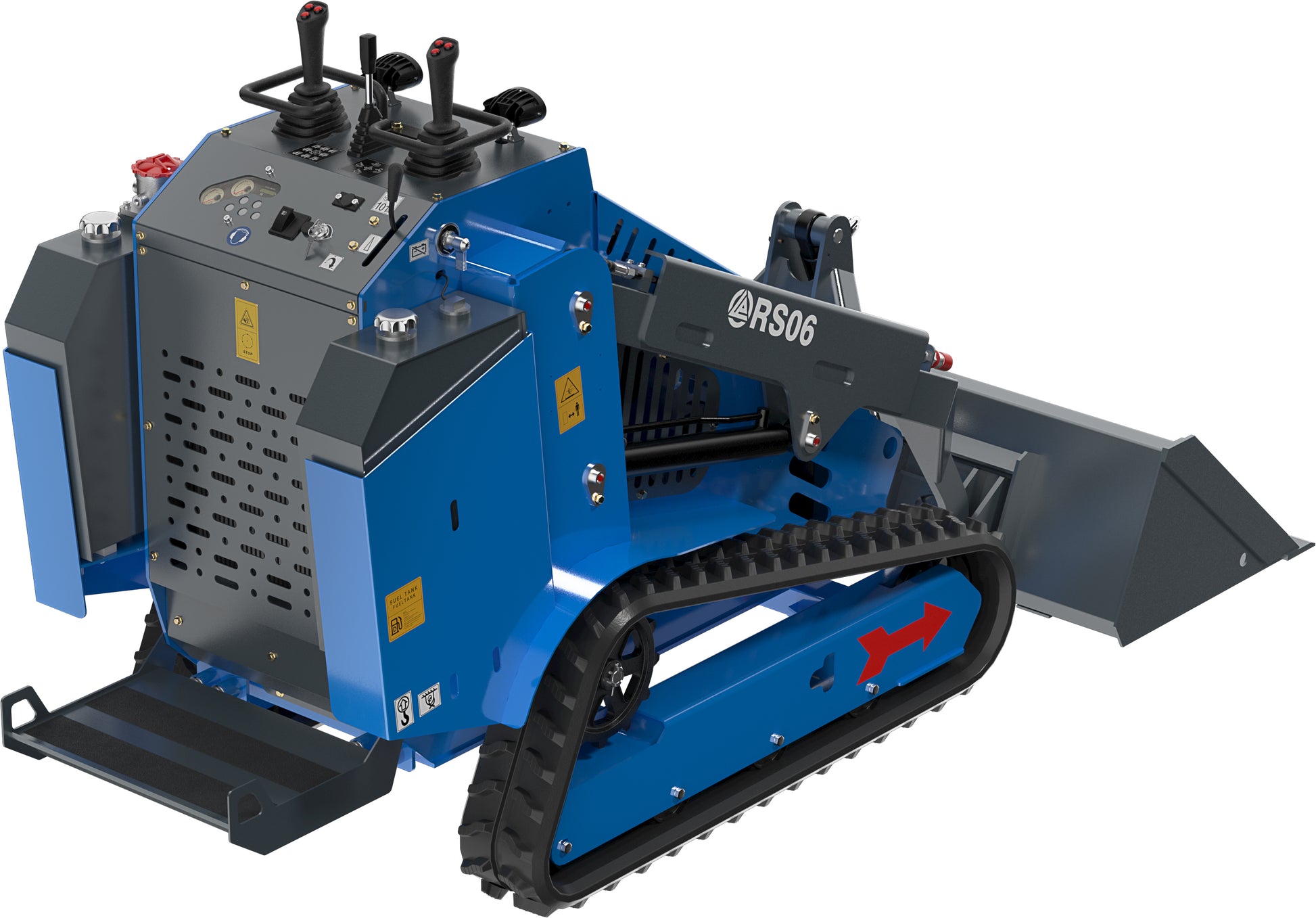

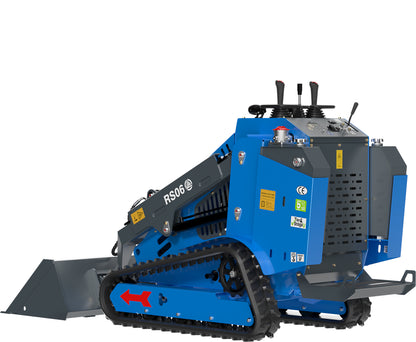

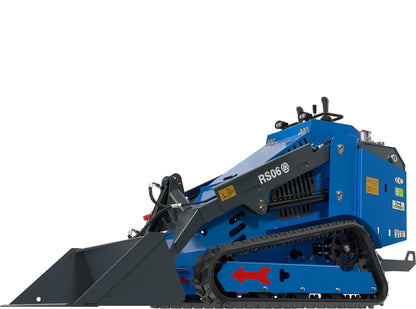

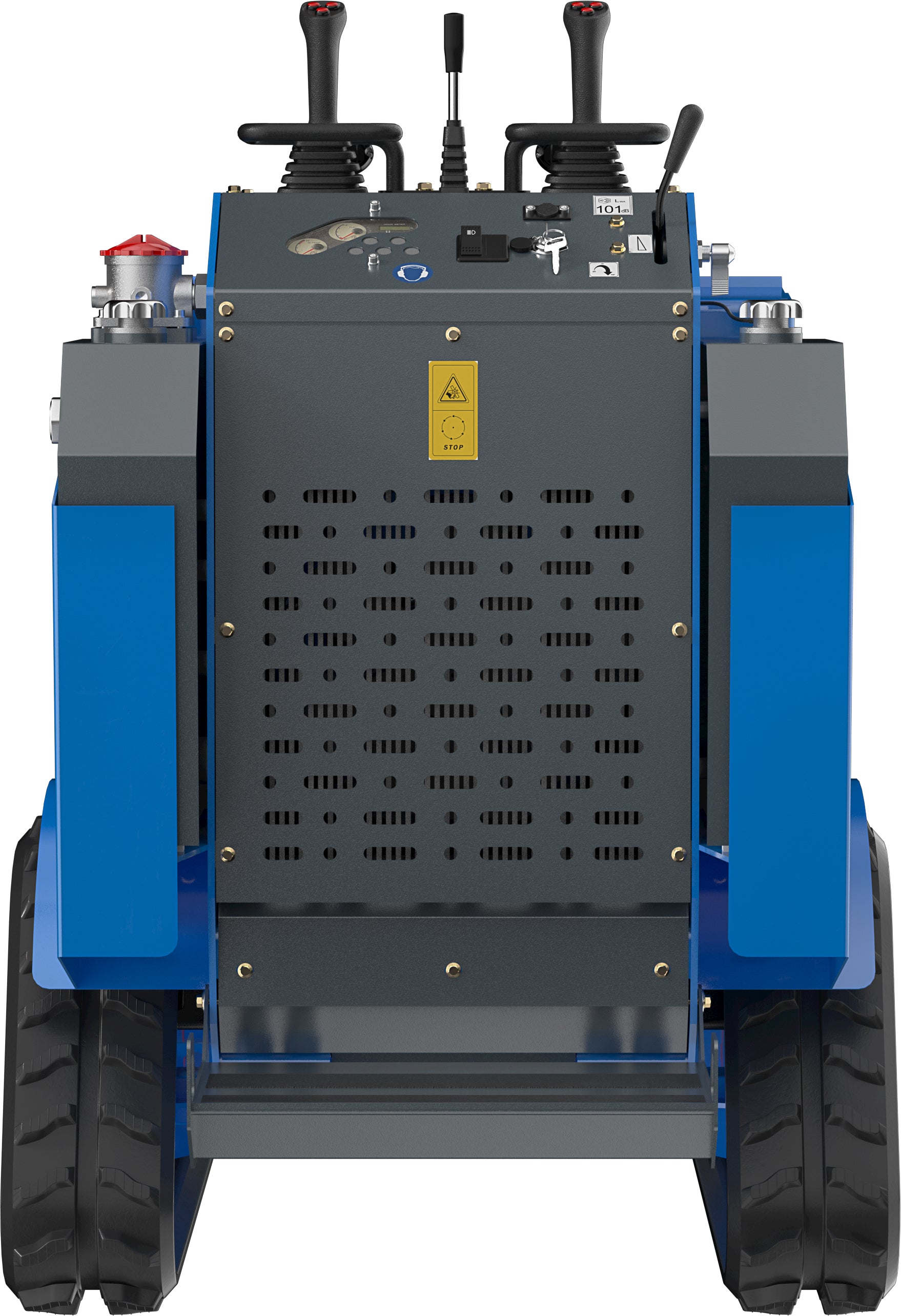

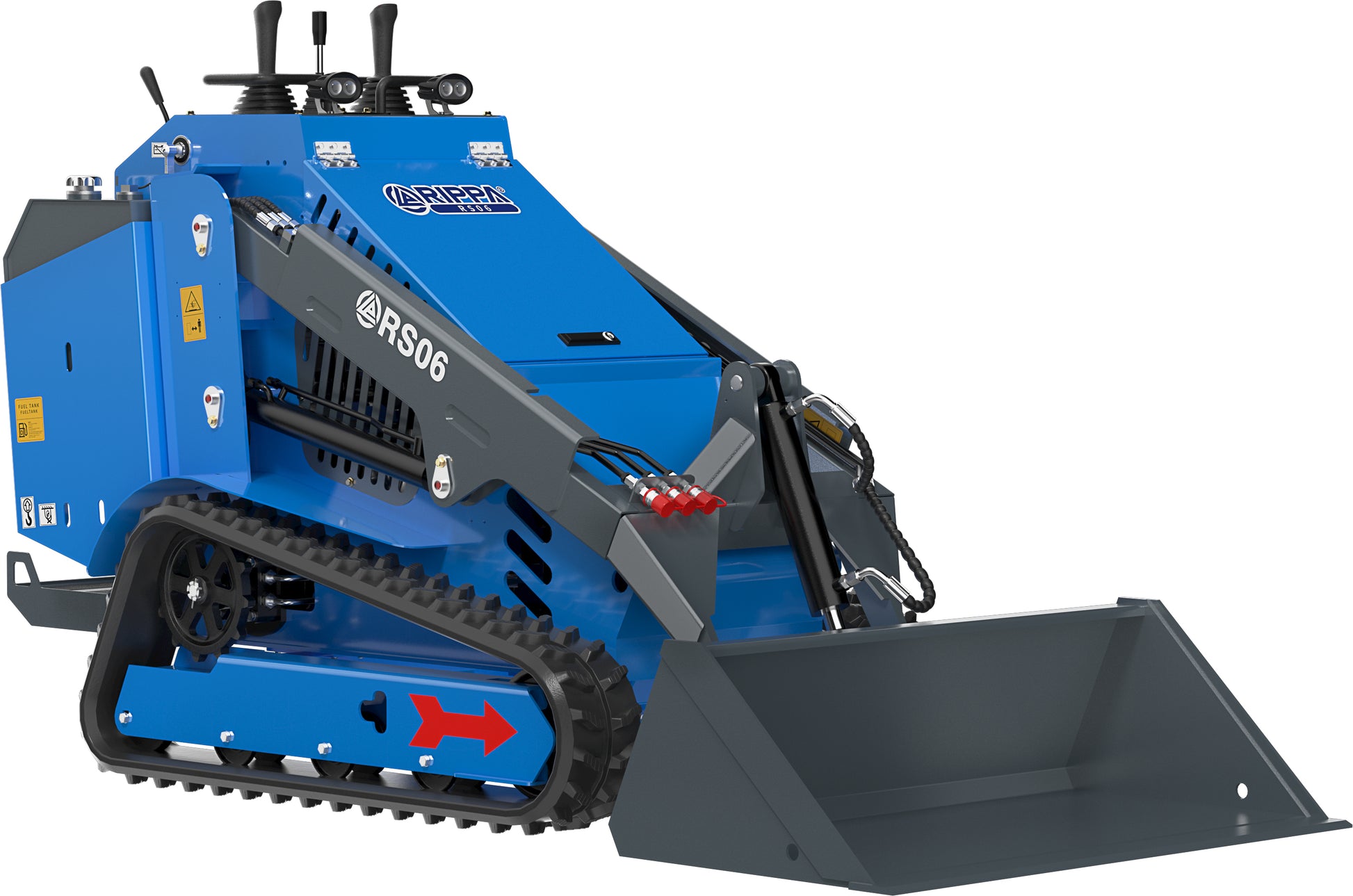

RS 06

RS 06

Regular price 9.000,00 EUR
Regular price 9.490,00 EUR Sale price 9.000,00 EUR
Sale Sold out
excl. MwSt

In stock

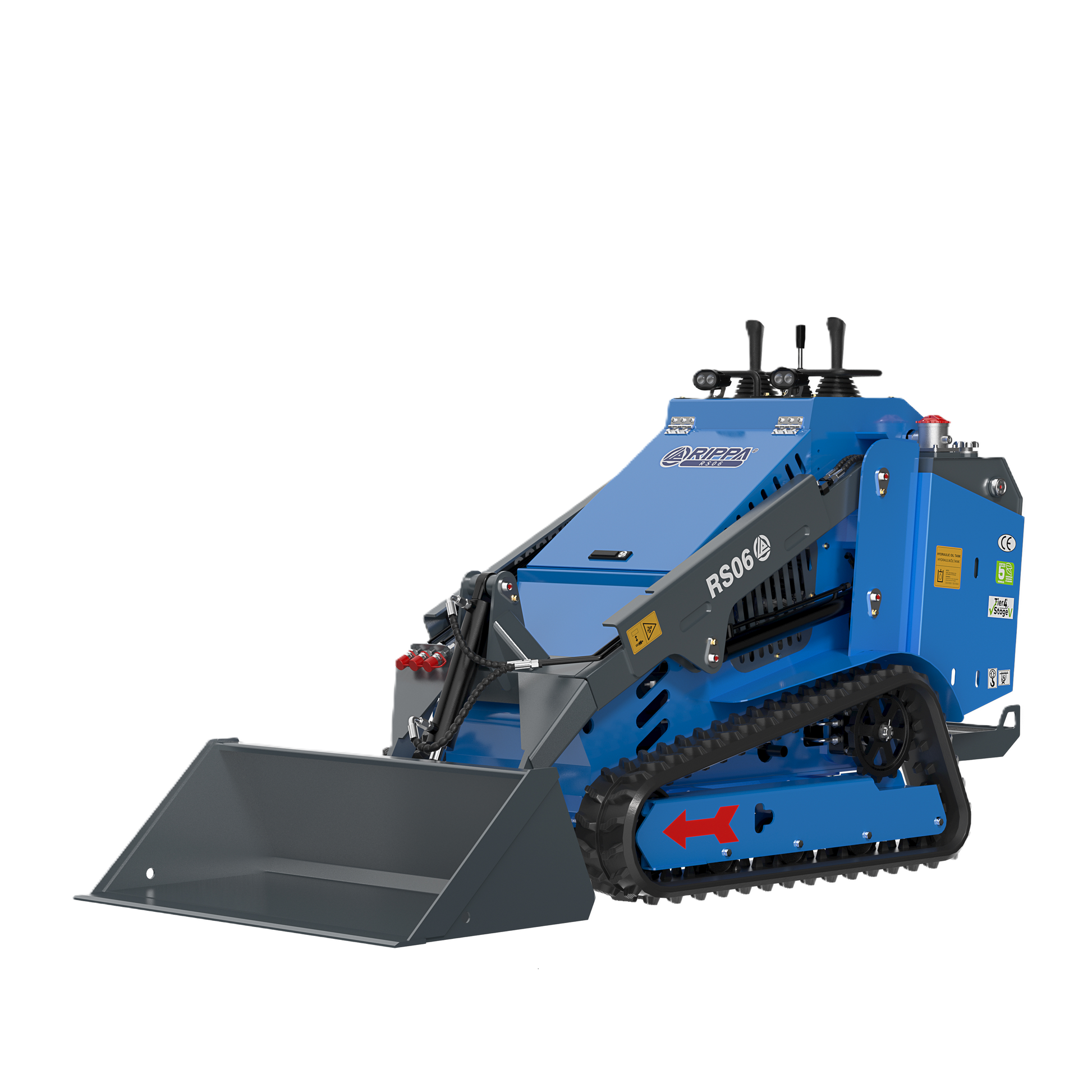

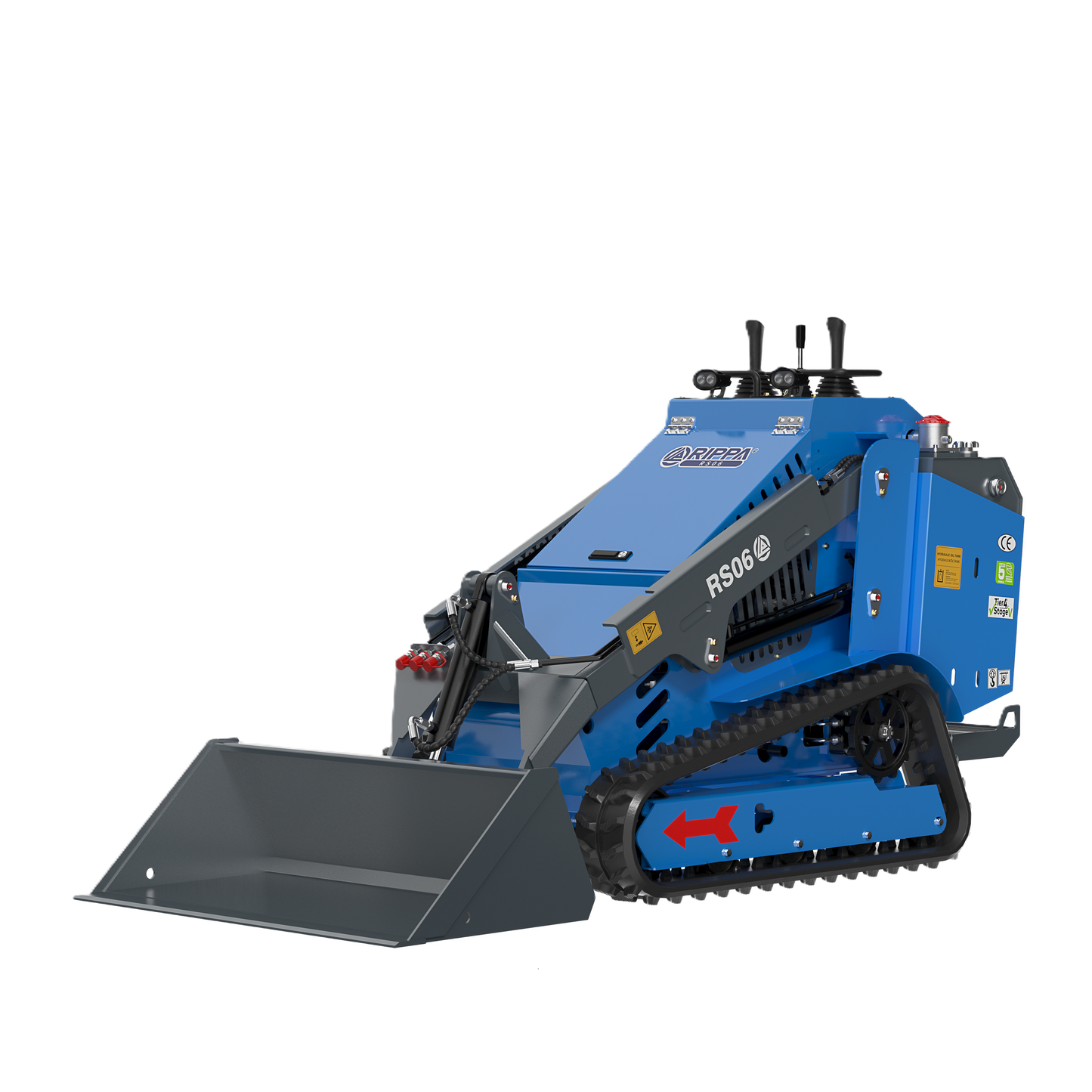

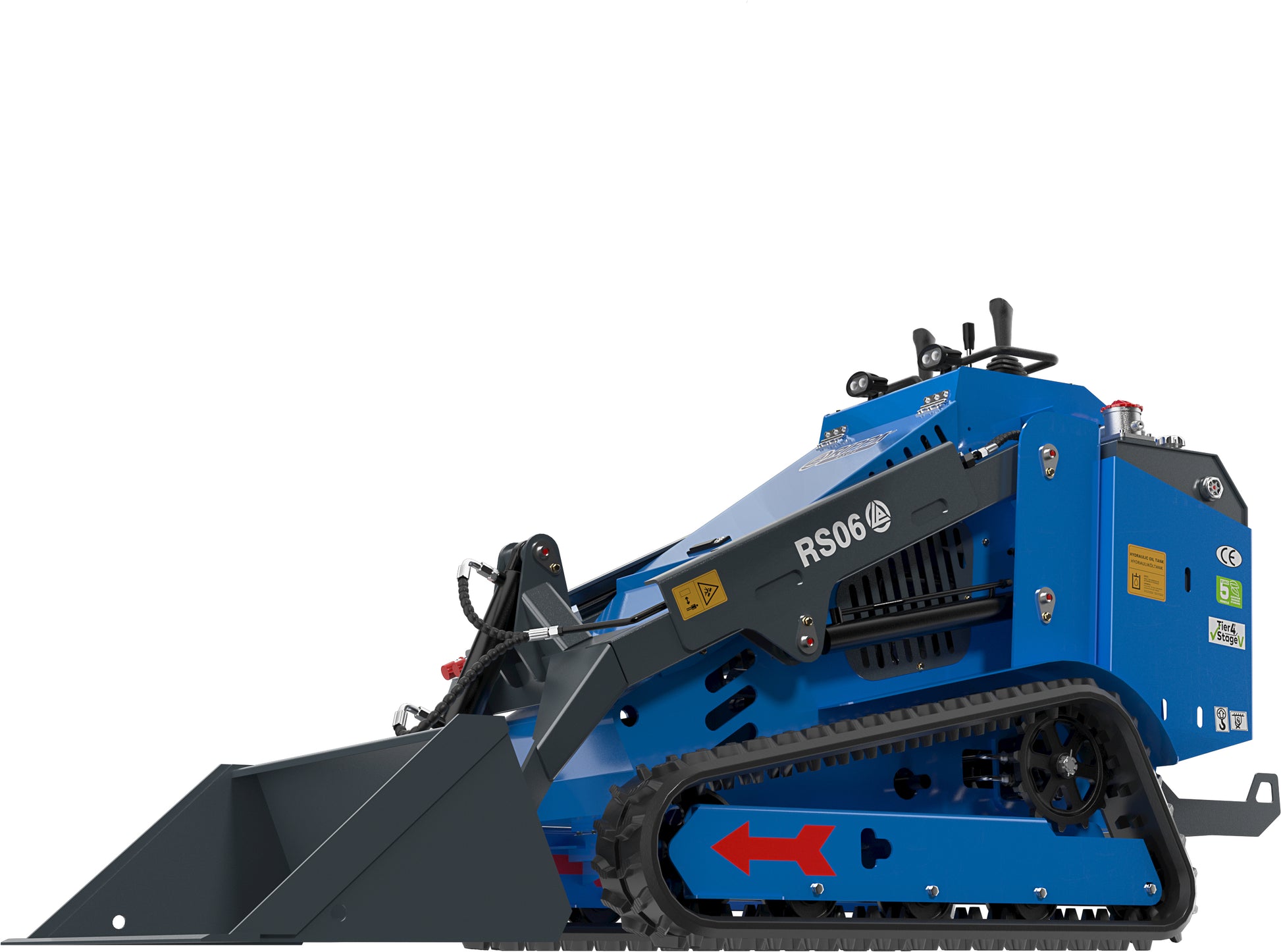

Compact, powerful, versatile!

The RS 06 compact loader is the ideal solution for construction projects, agriculture, and landscaping. With its powerful Kubota diesel engine, high load capacity, and compact dimensions, it delivers maximum efficiency in confined spaces.

Whether for material transport, earthmoving, or cleaning – thanks to a wide range of attachments, the RS 06 adapts flexibly to your requirements.

RS06 – Specifications

Basic Performance Data EU / US
Operating weight 1450 kg / 3197 lb
Bucket capacity 0.16 m³ / 5.65 ft³
Rated load 300 kg / 661 lb
Max. load 600 kg / 1323 lb
Travel speed 0–3 km/h (0–1.9 mph) / 0–6.5 km/h (0–4.0 mph)
Gradeability 28 % / 28 %
Ground pressure 32.5 kPa / 4.71 psi
Max. dumping height 1550 mm / 61.0 in
Max. loading height 2530 mm / 99.6 in
Max. dumping reach 645 mm / 25.4 in
Min. ground clearance 163 mm / 6.42 in
Engine EU / US
Brand / Model Kubota D1105
Max. horsepower 25 PS / 24.6 hp
Max. power 18.2 kW / 24.4 hp
Max. speed 3000 rpm
Displacement 1.123 L / 68.5 in³
Cylinders 3
Cooling method Water-cooled
Engine oil capacity 4 L / 4.23 qt
Fuel type / grade Diesel (No. 0 / -10)
Theoretical consumption 1.3–1.5 L/h / 0.34–0.40 US gal/h
Dimensions EU / US
Transport length with bucket 2710 mm / 106.7 in
Transport length without bucket 2220 mm / 87.4 in
Transport width 1150 mm / 45.3 in
Transport height 1522 mm / 59.9 in
Bucket width 1150 mm / 45.3 in
Tanks EU / US
Fuel tank 20 L / 5.28 US gal
Hydraulic oil tank 28 L / 7.39 US gal

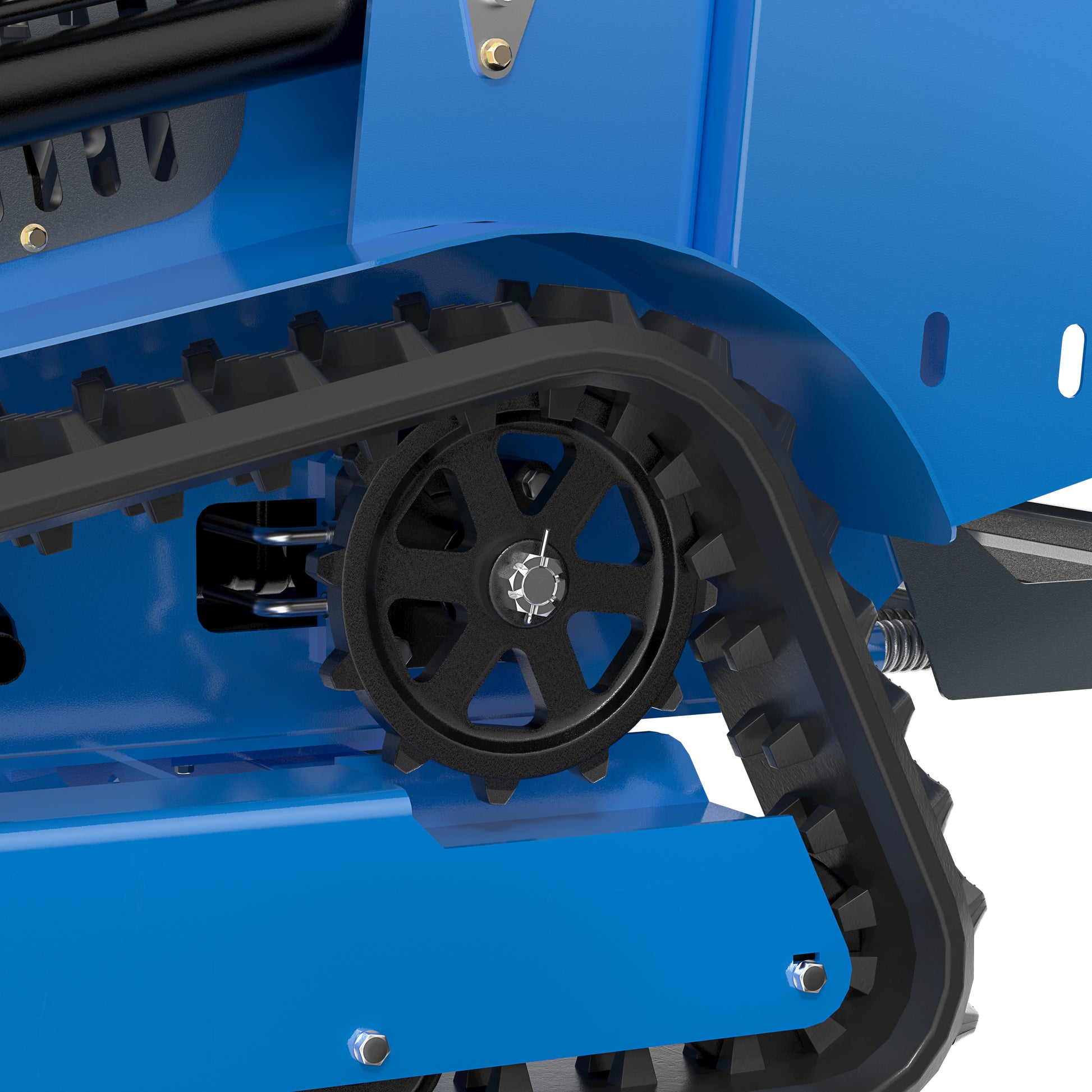

Track EU / US
Dimensions 230 mm × 72 mm × 45 links / 9.06 in × 2.83 in × 45 links

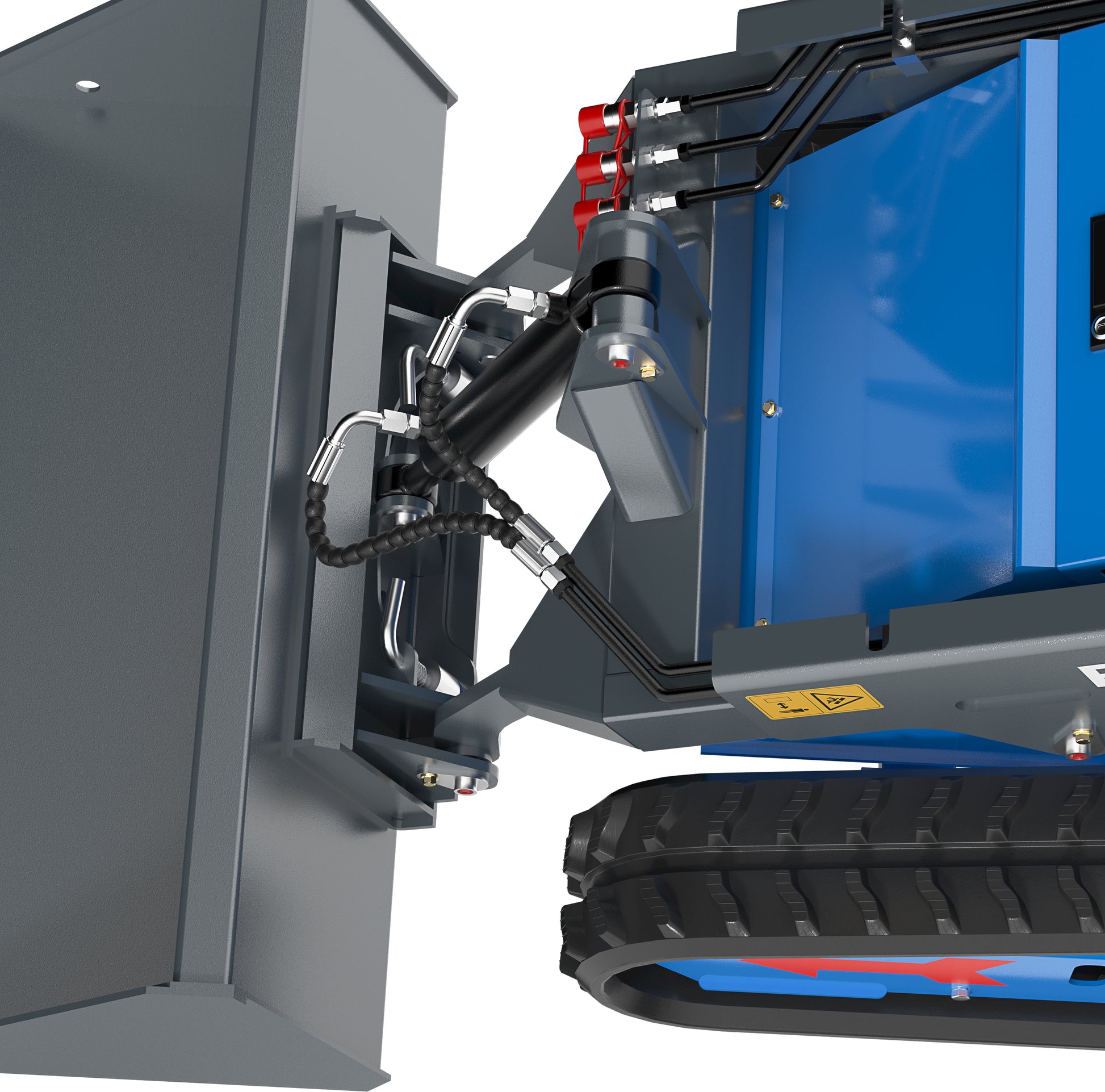

Hydraulic System EU / US
Main pump type / model Plunger Pump (HYTEK)
Max. flow main pump 112.5 L/min / 29.7 US gal/min
Control valve Load-sensing control valve
Set pressure 22.5 MPa / 3263 psi
Travel motor Two-stage travel motor (Paiyi) – 390 ml/r / 23.8 in³/r
