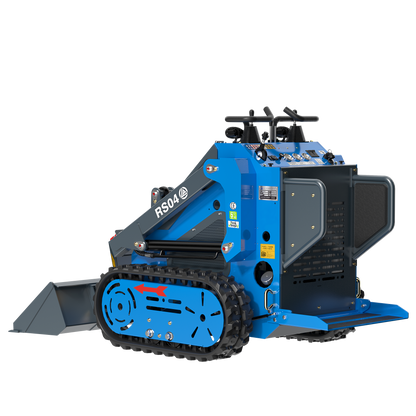

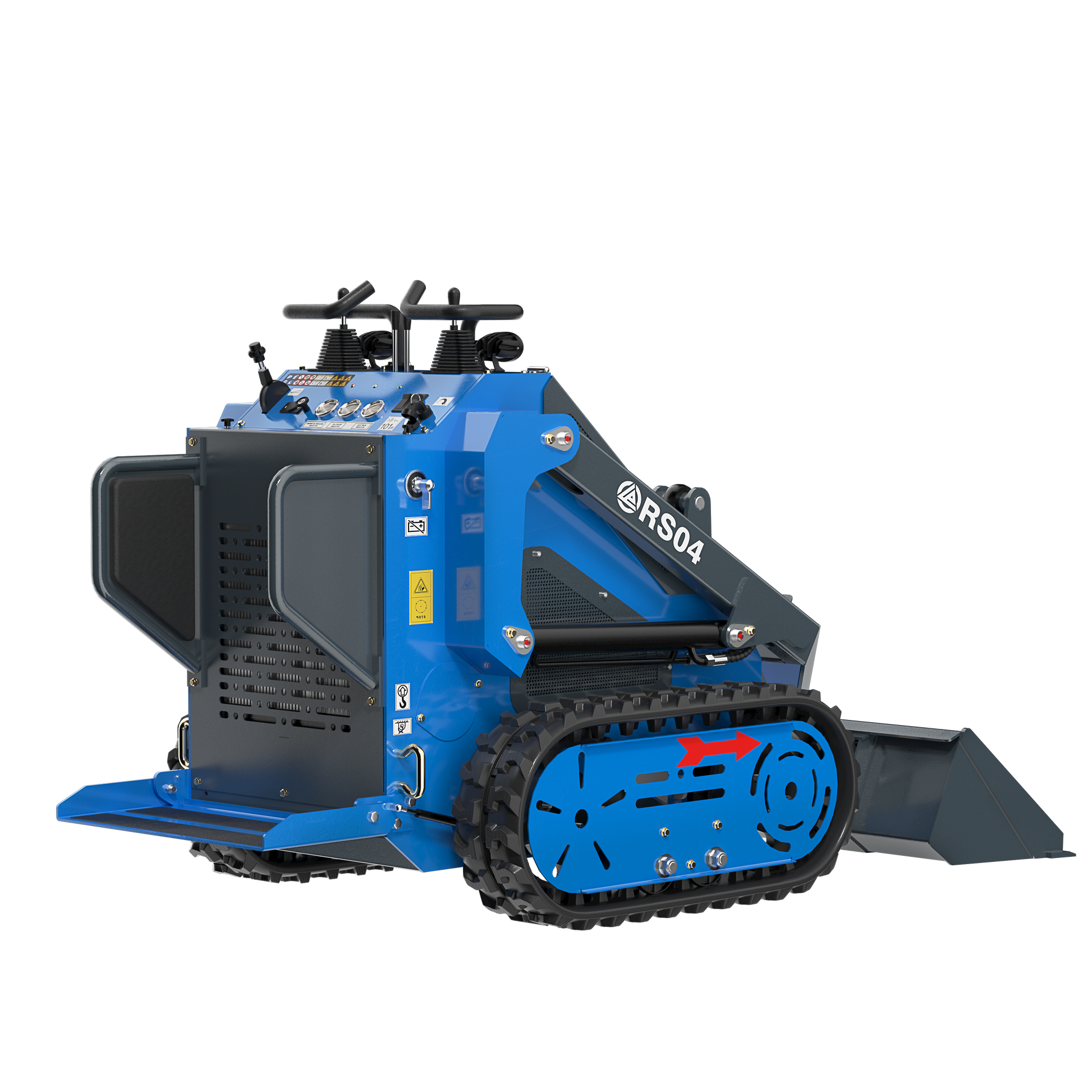

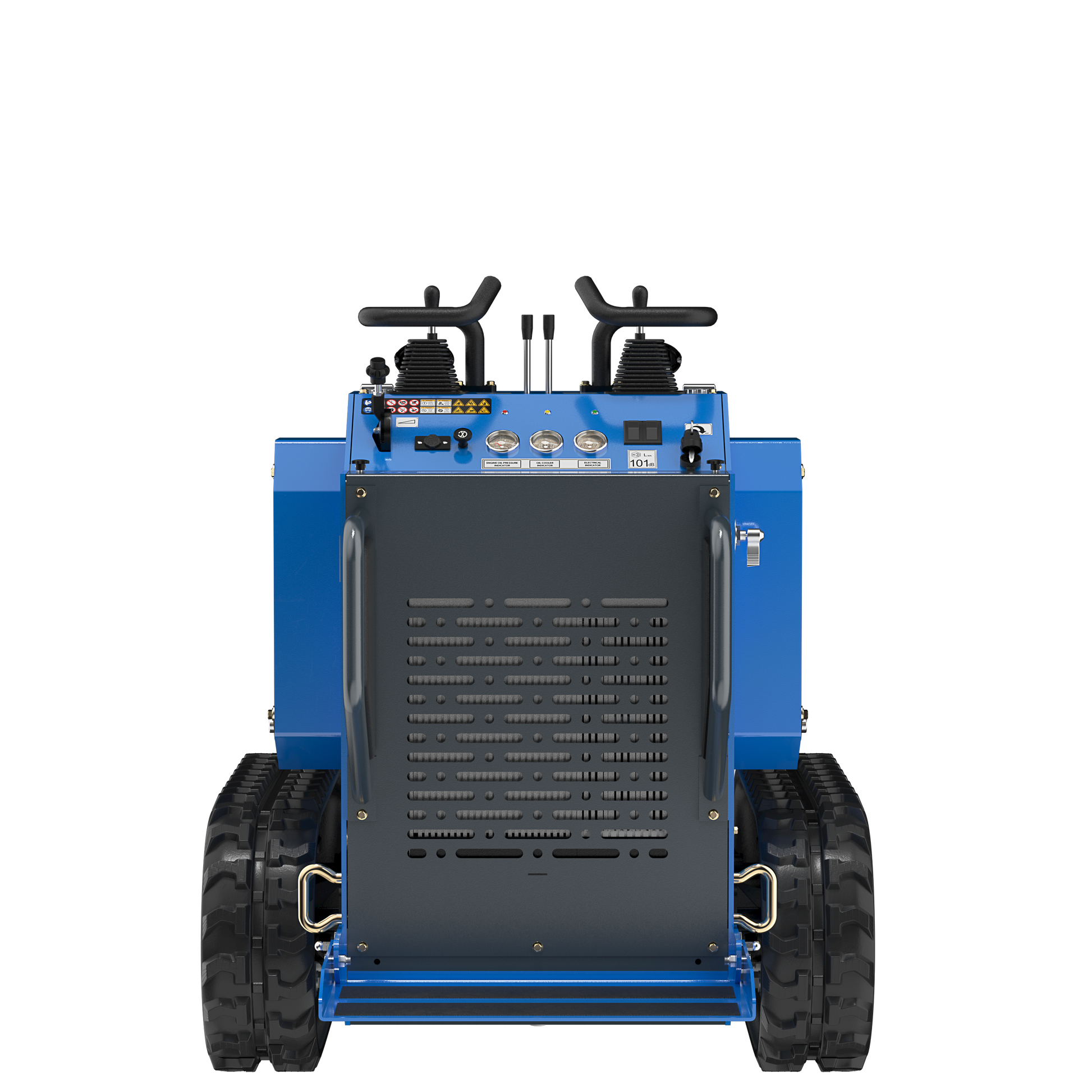

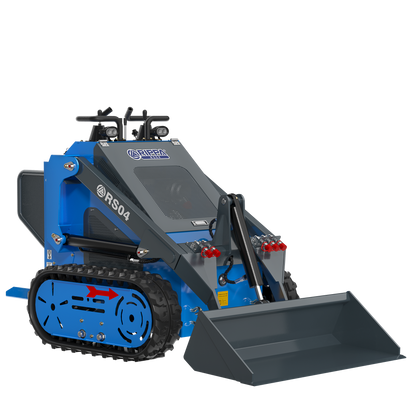

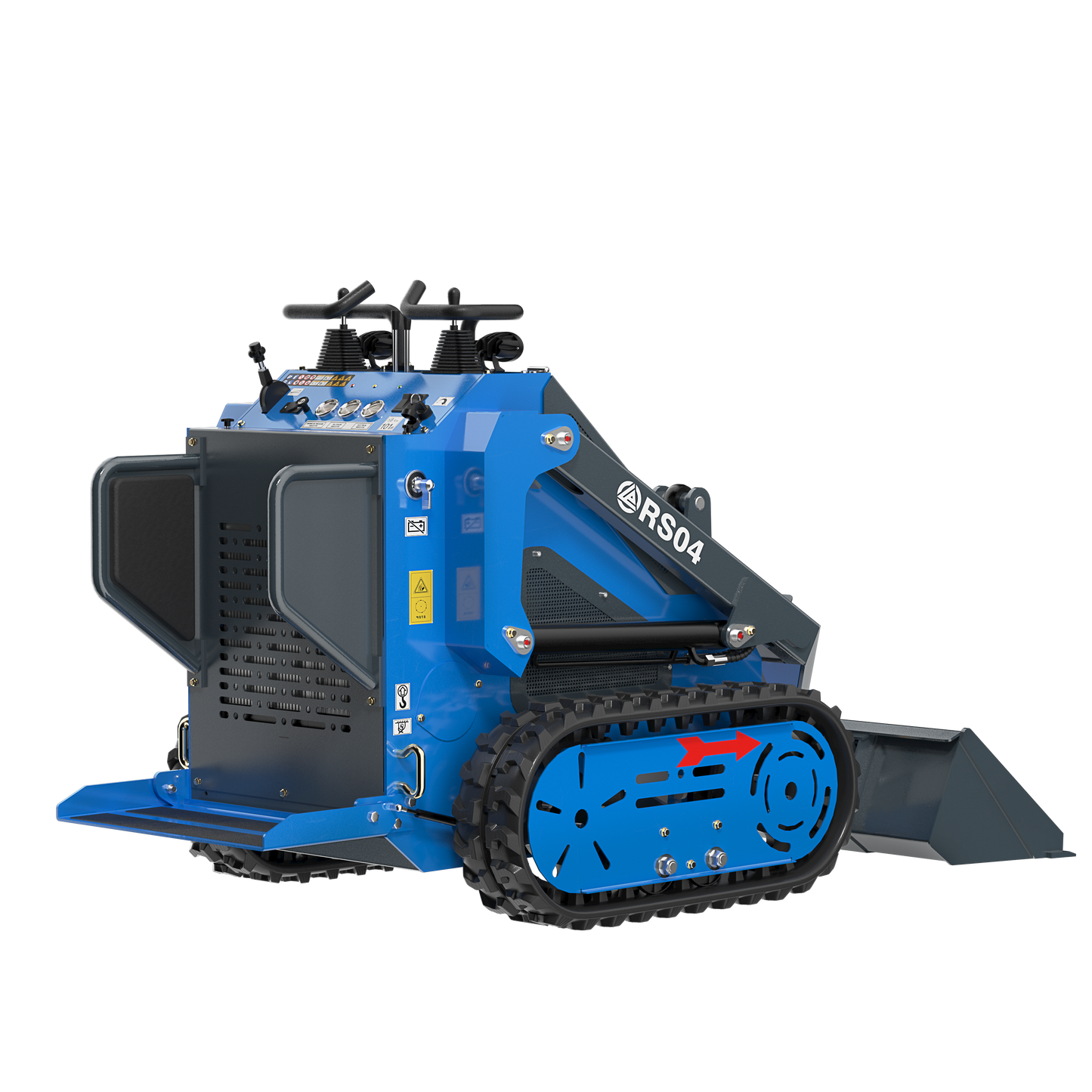

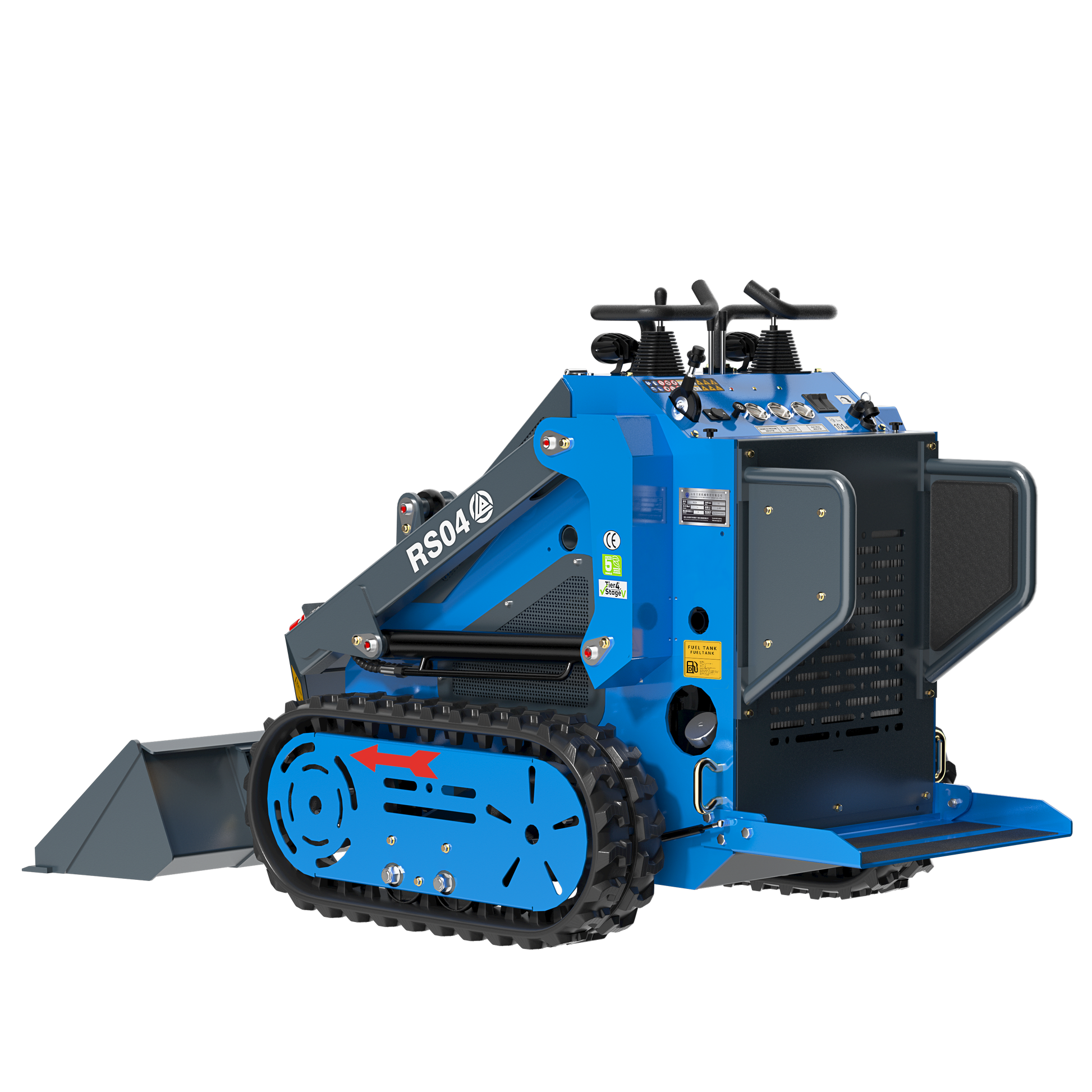

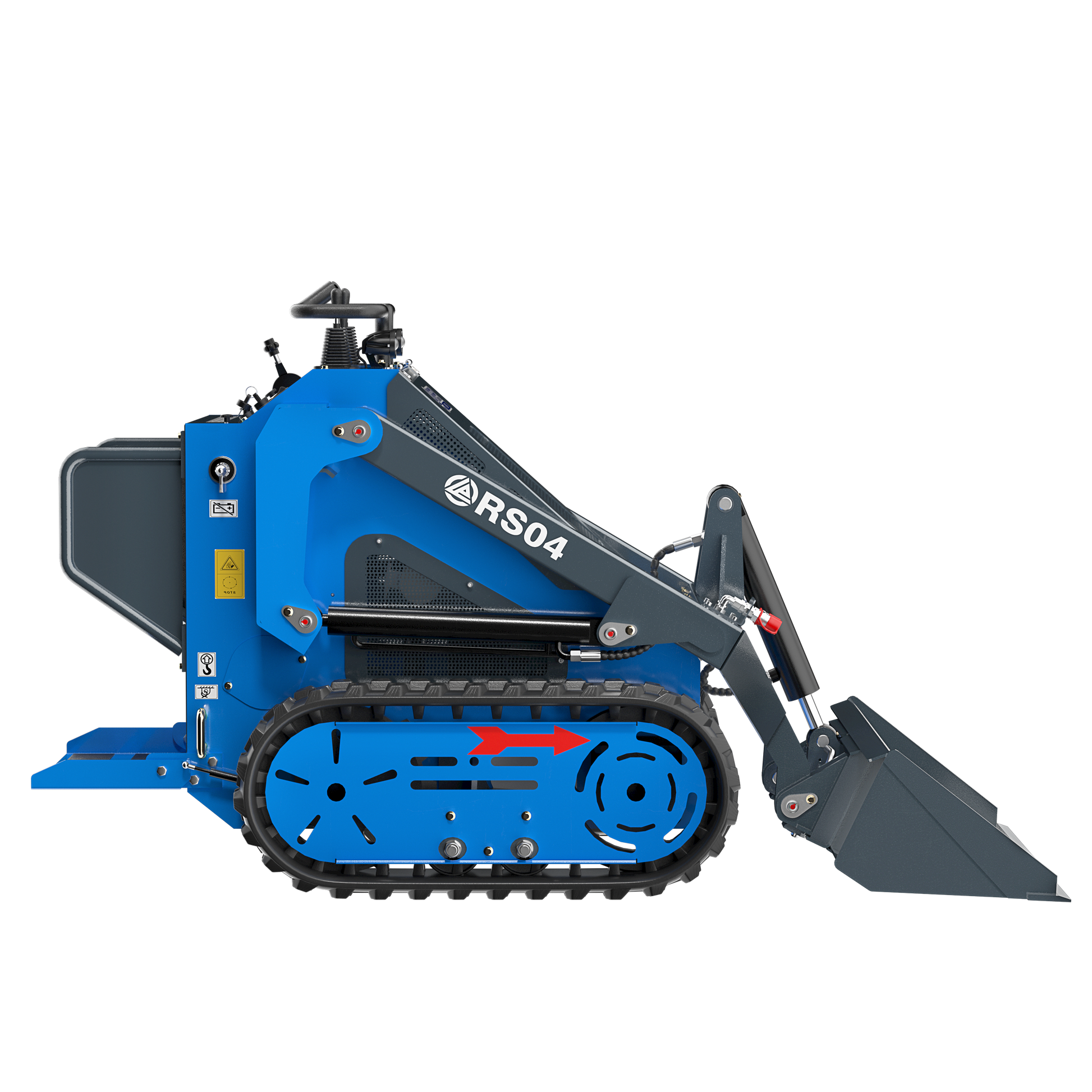

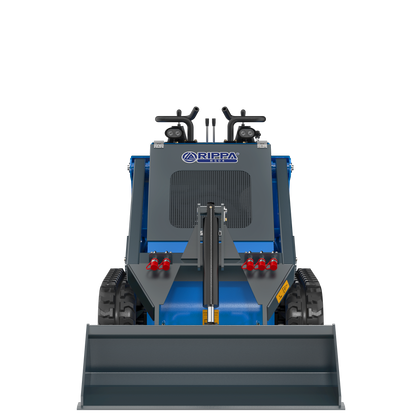

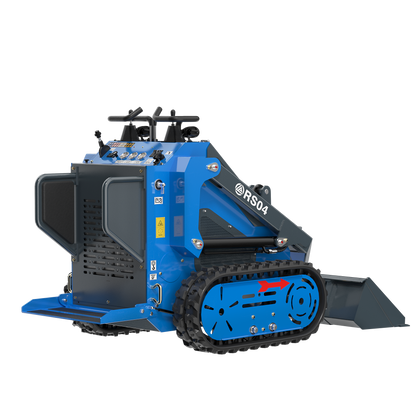

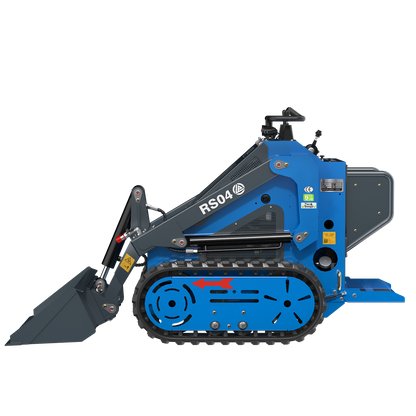

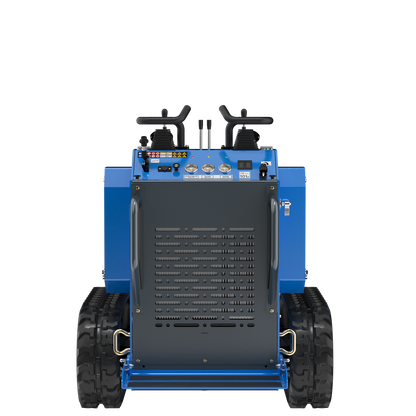

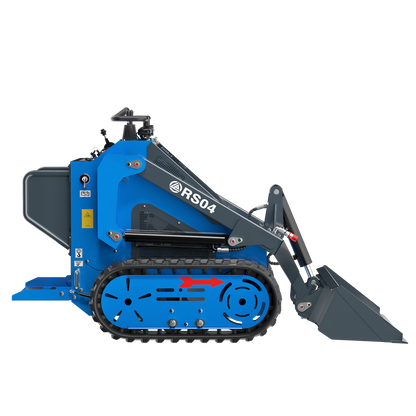

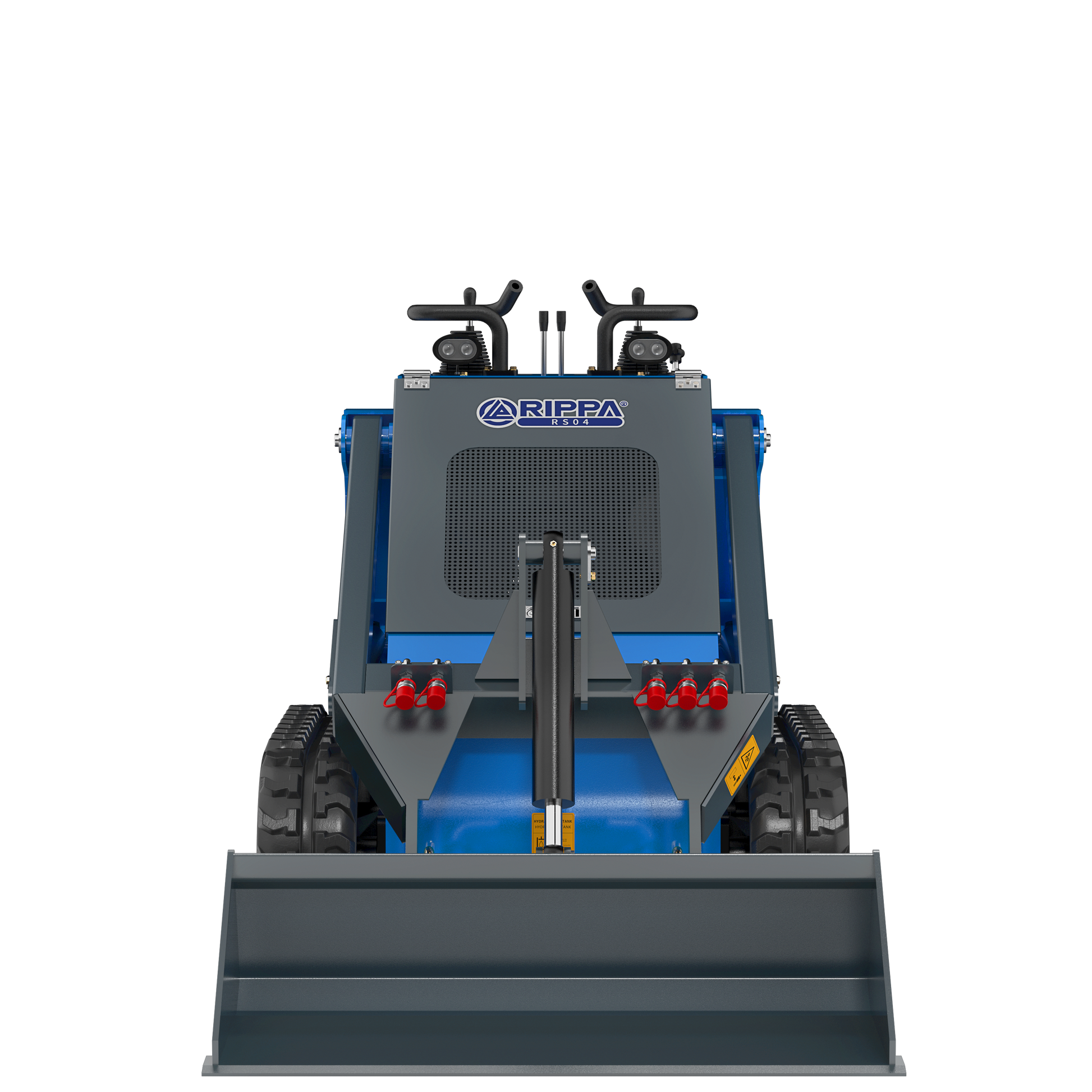

Rippa

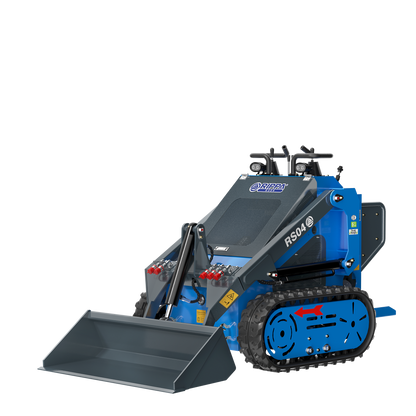

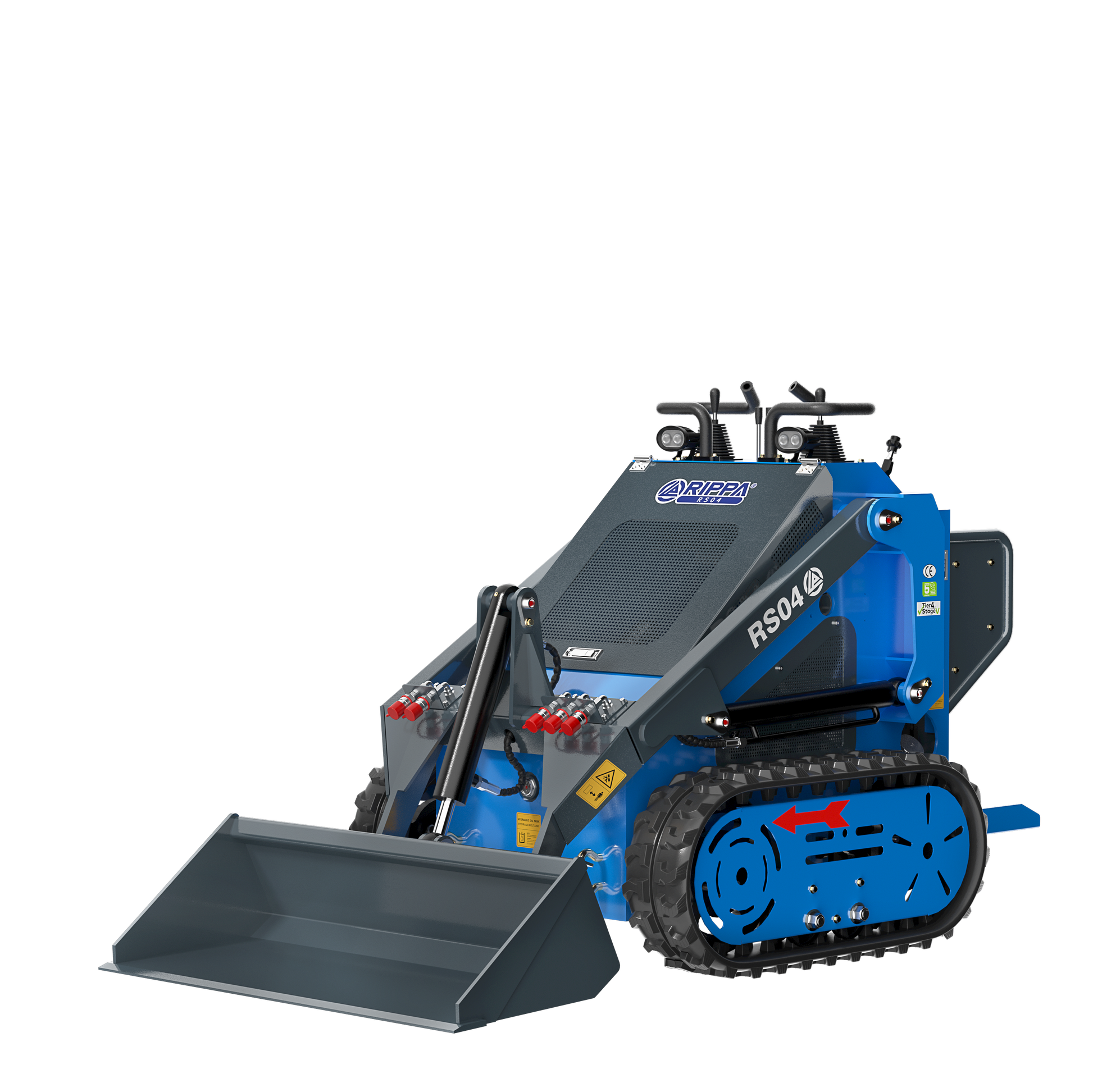

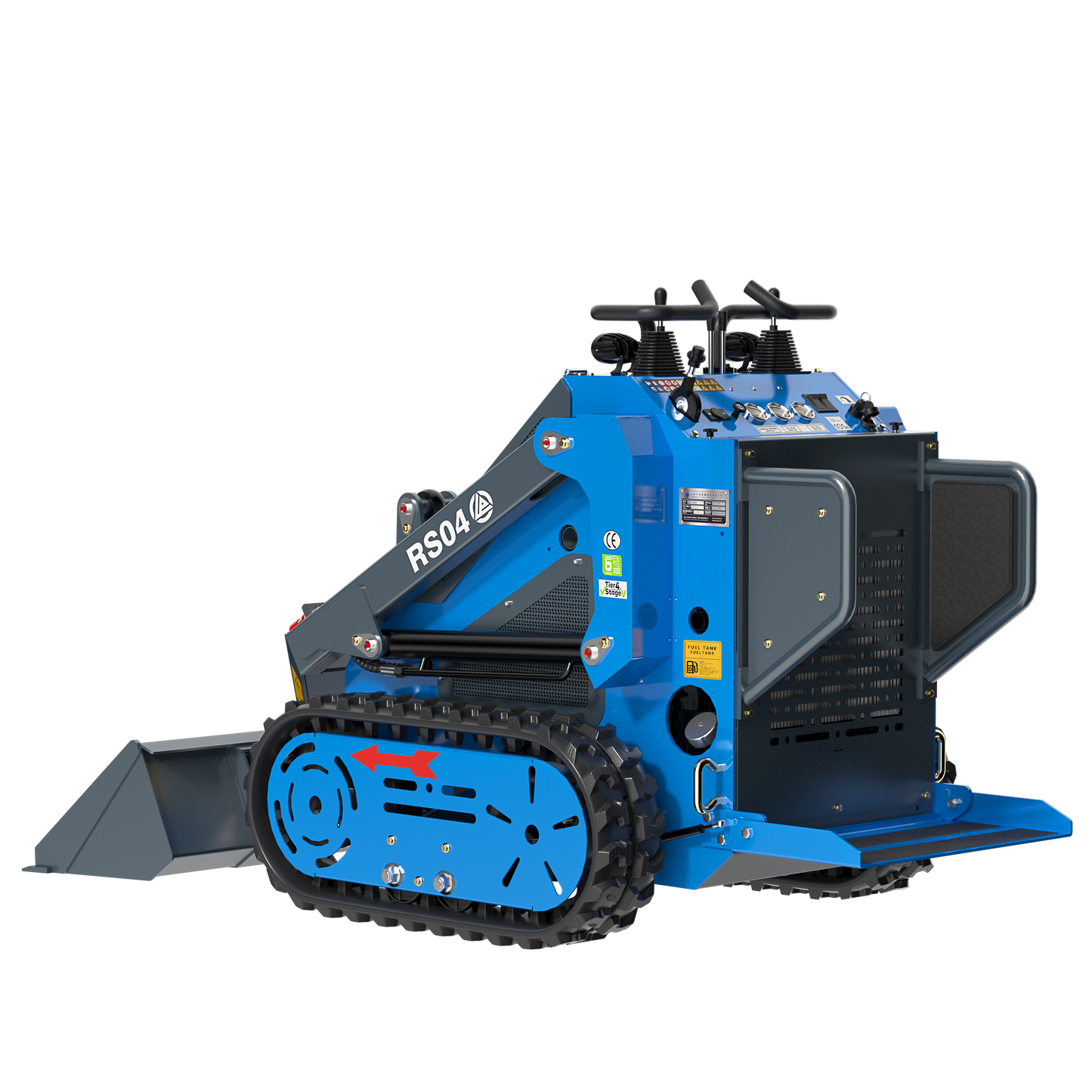

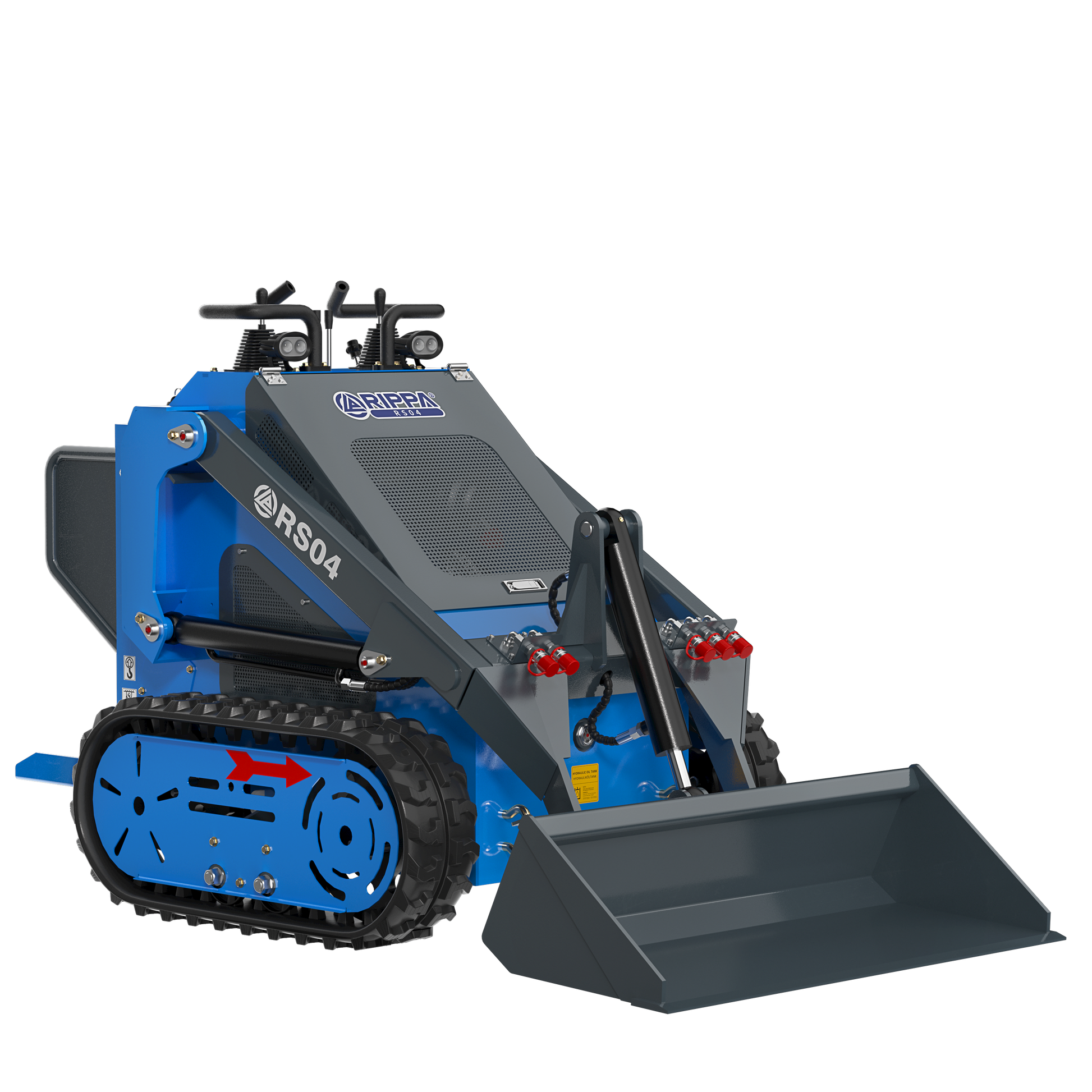

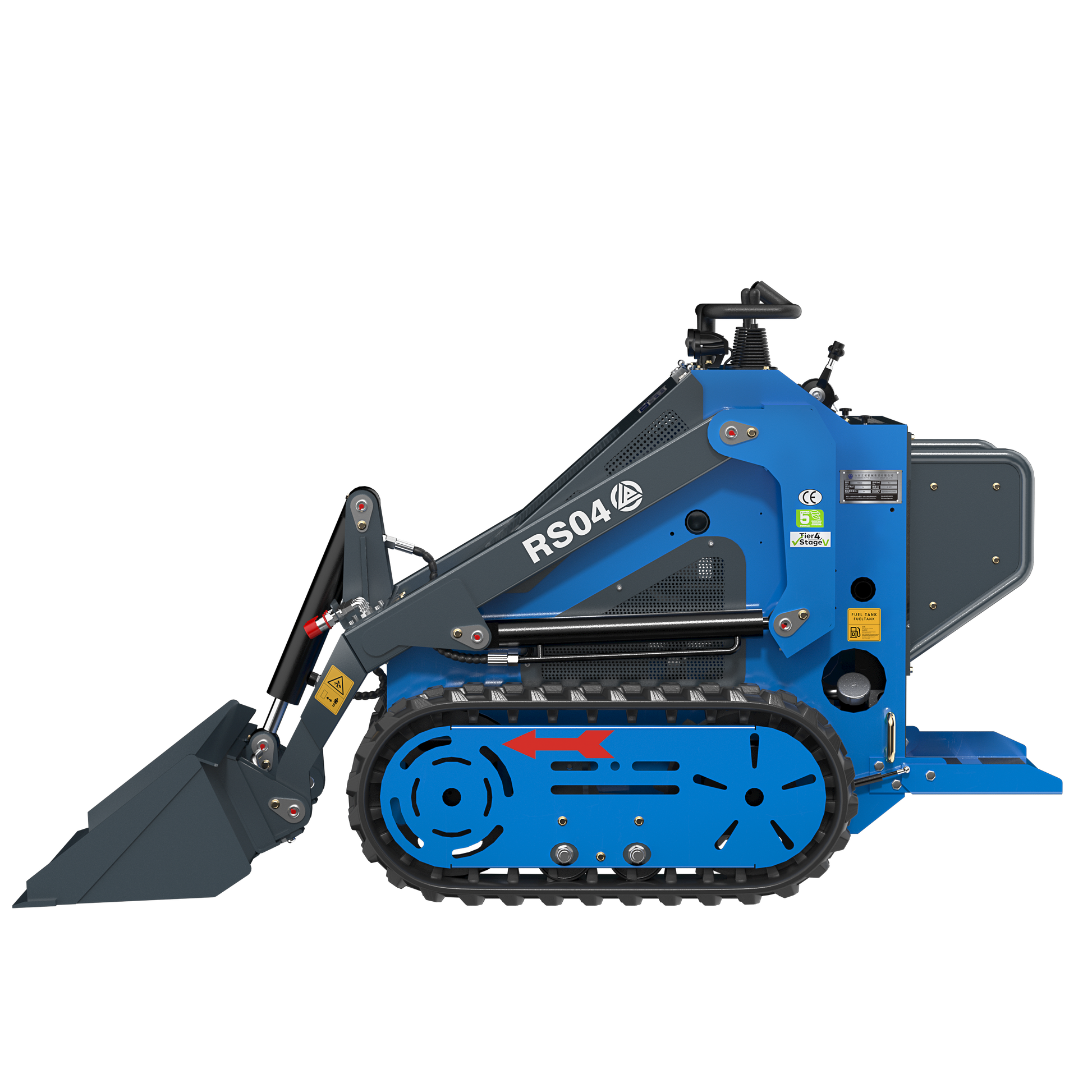

RS 04

RS 04

Regular price 5.490,00 EUR
Regular price Sale price 5.490,00 EUR
Sale Sold out
excl. MwSt

In stock

Compact, powerful, versatile!

The Skid Loader RS 04 is the ideal solution for construction projects, agriculture, and landscaping. With its powerful Kubota diesel engine, high load capacity, and compact dimensions, it offers maximum efficiency in tight spaces.

Whether material transport, earthworks, or cleaning – thanks to numerous attachments, the RS 04 adapts flexibly to your requirements.

RS04 – Specifications

Engine EU / US
Brand Kubota / Kubota
Model Z482 / Z482
Cylinders 2 / 2
Displacement 0.479 L / 0.126 gal
Cooling Water-cooled / Water-cooled
Fuel Diesel / Diesel
Fuel consumption 0.8–1.2 L/h / 0.21–0.32 gal/h
Oil capacity 2.5 L / 0.66 gal
Max. speed 3600 rpm / 3600 rpm
Max. power 8.3 kW / 11.1 hp
Dimensions & Weight EU / US
Transport length with bucket 1970 mm / 77.6 in
Transport length without bucket 1520 mm / 59.8 in
Transport width 1150 mm / 45.3 in
Transport height 1300 mm / 51.2 in
Bucket width 1150 mm / 45.3 in
Operating weight 890 kg / 1958 lb
Ground clearance 108 mm / 4.3 in
Performance & Load EU / US
Rated load 175 kg / 385 lb
Max. load 400 kg / 880 lb
Max. dumping height 1553 mm / 61.1 in
Max. loading height 2080 mm / 81.9 in
Max. dumping reach 550 mm / 21.7 in
Gradeability 25 % / 25 %
Ground pressure 25.1 kPa / 3.7 psi

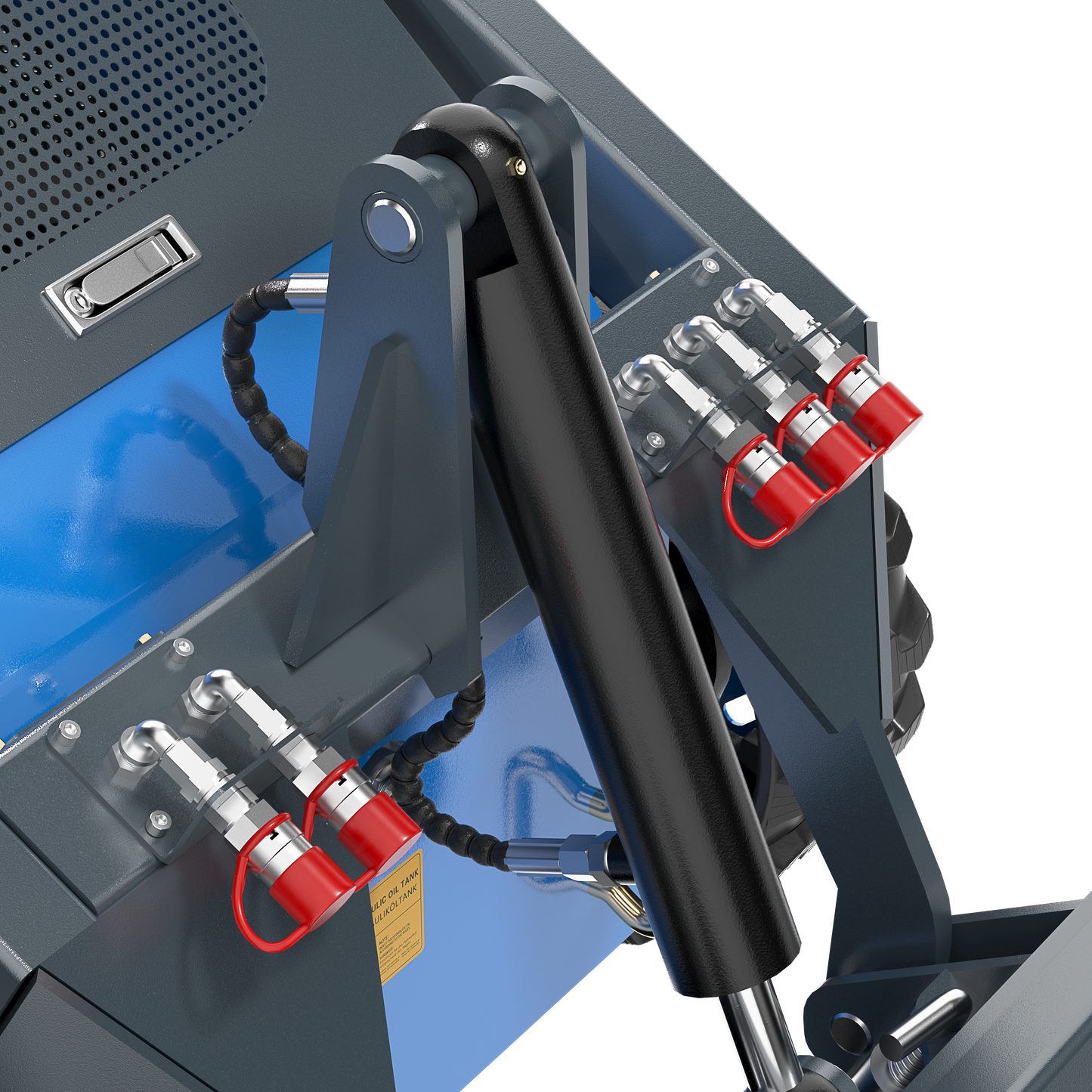

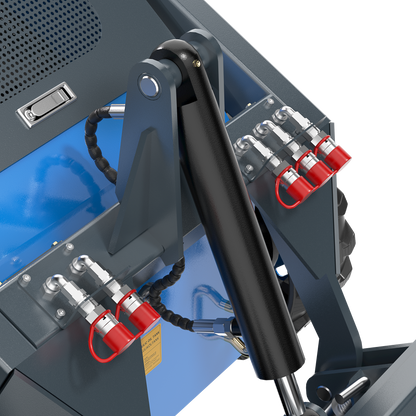

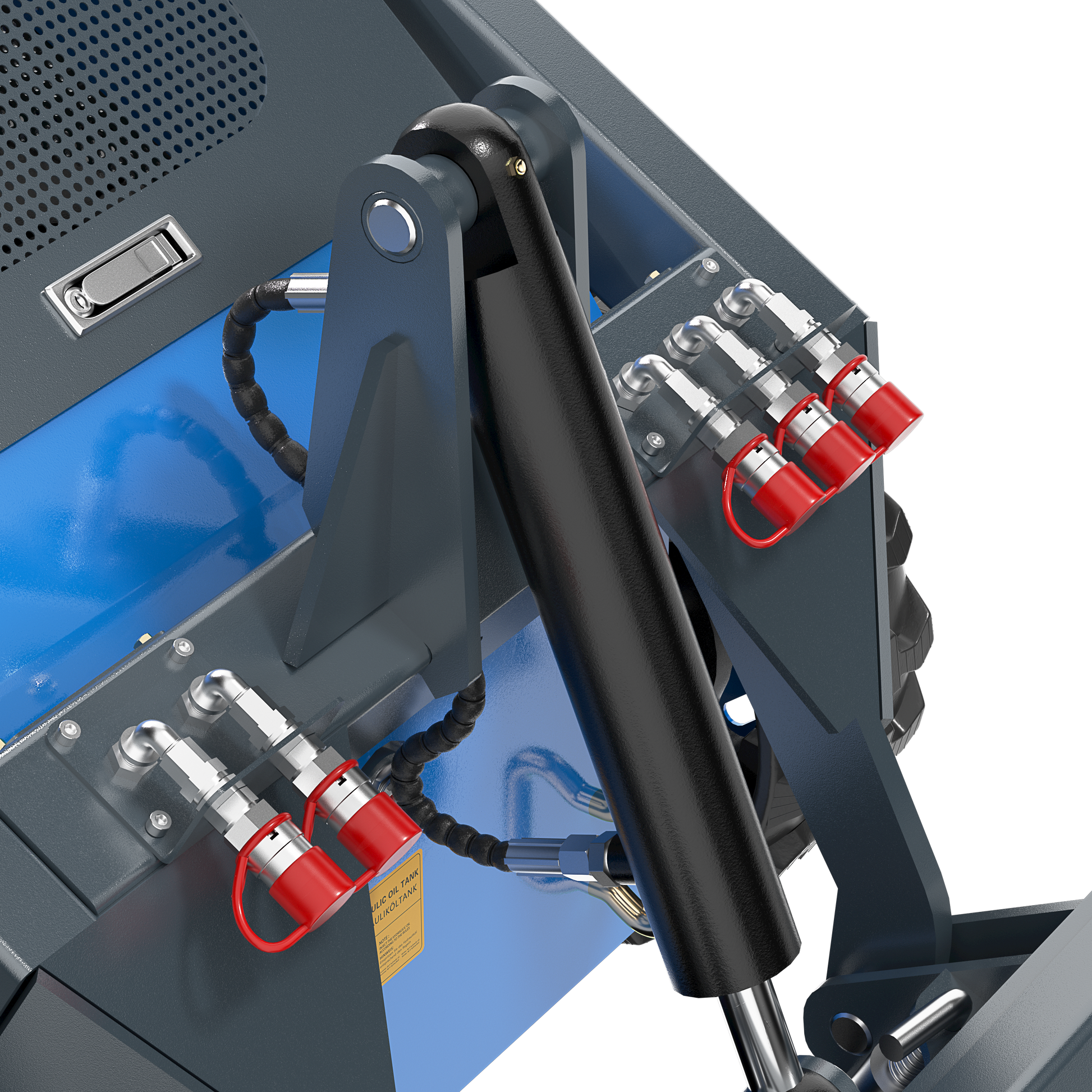

Hydraulic System EU / US
Main pump Tianjin Walk / Tianjin Walk
Multi-way valve Tengfei / Tengfei
Travel motor Deston / Deston
