Compact, powerful, versatile!

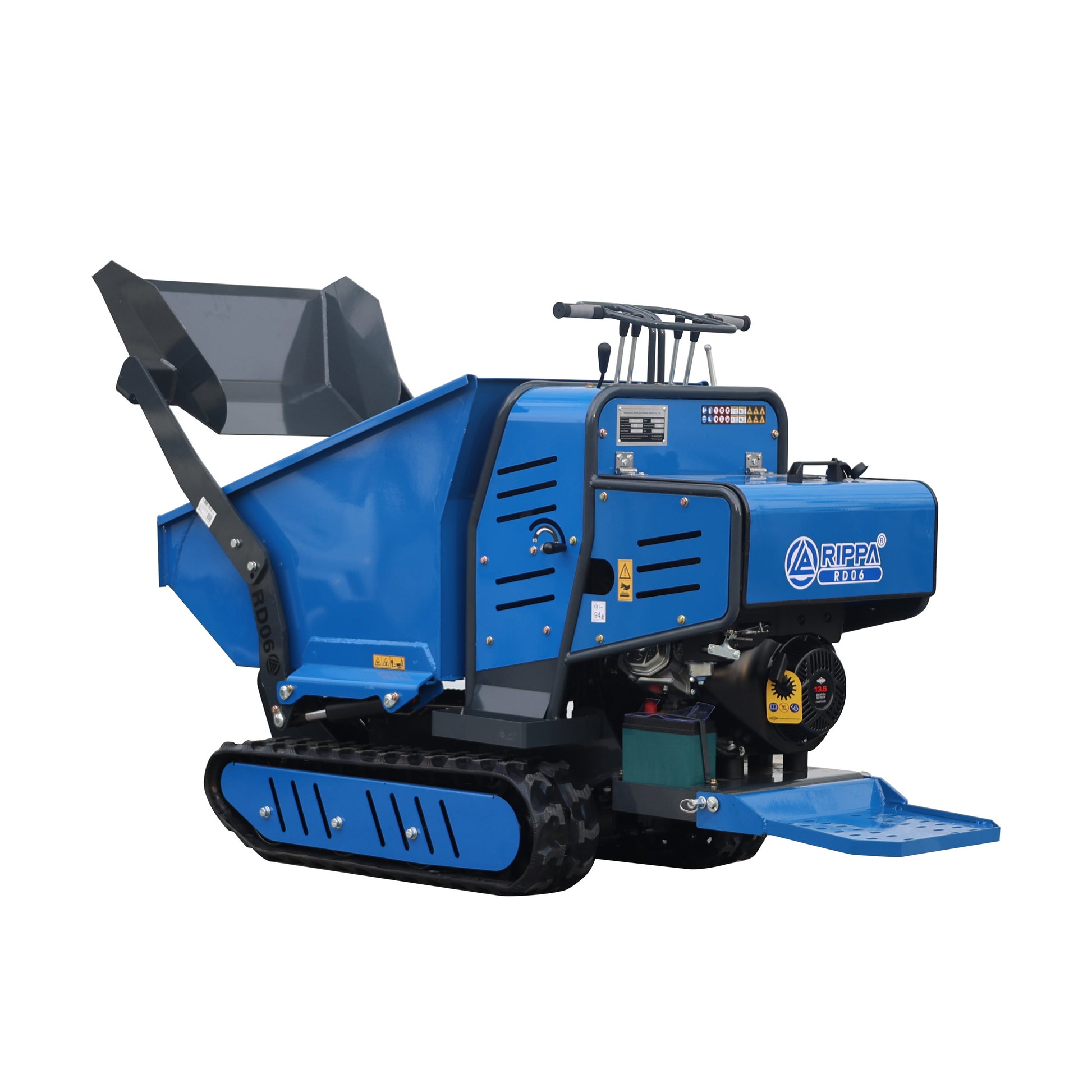

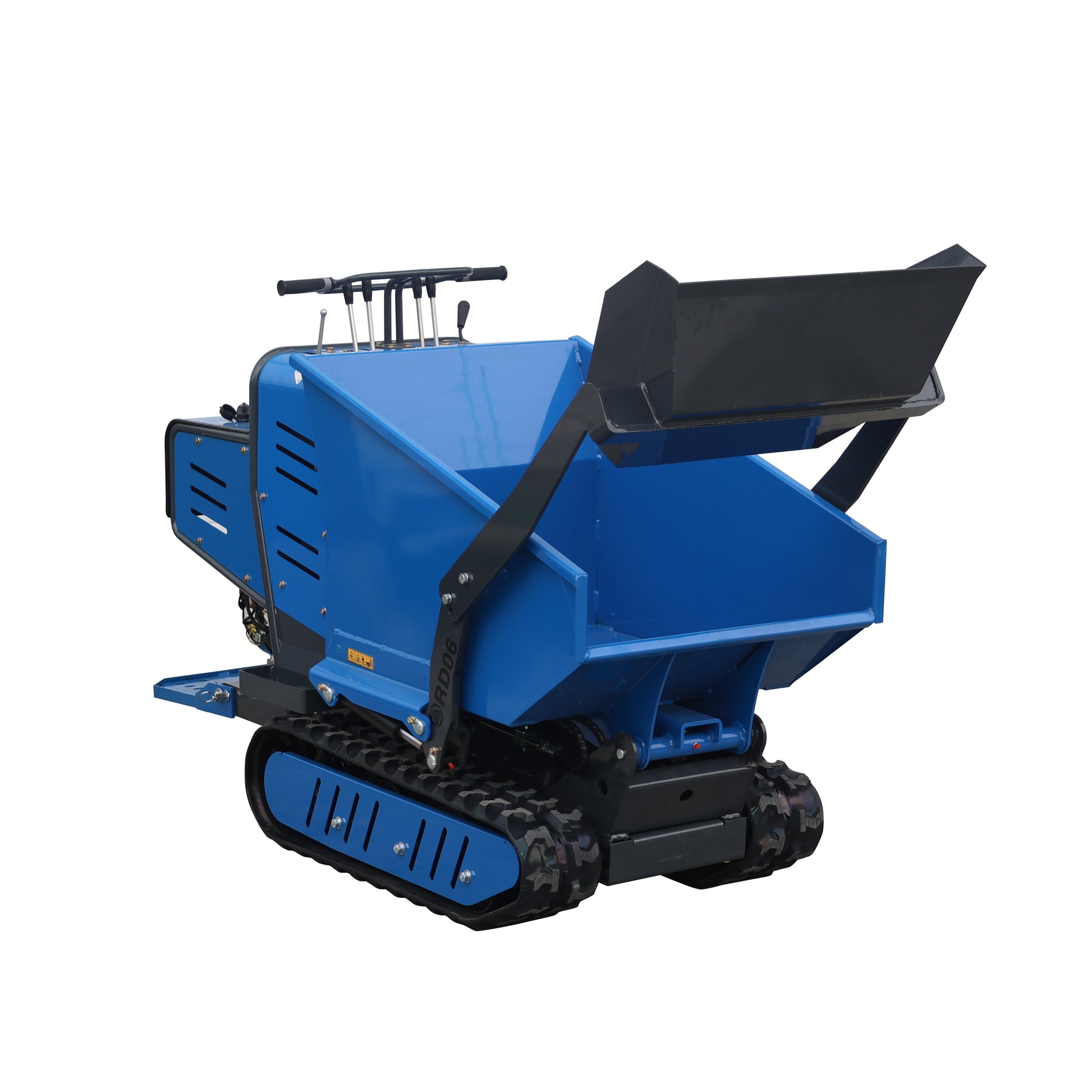

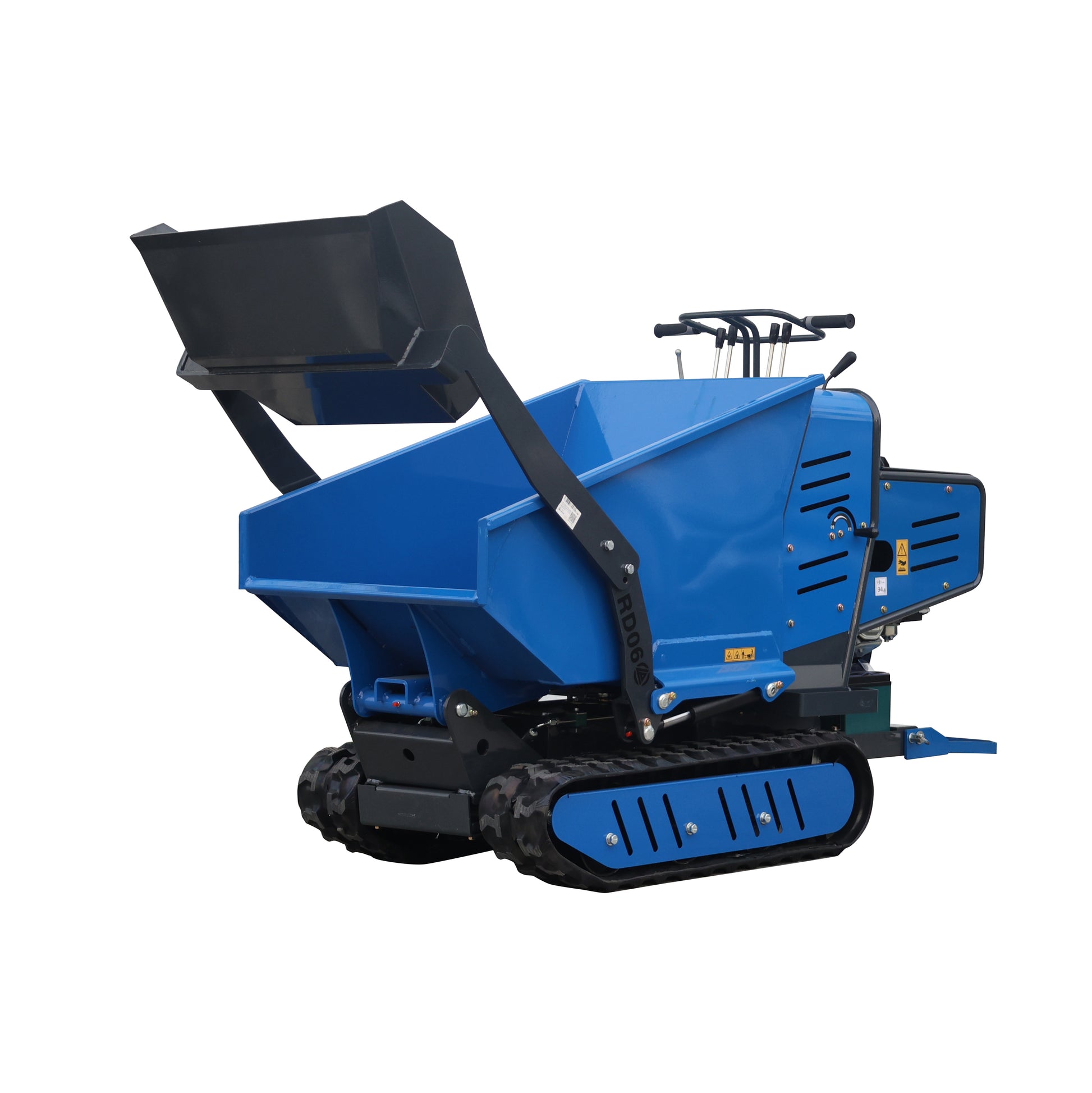

Tracked Dumper RD06 is the ideal solution for construction work, earthmoving tasks, and material transport in rough terrain. Thanks to its compact dimensions, high stability, and easy operation, it delivers high efficiency even in confined spaces.

Whether transporting bulk materials, unloading, or working on uneven ground – the RD06 is easy to operate and low-maintenance.

RD06 – Technical Specifications

Basic Performance Data EU / US
Operating weight 518 kg / 1139.6 lb
Bucket volume 0.03 m³ / 1.06 ft³
Dump bed capacity 0.27 m³ / 9.5 ft³
Rated load capacity 350 kg / 770 lb
Travel speed (low / high) 0–4 km/h / 0–2.48 mph
Gradeability 30 % / 30 %
Ground pressure 19.55 kPa / 408.4 psf
Maximum dumping height 356 mm / 14 in
Maximum dumping reach 272 mm / 10.7 in
Minimum ground clearance 70 mm / 2.8 in
Engine EU / US
Manufacturer Briggs & Stratton
Model XR2100
Maximum power 13.6 PS (10 kW) / 13.4 hp
Maximum speed 3600 rpm / 3600 rpm
Displacement 0.42 L / 0.11 gal
Number of cylinders 1 / 1
Cooling Water-cooled
Engine oil capacity (change) 1.2 L / 0.32 gal
Fuel type Gasoline
Fuel grade 92#
Theoretical fuel consumption 0.8–1.2 L/h
Dimensions EU / US
Transport length 1670 mm / 65.7 in
Transport width 780 mm / 30.7 in
Transport height 1200 mm / 47.2 in
Dump bed width 700 mm / 27.6 in
Hydraulic System EU / US
Main pump – Type / Model Gear pump GP51044SLP
Main pump – Manufacturer Tianjin Walking
Max. flow rate main pump 14.4 + 14.4 L/min
Multi-way valve – Manufacturer Tengfei
Setting pressure (rated) 16 MPa
Maximum setting pressure 18 MPa
Travel hydraulic motor – Type Deston BM5-200
Travel hydraulic motor – Manufacturer Deston
Displacement travel hydraulic motor 200
