Rippa

R32 PRO

R32 PRO

Regular price 24.765,00 EUR
Regular price Sale price 24.765,00 EUR
Sale Sold out
excl. MwSt

In stock

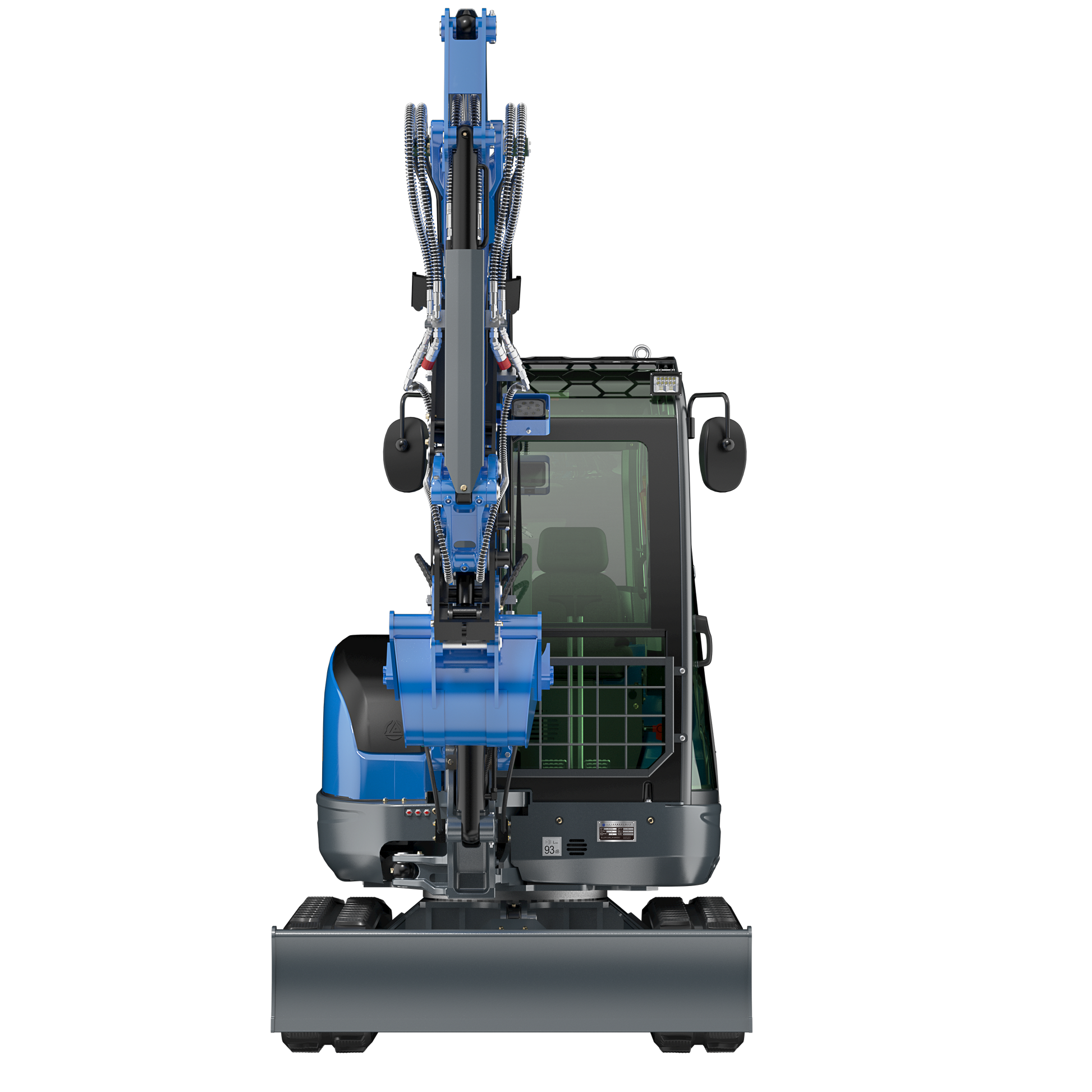

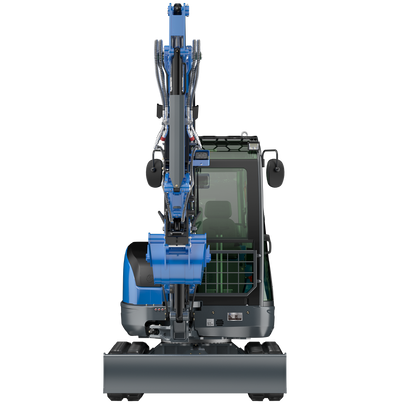

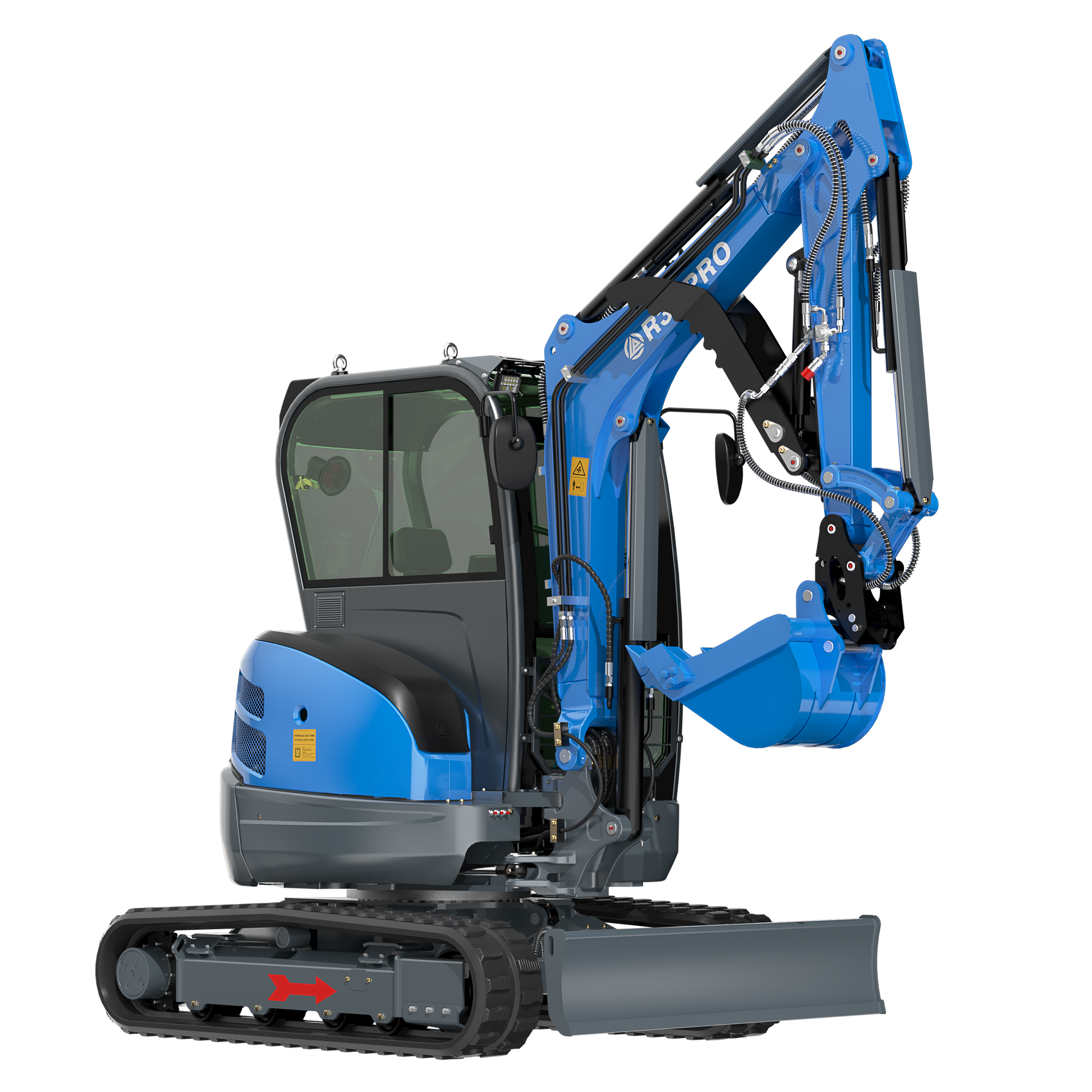

The Rippa R32 PRO is a high-performance, professional mini excavator, ideal for large construction projects, deep excavation work, and demanding earthmoving operations. With its combination of massive power, precise control, and robust design, it’s the perfect choice for professionals who value efficiency and durability.

Powered by a strong Kubota diesel engine, the R32 PRO delivers outstanding performance with an operating weight of 3,375 kg, a digging depth of 2.83 meters, and a digging force of 27 kN – ensuring maximum productivity for every task.

Standard features include:

✔ 40 cm toothed bucket for precise digging
✔ Powerful Kubota diesel engine (Euro 5 certified)
✔ High digging force for heavy-duty excavation work
✔ Robust design for long-lasting professional use

Additional accessories, such as various buckets, grapples, or quick couplers, can be found in the Accessories section on our website.

R32 PRO – Specifications

Basic Parameters EU / US
Operating weight 3200 kg / 7055 lb
Bucket capacity 0.08 m³ / 2.83 ft³
Travel speed 0–3.2 km/h / 0–1.99 mph
Gradeability 30 % / 30 %
Ground pressure 36 kPa / 5.22 psi
Max. digging force 27.0 kN / 27.0 kN
Max. digging radius 4831 mm / 190.2 in
Max. digging depth 2827 mm / 111.3 in
Max. digging height 3181 mm / 125.3 in
Max. unloading height 2500 mm / 98.4 in
Max. slewing angle 120° / 120°
Track (Width×Pitch×Links) 300 mm×100 mm×42 / 11.8 in×3.9 in×42
Engine EU / US
Brand Kubota / Kubota
Model V1505 / V1505
Max. horsepower 25.0 PS / 25.0 hp
Max. power 18.5 kW / 18.5 kW
Max. speed 2300 rpm / 2300 rpm
Displacement 1.498 L / 0.40 gal
No. of cylinders 4 / 4
Cooling Water-cooled / Water-cooled
Engine oil 4.5 L / 1.19 gal
Fuel Diesel / Diesel
Fuel grade No. 0 / -10 / No. 0 / -10
Theoretical consumption 2.0–2.2 L/h / 0.53–0.58 gal/h
Dimensions EU / US
Transport length 3200 mm / 126.0 in
Transport width 1500 mm / 59.1 in
Transport height 2500 mm / 98.4 in
Ground clearance 480 mm / 18.9 in
Bucket width 650 mm / 25.6 in
Boom length 2000 mm / 78.7 in
Arm length 1200 mm / 47.2 in
Blade width 1500 mm / 59.1 in
Hydraulic System EU / US
Main pump type/model CBGJ2120 / CBGJ2120
Main pump brand Tianjin Walking / Tianjin Walking
Max. flow 40 L/min / 40 L/min
Control valve 2–3 joints / 2–3 joints
Control valve brand Tengfei / Tengfei
Rated pressure 20 MPa / 20 MPa
Max. pressure 22 MPa / 22 MPa
Travel motor BM5-500 / BM5-500
Travel motor brand Paiyi / Paiyi
Travel motor displacement 500 / 500
Slewing motor BM2-500 / BM2-500
Slewing motor displacement 500 / 500
